Jeep Wrangler JK 2007-2018, TeraFlex Dana 30/44 High Steer System with HD Tie Rod Kit and HD Drag Link Flip Kit

A lifted JK with a 4in or greater lift runs into the same steering problems: low-hanging tie rod, shimmy and geometry that fights back. The TeraFlex Dana 30/44 High Steer System restores correct steering geometry for the highway and maximizes steering component ground clearance. High Steer Knuckles raise the tie rod by more than 1-1/8in. Cast ductile iron is reinforced where it is stressed. The flipped HD forged drag link, 50% stiffer than factory, the track bar drop bracket and the frame braces round out the system. Install it, and the front end is both stronger and higher.

Key Features

• High Steer Knuckles maintain correct steering geometry; tie rod ground clearance increased by more than 1-1/8in
• Cast from heavy-duty ductile iron and reinforced in areas prone to stress and deflection
• HD forged drag link, 50% stiffer than factory, flipped over the knuckle
• Front upper track bar drop bracket and frame braces reduce frame movement
• Compatible with all factory and aftermarket axle shafts, ball joints, wheel hubs and tie rods
• Does not affect operation of factory stability and traction control systems including ESP and ABS

Specifications

• Lift height: 4-6in
• Front axles: Dana 30 or Dana 44

Fitment

• Jeep Wrangler JK 2007-2018 (2-door and 4-door)

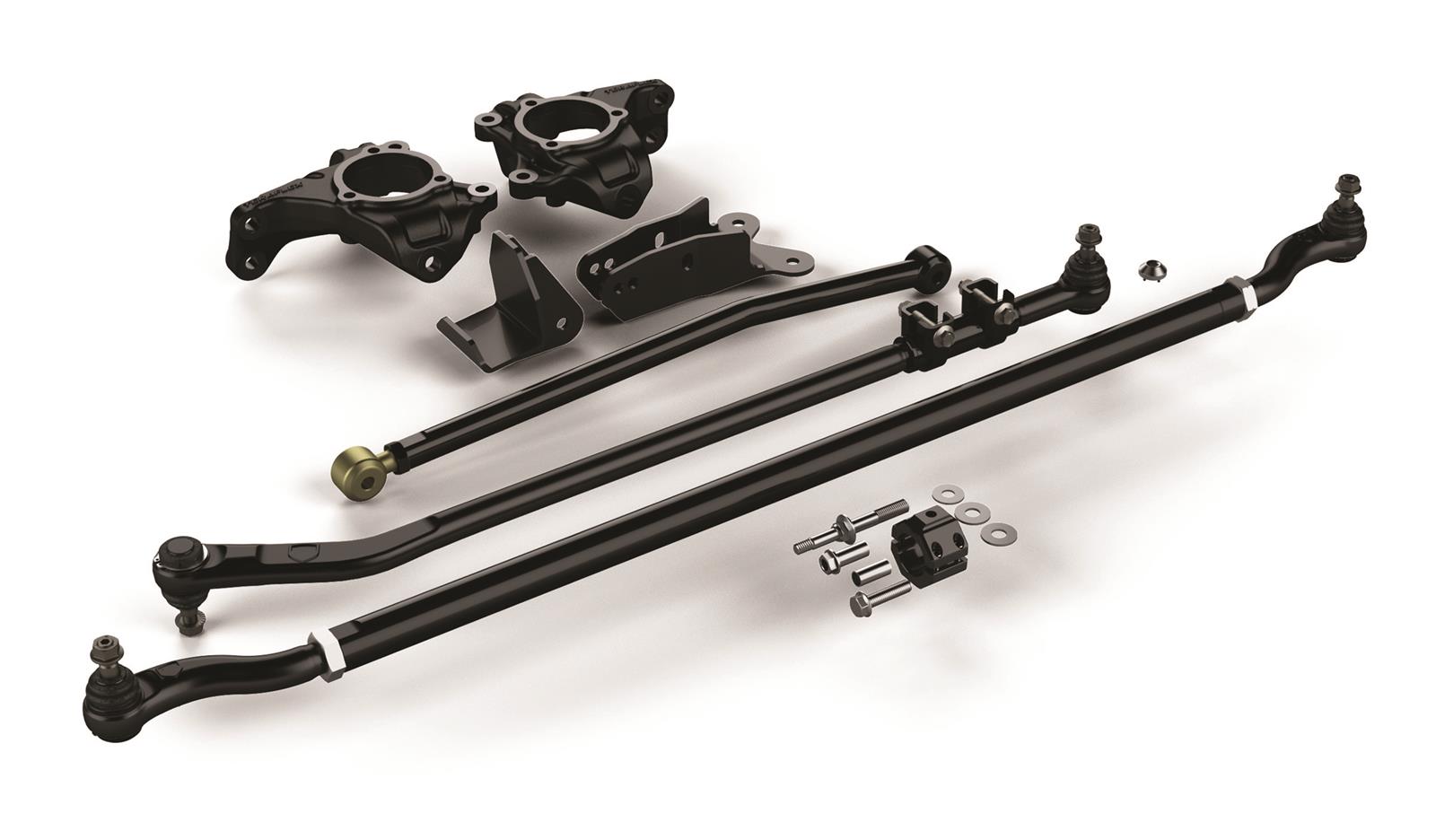

In the Box

• High Steer Knuckle Pair (4-6in lift) (4390870)
• Track Bar Drop Bracket and Frame Brace Kit, front upper (4-6in lift) (1600444)
• HD Chromoly Tie Rod Kit (0-6in lift) (1853910) with pressed-in joints
• Steering stabilizer relocation kit for 1-5/8in HD tie rod (1123160)
• HD ball joint adjusting tool
• HD Forged Drag Link Flip Kit (4-6in lift) (1853930)
• All necessary hardware

MPN 4391000 · UPC 843885037842
