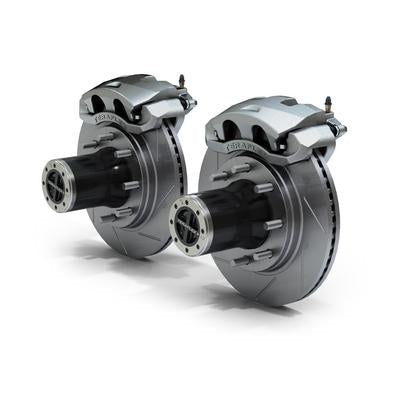

Jeep Wrangler JK 2007-2018, TeraFlex Dana 30/44 Front Axle 8-Lug Locking Hub Conversion Kit, Slotted Big Brakes

A Wrangler JK on big tires puts heavy loads on the front wheel bearings and the 5-lug flange, and a front driveline failure at speed ends the trip. Locking hubs and a stronger wheel pattern address both.

This TeraFlex kit moves the inner and outer wheel bearings farther apart to cut bearing load. The bearings ride on a forged 4140 chromoly spindle, the 8x6.5 in bolt pattern adds wheel-to-flange strength over 5 lugs, and the hubs disengage for highway use or flat towing. The SlimLock hub design also seals the OEM wheel speed sensors from mud and rocks so ABS and ESP data keeps flowing.

Plan on a full front axle conversion: swap the hubs, spindles and stub shafts, add the slotted big brakes, and you have a front end set up for the 8-lug pattern.

Key Features

• Greater spacing between the inner and outer wheel bearings reduces bearing load
• Forged 4140 chromoly spindle uses readily available bearings and seals
• Forged 4340 chromoly 35-spline stub shafts with high-surface area engagement
• Hubs disengage for highway use or flat towing
• Hub design seals the OEM wheel speed sensors from mud, rocks and trail hazards
• Slotted rotor big brake kit included in the kit

Specifications

• Wheel bolt pattern: 8x6.5 in
• Axle: Dana 30 or Dana 44, front

Fitment

• Jeep Wrangler JK 2007-2018 (2-door and 4-door)

In the Box

• Front wheel hubs, pair
• Front spindles, pair
• Stub shafts, pair
• Front big brake kit with slotted rotors
• All necessary hardware

MPN 3034413 · UPC 843885037149
