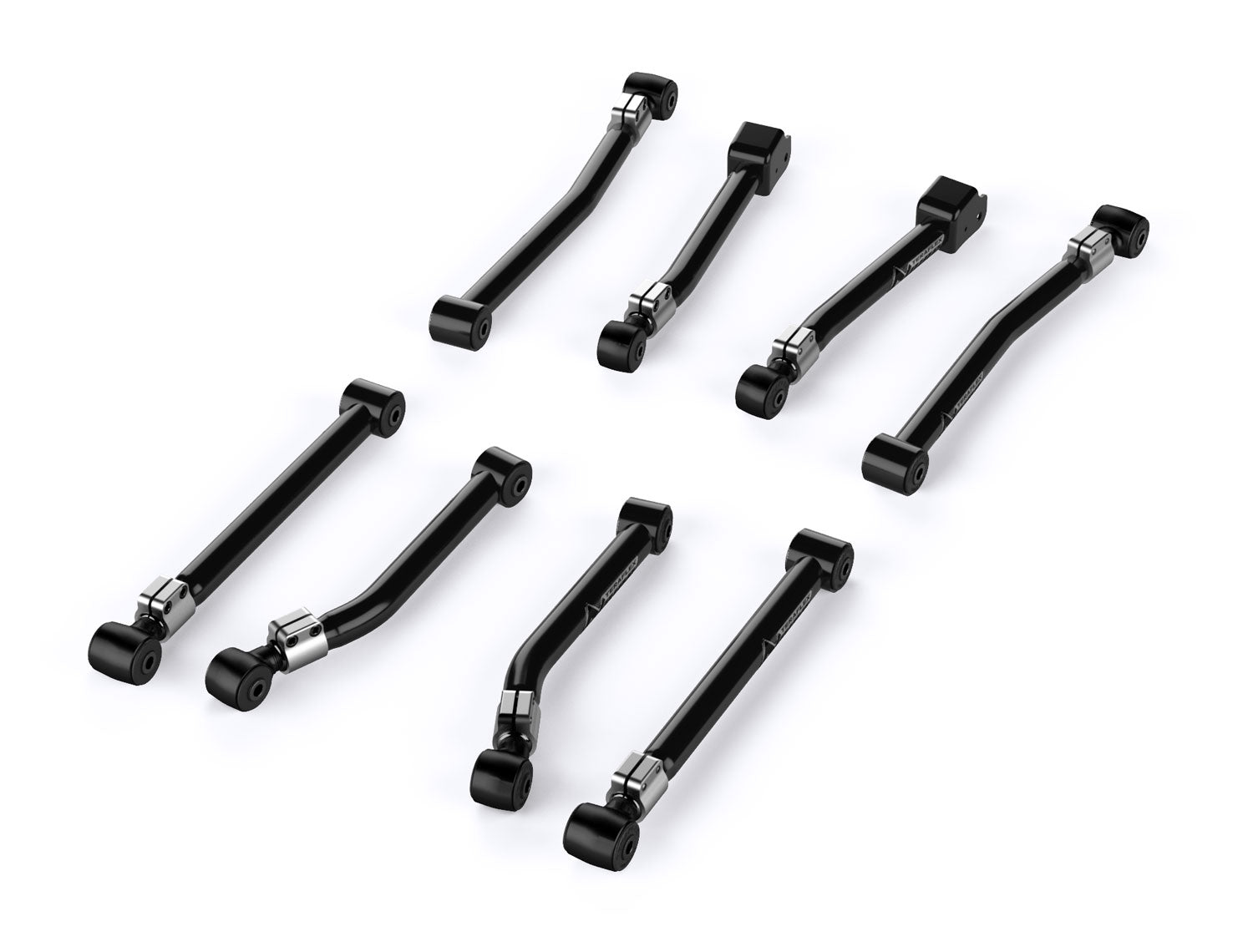

Jeep Wrangler JK 2007-2018, TeraFlex Alpine Short Arm Kit, 8-Arm, 2-4in Lift

A lifted JK pulls the axles out of alignment, and the factory arms cannot adjust them back. The TeraFlex Alpine Short Arm Kit gives complete alignment adjustability with a full set of eight arms for 2-4 in lifts. The arms bolt to the factory control arm mounting brackets, and maintenance-free, factory-style bushings give good NVH damping and ride quality. The kit covers the front upper, front lower, rear upper and rear lower positions, so every arm is replaced at once. Bolt on the set, align the axles, and drive.

Key Features

• Complete alignment adjustability and dependability
• Bolts to the factory control arm mounting brackets
• Maintenance-free, factory-style bushings with NVH damping and ride quality
• Can be added to any existing suspension lift

Specifications

• Lift height: 2-4 in
• Arm tube: 42mm x 4mm
• Front upper (1415520): factory length 18-3/4 in, min 18-1/2 in, max 19-3/4 in; 12mm bolts; OEM axle bushing, frame bushing 611014
• Front lower (1415500): factory length 22-5/8 in, min 22-3/4 in, max 24 in; 14mm bolts; bushing 611011
• Rear upper (1415560): factory length 17-7/16 in, min 17-5/8 in, max 18-7/8 in; 14mm bolts; bushing 611012
• Rear lower (1415540): factory length 19-3/4 in, min 19-3/4 in, max 21-1/16 in; 14mm bolts; bushing 611011

Fitment

• Jeep Wrangler JK 2007-2018 (2-door and 4-door)

In the Box

• Alpine Short Arm Pair, Front Upper (1415520)
• Alpine Short Arm Pair, Front Lower (1415500)
• Alpine Short Arm Pair, Rear Upper (1415560)
• Alpine Short Arm Pair, Rear Lower (1415540)

MPN 1415610 · UPC 843885034056
