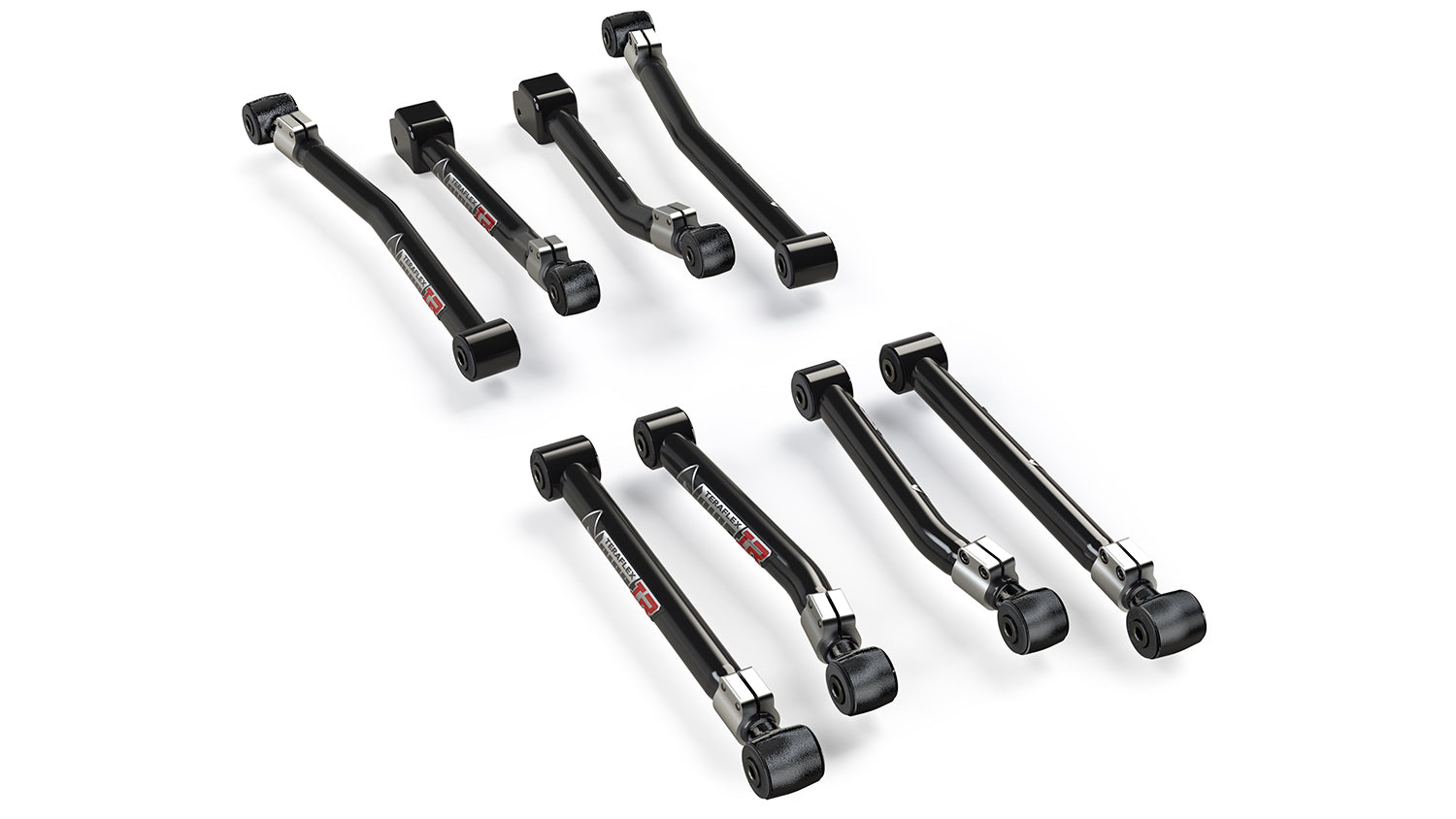

Jeep Wrangler JK 2007-2018, TeraFlex Alpine IR Short Arm Kit, 8-Arm, 2-4in Lift

A JK lifted 2 to 4 inches needs control arms that can pull the axles back into position, and bolting on a full long arm system is more than that lift calls for. The TeraFlex Alpine IR short arm kit gives complete alignment adjustability with four adjustable arm pairs that bolt to the factory control arm mounting brackets. Maintenance-free IR bushings rotate without restriction and damp noise and vibration, so the ride improves on and off the road. Install the pairs at all four corners, set alignment, and go. The kit can be added to any existing suspension lift.

Key Features

• Complete alignment adjustability for 2-4in lifts
• Bolts to the factory control arm mounting brackets
• Maintenance-free IR bushings with unrestricted rotation and flex and NVH damping
• Can be added to any existing suspension lift

Specifications

• Lift height: 2-4in
• Front upper pair (1415570): tube 42 x 4mm; factory length 18-3/4in; minimum 18-1/2in; maximum 19-3/4in; bolts 12mm; IR bushings OEM (axle) and 611017 (frame)
• Front lower pair (1415580): tube 42 x 4mm; factory length 22-5/8in; minimum 22-3/4in; maximum 24in; bolts 14mm; IR bushings 611015
• Rear upper pair (1415590): tube 42 x 4mm; factory length 17-7/16in; minimum 17-5/8in; maximum 18-7/8in; bolts 14mm; IR bushings 611016
• Rear lower pair (1415600): tube 42 x 4mm; factory length 19-3/4in; minimum 19-3/4in; maximum 21-1/16in; bolts 14mm; IR bushings 611015

Fitment

• Jeep Wrangler JK 2007-2018 (2-door and Unlimited 4-door)

In the Box

• Alpine IR short arm pair, front upper (1415570)
• Alpine IR short arm pair, front lower (1415580)
• Alpine IR short arm pair, rear upper (1415590)
• Alpine IR short arm pair, rear lower (1415600)

MPN 1415611 · UPC 843885050001
