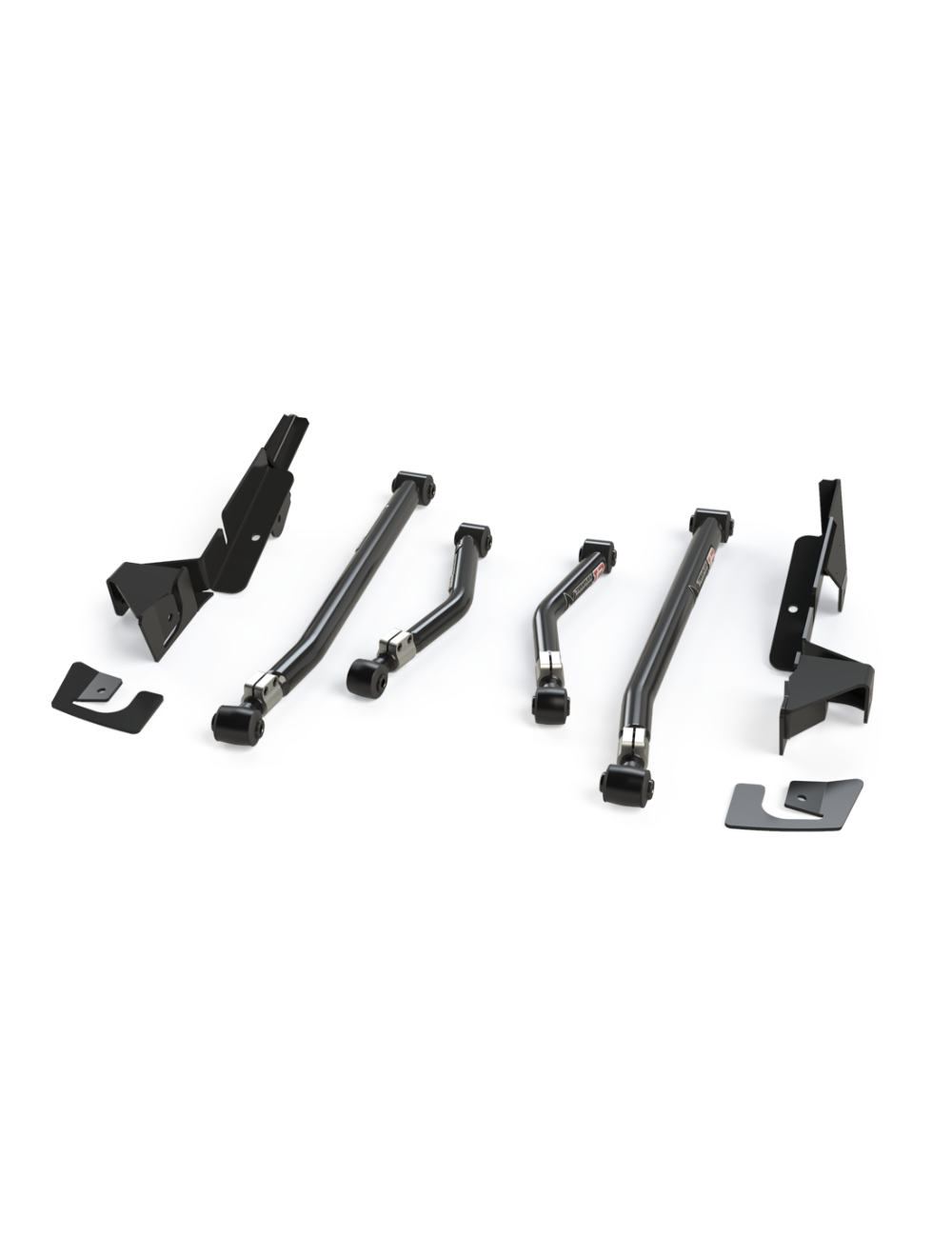

Jeep Wrangler JK 2007-2018, TeraFlex Alpine IR Rear Long Control Arm Kit with Brackets, 3-6in Lift

A lifted JK that still runs stock-length rear control arms runs out of adjustment quickly. The axle drifts out of position, the bushings bind at full droop, and every trip carries the worry that the suspension is fighting the lift. The TeraFlex Alpine IR rear long arm kit gives the rear axle adjustable long control arms with IR bushings that rotate without restriction and damp noise and vibration, with no maintenance. The included Alpine Long Arm Brackets move the frame-end mounting points back toward factory orientation, which reduces bushing stress during droop and shock loads. Install the brackets and arms, set alignment, and the rear axle stays put.

Key Features

• IR bushings provide unrestricted rotation and flex, with NVH damping and no maintenance
• Alpine Long Arm Brackets (included) reposition the frame-end mounting points to restore near-factory orientation
• Upper and lower mounts combined in each CAD-engineered bracket, which simplifies installation and keeps a factory appearance
• Complete alignment adjustability for 3-6in lifts
• Can be added to an existing suspension lift

Specifications

• Lift height: 3-6in
• Rear upper arm (1315590): tube 1-5/8 x 0.157in (42 x 4mm); factory length 17-7/16in; minimum length 20in; maximum length 21-1/2in; both ends 9/16in (14mm) bolt; thread 1-1/4in-12 UNF
• Rear lower arm (1315600): tube 2 x 0.197in (50 x 5mm); factory length 19-3/4in; minimum length 35-3/4in; maximum length 37-1/4in; both ends 9/16in (14mm) bolt

Fitment

• Jeep Wrangler JK 2007-2018 (2-door and 4-door)

In the Box

• Alpine IR rear upper and lower long control arms
• Alpine Long Arm Brackets

MPN 1957200 · UPC 843885074106
