Jeep Wrangler JK 2007-2018, TeraFlex Alpine IR Long Arm and Bracket Kit, 8-Arm, 3-6in Lift

A lifted JK on stock-length arms loses alignment adjustment at every corner, and bushings that bind at full droop make the ride harsh. The TeraFlex Alpine IR kit replaces all eight control arms with adjustable long arms that use maintenance-free IR bushings, which rotate without restriction and damp noise and vibration. The CAD-engineered brackets combine the upper and lower mounts in each bracket, which simplifies installation and keeps a factory appearance, and rear gussets add strength. Install the brackets, bolt in the four arm pairs, and set alignment. The kit can be added to any existing suspension lift.

Key Features

• Complete alignment adjustability for 3-6in lifts
• Maintenance-free IR bushings with unrestricted rotation and flex and NVH damping
• CAD-engineered brackets combine upper and lower mounts in each bracket
• Rear gussets included
• Can be added to any existing suspension lift

Specifications

• Lift height: 3-6in
• Front upper pair (1315570): tube 42 x 4mm; factory length 18-3/4in; minimum 27-3/8in; maximum 28-7/8in; axle bolt 12mm; frame bolt 14mm; IR bushings OEM (axle) and 611019 (frame)

Fitment

• Jeep Wrangler JK 2007-2018 (2-door and Unlimited 4-door)

In the Box

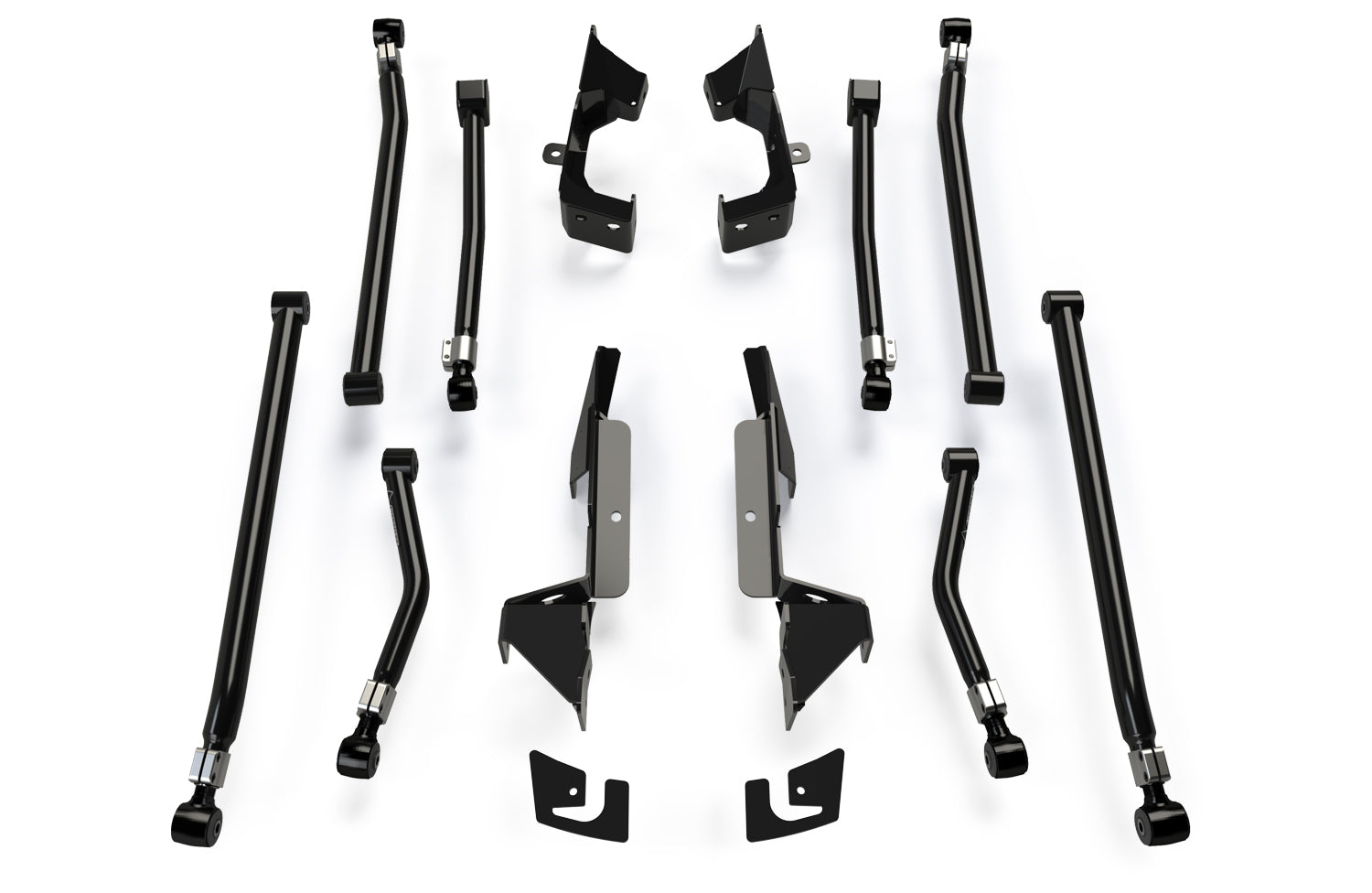

• Alpine IR Long Arm Kit, 8-arm (1415612): front upper pair, front lower pair, rear upper pair, rear lower pair
• Long Arm Bracket Kit (1957000): front brackets, rear gussets
• All necessary hardware

MPN 1315011 · UPC 843885051336
