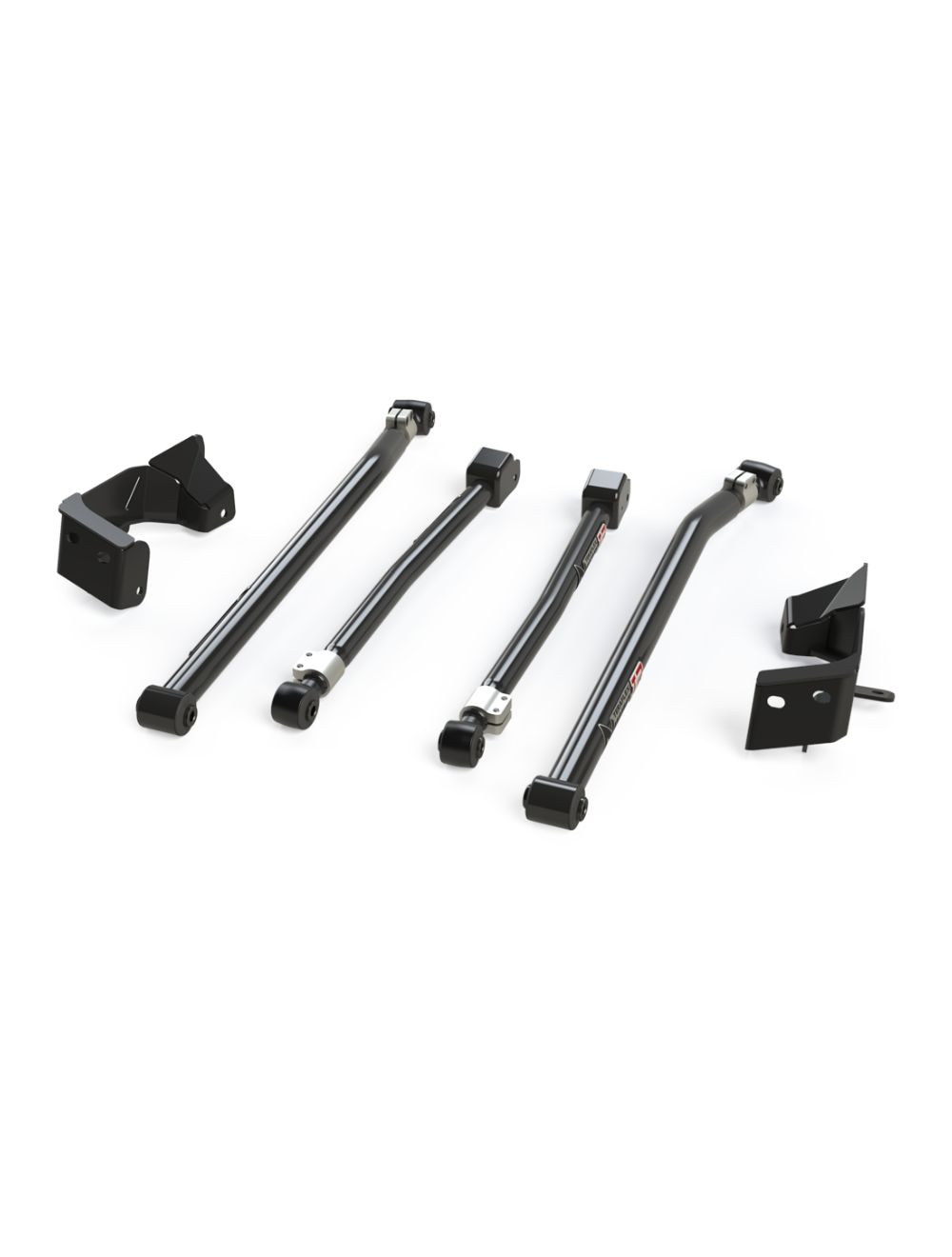

Jeep Wrangler JK 2007-2018, TeraFlex Alpine IR Front Long Control Arm Kit with Brackets, 3-6in Lift

A lifted JK that still runs stock-length control arms runs out of adjustment quickly. The axle drifts out of position, the bushings bind at full droop, and every trip carries the worry that the suspension is fighting the lift. The TeraFlex Alpine IR front long arm kit gives the front axle adjustable long control arms with IR bushings that rotate without restriction and damp noise and vibration, with no maintenance. The included Alpine Long Arm Brackets move the frame-end mounting points back toward factory orientation, which reduces bushing stress during droop and shock loads. Bolt on the brackets, install the arms, and set alignment with the adjustable length. The front axle then stays where it belongs over rough ground.

Key Features

• IR bushings provide unrestricted rotation and flex, with NVH damping and no maintenance
• Alpine Long Arm Brackets (included) reposition the frame-end mounting points to restore near-factory orientation
• Upper and lower mounts combined in each CAD-engineered bracket, which simplifies installation and keeps a factory appearance
• Complete alignment adjustability for 3-6in lifts
• Can be added to an existing suspension lift

Specifications

• Lift height: 3-6in
• Front upper arm (1315570): tube 1-5/8 x 0.157in (42 x 4mm); factory length 18-3/4in; minimum length 27-3/8in; maximum length 28-7/8in; axle end bolt 7/16in (12mm); frame end bolt 9/16in (14mm); thread 1-1/4in-12 UNF
• Front lower arm (1315580): tube 2 x 0.197in (50 x 5mm); factory length 22-5/8in; minimum length 33-3/4in; maximum length 35-1/4in; both ends 9/16in (14mm) bolt; thread 1-1/4in-12 UNF

Fitment

• Jeep Wrangler JK 2007-2018 (2-door and 4-door)

In the Box

• Alpine IR front upper and lower long control arms
• Alpine Long Arm Brackets

MPN 1957100 · UPC 843885074090
