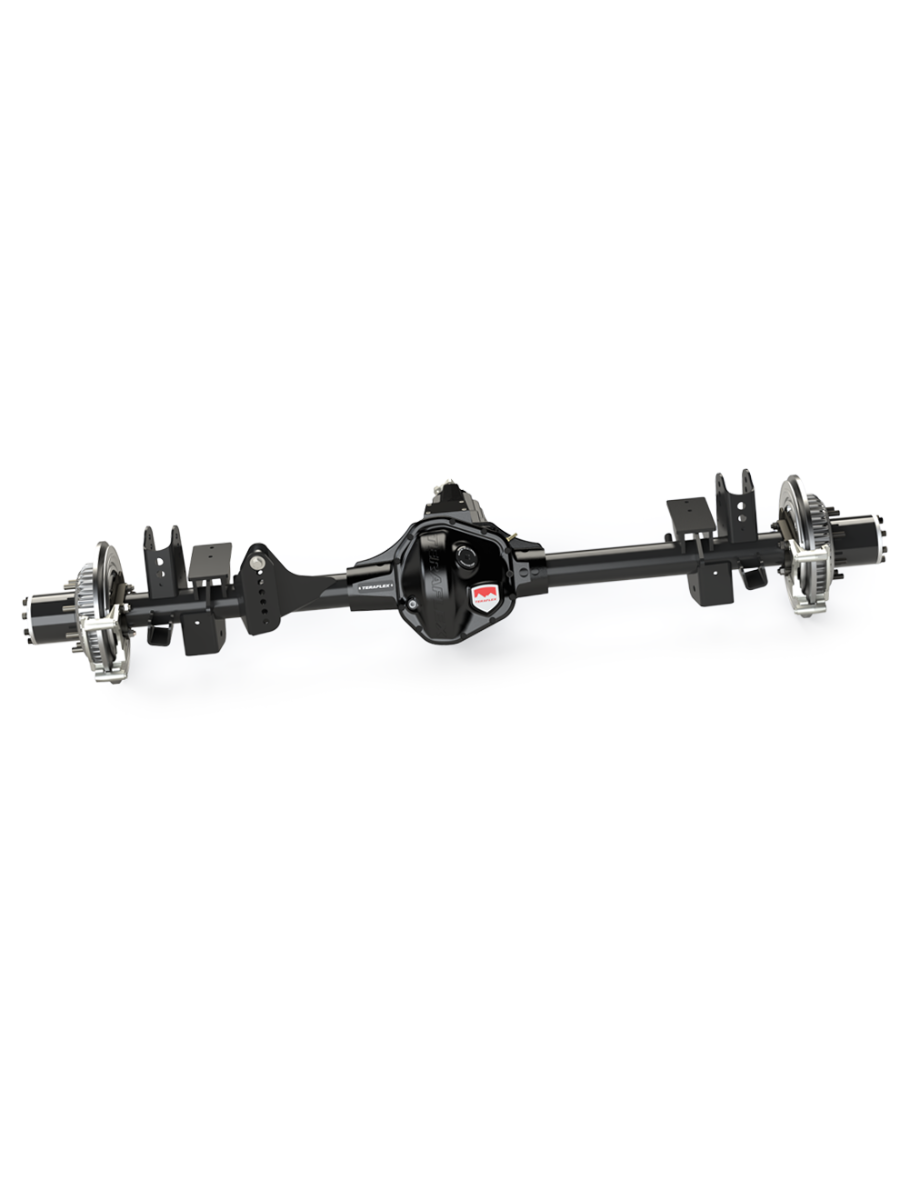

Jeep Wrangler JK 2007-2018, TeraFlex 70in CRD60 HD Rear Axle with Full-Float, Coilover Brackets, 4-6in Lift Info & Specs
Fitting a coilover system to a JK means the rear axle has to carry brackets, strike pads and mounts that the stock housing never had. Fabricating them is slow, and guessing at the details is how a big build goes wrong.
This TeraFlex CRD60 HD Rear Axle is made to integrate with TeraFlex JK coilover kits. It has integrated coilover mount brackets, bump-stop strike pads, high-clearance lower control arm brackets and reinforced upper control arm mounts to handle the loads and articulation of a TeraFlex/Falcon coilover system.
It is 70in wide and bolts into JK models running a TeraFlex coilover system. Pick Super 60 gear ratio 4.30, 4.88 or 5.38, and plan on about six hours to install.
Key Features
- 70in wide CRD60 HD full-float rear axle
- Integrated coilover mount brackets and bump-stop strike pads
- High-clearance lower control arm brackets and reinforced upper control arm mounts
- Direct bolt-on for JK models with a TeraFlex coilover system
Specifications
- Axle width: 70in
- Lift range: 4-6in
- Super 60 gear ratios: 4.30, 4.88, 5.38, or no ring and pinion
- Install time: 6 hours
Fitment
- Jeep Wrangler JK 2007-2018
MPN 3428430 (4.30) · UPC 843885076599
MPN 3428488 (4.88) · UPC 843885076605
MPN 3428538 (5.38) · UPC 843885076612
MPN 3480000 (No R&P) · UPC 843885076582
