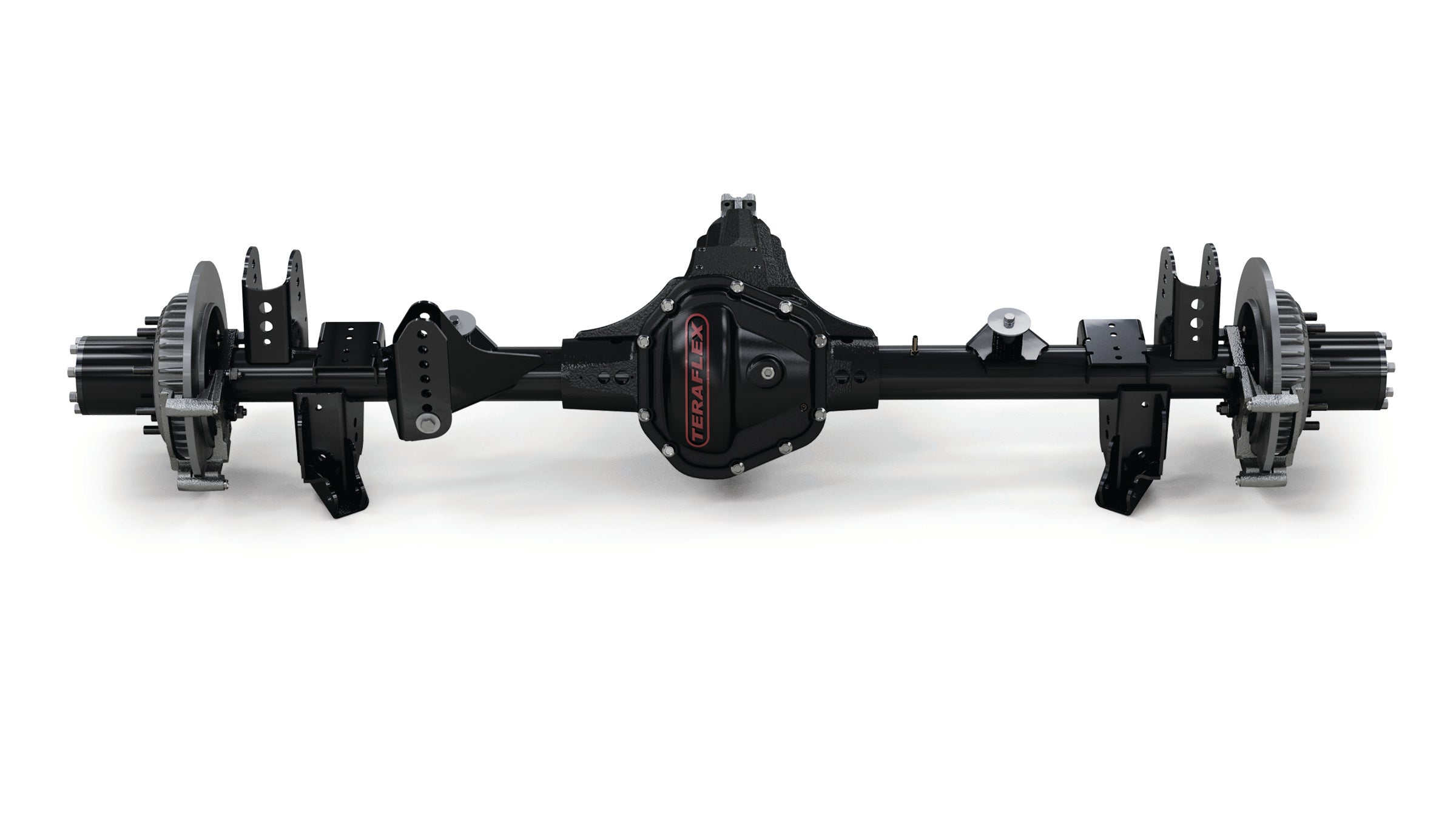

Jeep Wrangler JK 2007-2018, TeraFlex 67in TeraCRD60 HD Rear Axle with Full-Float, 4-6in Lift

A bent or broken rear axle ends a trip, and the stock rear has weak areas on a built JK. The TeraFlex 67 in Tera CRD60 HD Rear Axle with Full-Float is a bolt-on replacement or upgrade for JK Wranglers, including Rubicon models. The exclusive Constant Radius Design gives high ground clearance unaffected by pinion angle adjustments. The unloaded assembly includes full-float outer axles, Super 60 bearings, inner axle shafts and sensors. Add the ring and pinion ratio, locker and carrier of your choice. The assembly is sold unloaded, so the final gear ratio, locker and carrier are the builder's choice.

Key Features

• Replaces bent, broken or damaged JK rear axles, including Rubicon models
• Constant Radius Design (CRD) gives high ground clearance unaffected by pinion angle adjustments
• Compatible with all Super 60 gear ratios for extreme duty applications
• Smooth profile surfaces, axle tubes, mount brackets and control arm bushings

Specifications

• Width: 67 in
• Axle type: Full-float
• Lift height: 4-6 in
• Assembly: Unloaded

Fitment

• Jeep Wrangler JK 2007-2018 (2-door and 4-door)

In the Box

• Spicer bearings and install kits
• Full-float axles
• 35-spline inner and outer axle shafts
• 1350 series pinion yoke
• Super 60 bearings and sensors

MPN 3470000 (P/N 3470000) · UPC 843885034841

MPN 3406538 (5.38 Ratio) · UPC 843885033714

MPN 3406488 (4.88 Ratio) · UPC 843885035190

MPN 3406430 (P/N 3406430) · UPC 843885034681
