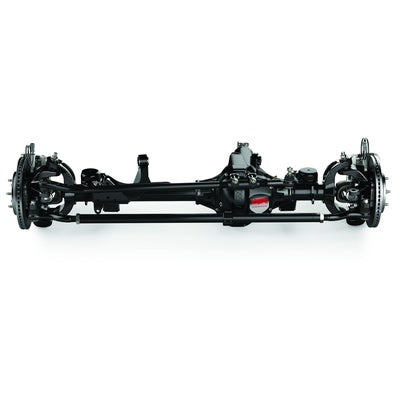

Jeep Wrangler JK 2007-2018, TeraFlex 67in Tera60 HD Front Axle with Unit Bearing, 4-6in Lift

A bent or broken front axle ends a trip, and a stock axle on a heavily lifted JK is easy to damage. The TeraFlex Tera60 HD Front Axle Assembly replaces it with a heavy-duty housing built for maximum suspension up travel and compression, including on Rubicon models. The assembly includes unit bearings, Super 60 bearings, 35-spline inner and outer axle shafts, knuckle assembly, ball joints, brakes and sensors. The unloaded assembly takes your choice of ring and pinion ratio, locker and carrier. Install it, and the front end is ready for extreme-duty gearing.

Key Features

• Heavy-duty axle housing with smooth profile surfaces, axle tubes, mount brackets, control arm bushings and forged inner knuckles
• Compatible with all Super 60 gear ratios for extreme duty applications
• Spicer bearings and install kits; Spicer HD ball joints; 1350 series pinion yoke
• 35-spline inner and outer axle shafts
• Includes HD Drag Link Flip Kit and HD Tie Rod Kit (1853905)
• Includes Front Big Brake Kit with vented rotors (4303400)

Specifications

• Axle width: 67in
• Lift height: 4-6in
• Ring and pinion, locker and carrier not included on the unloaded assembly

Fitment

• Jeep Wrangler JK 2007-2018 (2-door and 4-door)

In the Box

• Tera60 HD front axle assembly with unit bearing
• Spicer bearings and install kits
• 35-spline inner and outer axle shafts
• Spicer HD ball joints
• 1350 series pinion yoke
• HD Drag Link Flip Kit and HD Tie Rod Kit (1853905)
• Front Big Brake Kit with vented rotors (4303400)

MPN 3690000 · UPC 843885001935

MPN 3626538 (5.38 ratio) · UPC 843885034407

MPN 3626488 (4.88 ratio) · UPC 843885034674

MPN 3626430 · UPC 843885034582
