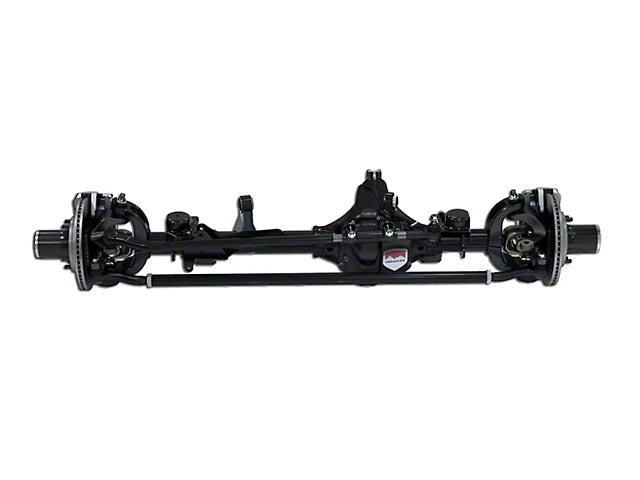

Jeep Wrangler JK 2007-2018, TeraFlex 67in Tera60 HD Front Axle with Locking Hubs, 4-6in Lift

A bent or broken front axle ends a trip, and the stock Dana 30 or 44 is a weak area on big tires. A heavy-duty axle replaces both the repair and the weak link.

The Tera60 HD front axle assembly comes unloaded, so you choose your own ring and pinion ratio, locker and carrier. It includes a SlimLock hub kit, Super 60 bearings, 35-spline inner and outer axle shafts, a knuckle assembly, ball joints, brakes and sensors. The heavy-duty housing has smooth profile surfaces, axle tubes, mount brackets, control arm bushings and forged inner knuckles, and it is compatible with all Super 60 gear ratios for extreme-duty use.

Choose the unloaded axle or a loaded version by ratio, bolt it in and align.

Key Features

• Replacement for bent, broken or damaged axles, or a bolt-on upgrade for the stock axle's weak areas
• Smooth profile heavy-duty housing with forged inner knuckles
• Compatible with all Super 60 gear ratios
• Includes SlimLock hub kit, Super 60 bearings and 35-spline axle shafts
• Includes HD drag link flip kit and HD tie rod kit and a front big brake kit with vented rotors

Specifications

• Axle width: 67 in
• Lift height: 4-6 in

Fitment

• Jeep Wrangler JK 2007-2018 (2-door and 4-door), including Rubicon

In the Box

• Spicer bearings and install kits
• 35-spline inner and outer axle shafts
• Spicer HD ball joints
• 1350 series pinion yoke
• HD drag link flip kit and HD tie rod kit (1853905)
• Front big brake kit with vented rotors (4303400)

MPN 3670000 (P/N 3670000) · UPC 843885035619

MPN 3606538 (5.38 Ratio) · UPC 843885035237

MPN 3606488 (4.88 Ratio) · UPC 843885035473

MPN 3606430 (P/N 3606430) · UPC 843885034810
