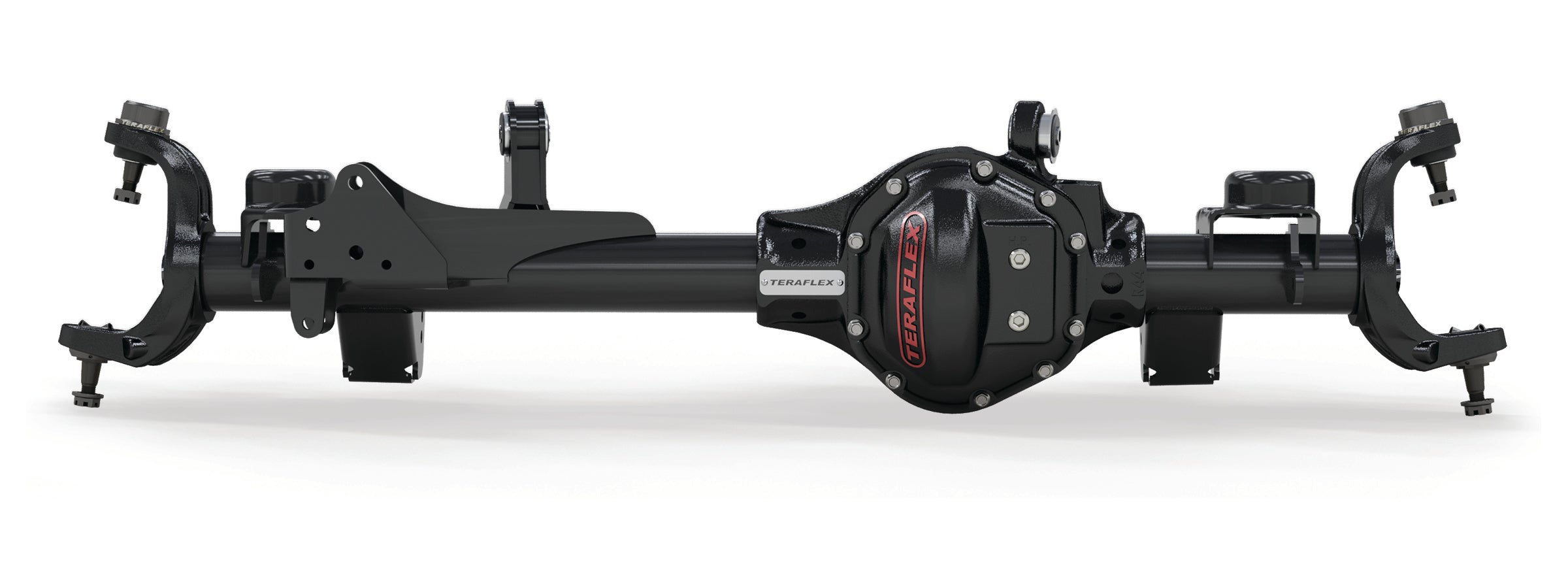

Jeep Wrangler JK 2007-2018, TeraFlex 65.5in Tera44 Rubicon HD Front Axle, 5.13 Ratio, OEM Locker, 4-6in Lift

Bent or broken front axles end trips, and a stock axle that is already near its limit is a risk when tires get bigger. A heavier replacement takes that worry off the table.

TeraFlex HD front axle housings replace bent, broken or damaged axles on JK Wrangler and Unlimited models, including Rubicon, and work as a direct bolt-on upgrade for owners who want to reinforce the weak areas of the stock axle. The bare HD housing has axle tubes, bracketry and forged inner knuckles, with inner axle seals and upper control arm bushings pre-installed.

This 65.5 in axle is supplied with a 30-spline OEM Rubicon electronic locker, a 5.13 Spicer ring and pinion and TeraFlex HD ball joints. Transfer your existing inner axle shafts and outer components (stub shafts, unit bearings, knuckle assembly, brakes, sensors) to the new housing.

Key Features

• Heavy-duty housing with axle tubes, bracketry and forged inner knuckles
• Inner axle seals and upper control arm bushings pre-installed
• 30-spline OEM Rubicon electronic locker
• Spicer ring and pinion in a 5.13 ratio
• TeraFlex HD ball joints included

Specifications

• Lift height: 4-6in
• Width (WMS to WMS): 65.5in
• Axle tube: 3.25in OD x 0.5in wall
• Axle splines: 30
• Wheel bolt pattern: 5x5
• Gear ratio: 5.13

Fitment

• Jeep Wrangler JK 2007-2018 (2-door and 4-door), including Rubicon

In the Box

• 30-spline OEM Rubicon electronic locker
• Spicer ring and pinion
• Spicer bearings and install kits
• TeraFlex HD ball joints
• Factory yoke

MPN 3545351 · UPC 843885037750
