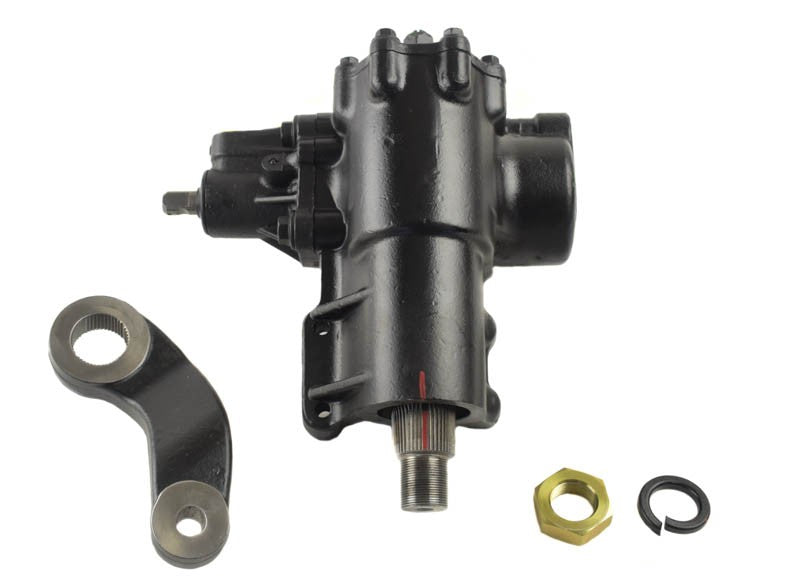

Jeep Wrangler JK PSC Big Bore XD2 Steering Gear

Jeep PSC Big Bore XD2 Steering Gear Features:

• High-quality replacement steering gear
• Offers increases steering power and reliability
• Large 80mm piston and 45mm sector shaft
• Improves turning force by up to 35%
• Slower 16:1 turning ratio for improved performance
• Can be used with a high-pressure, 1800 PSI pump
• Heavy-duty case and mounting areas
• Direct bolt-on installation
• 1-Year Manufacturer Warranty

Improved Steering Power & Heavy-Duty Capabilities

If you need more steering power for your Jeep JK, this PSC Big Bore XD2 Steering Gearbox is the solution. The PSC Big Bore XD2 is the most powerful and strongest replacement steering gearbox on the market for the Jeep JK, making it a no-brainer for any off-road enthusiast. This unit when combined with the PSC XD Pump Kit provides up to 35% more turning power over the OEM steering gearbox. This gearbox is designed to accommodate larger tire sizes, larger axles, and locking differentials without sacrificing performance. Featuring a larger sector shaft output of 45mm when installed, your Jeep will be able to handle the extra torque output without compromise.

Heavy-Duty Construction & Bolt-On Installation

The PSC Big Bore XD2 Steering Gearbox carries a larger 80mm piston assembly and can produce up 35% more turning force for your vehicle. This results in easily turning tires of up to 37 inches, making sure your heavy-duty build will function properly. Moreover, the gearbox is crafted from a heavy-duty case with premium hardware components for maximum strength and long-lasting utility. The mounting areas have also been beefed up to handle the hardcore demands of increased steering force. Installation is made simple and straightforward as this steering gearbox bolts directly to your existing mounting points. Best of all, this kit is backed by a 1-Year Manufacturer Warranty to help keep your investment protected.

RECOMMENDED INSTALLATION NOTES:

• The BIG BORE XD2 Steering Gearbox was designed to be used with a power steering pump capable of 1800 PSI.
• PSC highly recommends the use of their HIGH FLOW/HIGH-PRESSURE Pump Kits to ensure system efficiency and extend component life. These pumps operate at approximately 1800 PSI and produce 50% more volume than the OEM pump. Vehicle steering performance will be diminished if a high mileage or remanufactured component is used.
• PSC recommends the use of a power steering fluid cooler and SWEPCO 715 Power Steering Fluid.
• The larger size of the BIG BORE XD2 Steering Gearbox may prohibit the use of some aftermarket track bars.
• Pitman Arm Retaining Nut Size: 46MM
• HEMI Engine Conversions: If the AC compressor or power steering pump is located on the bottom driver side of the engine, there may be clearance issues.
• GM LS3 Engine Conversions: The alternator will need to be modified for clearance
