Jeep Wrangler JK 2007-2018, MetalCloak True Dual Rate Coils, Front, 4-Door 4.5in, 2-Door 5.5in Lift

A JK running a tall lift and big tires asks a lot of its front coils. Single-rate springs soft enough to articulate let the nose dip under a winch bumper, while stiff ones beat up the ride, and short coils can drop out of their buckets at full droop.

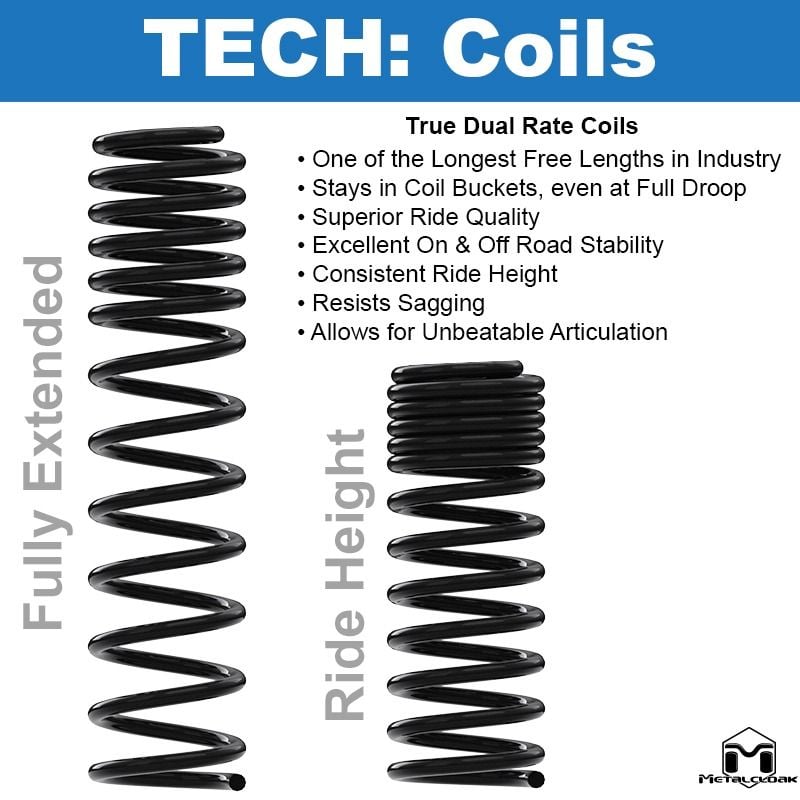

MetalCloak True Dual Rate Coils lift the front 4.5in on a 4-door JK or 5.5in on a 2-door, with a 23in free length that keeps them seated. The dual rate design acts like a lowered coil bucket for a more stable ride, holds a consistent height and resists sagging under added weight. Thermoset elastomer upper isolators made for these coils come in the kit.

Fit them, align the Jeep, and the JK sits at its new height with the bumper and winch on board.

Key Features

• Lift: 4.5in on JK 4-door, 5.5in on JK 2-door
• Long free length stays in the coil buckets at full droop
• Dual rate design for stable on and off-road handling and load carrying
• Consistent ride height, resists sagging
• Upper front coil isolators included

Specifications

• Position: Front
• Lift: 4.5in JK 4-door, 5.5in JK 2-door
• Free length: 23in
• Solid height: 9in
• Material: High-tensile chrome steel
• Isolators: Thermoset elastomer
• Coating: Black powder coat
• Install difficulty: Easy
• Install time: 1-2 hours
• Body modification: None

Fitment

• Jeep Wrangler JK 2007-2018

In the Box

• Front True Dual Rate coils (2)
• Upper front coil isolators (2)

Notes

• True Dual Rate coils are engineered to work with Duroflex control arms and 6Pak or RockSport shocks.
• Do not powder coat True Dual Rate coils. The baking process can change the coil steel and cause a loss of lift, and powder coating voids the coil warranty.
• MetalCloak recommends a suspension specialist align the Jeep after MetalCloak suspension is installed.

MPN 7183 · UPC 810191171508
