Jeep Wrangler JK 2007-2018, MetalCloak Outboard Shock Mount Spacer Relocation Kit, Lower Front

With more wheel travel, the front shocks on a JK need room to move with the axle. The factory lower mounts let the shock bodies hit the frame rails and hold the eyelets so the bushings bind instead of swing.

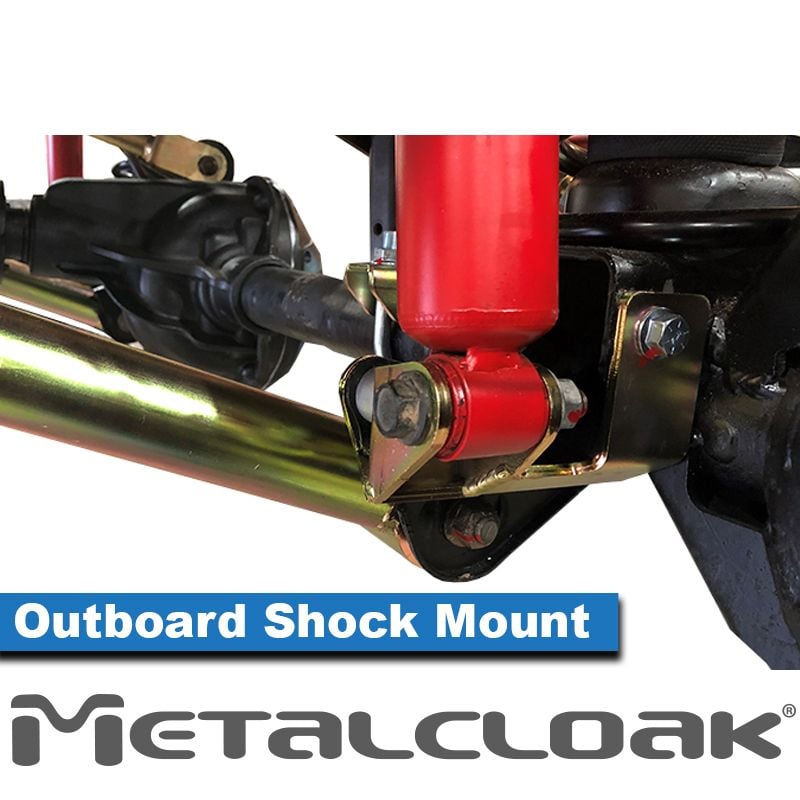

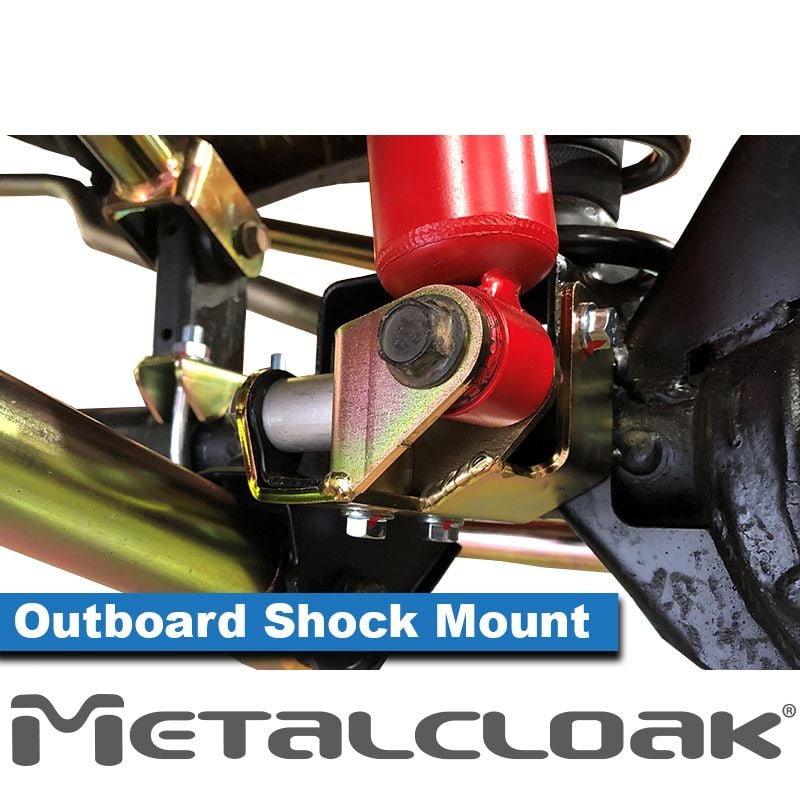

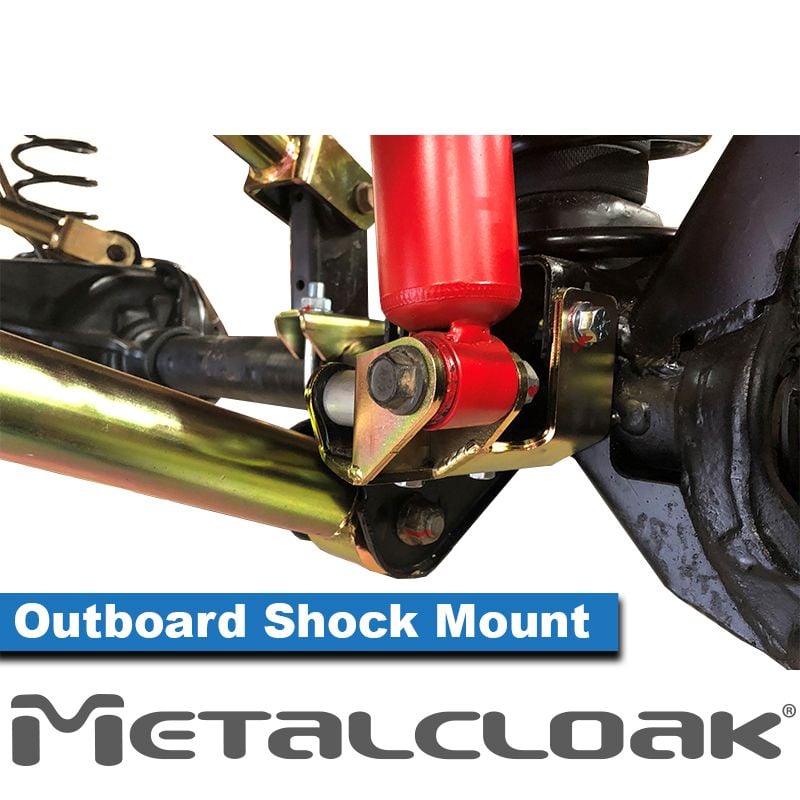

This MetalCloak kit moves the lower front mounts outboard, away from the frame rails, and rotates each shock eyelet 90 degrees so it swings with the axle. The brackets are laser-cut 3/16in hot rolled steel with a gold zinc finish.

It bolts on in about an hour, and the shocks cycle through full articulation without contact.

Key Features

• Moves the lower front shock mounts away from the frame rails
• Rotates the shock eyelet 90 degrees to stop bushing bind
• Driver and passenger brackets in 3/16in hot rolled steel
• Shock mount spacers included
• Gold zinc plated, made in the USA

Specifications

• Material: 3/16in hot rolled steel plate, laser cut and CNC bent
• Coating: Gold zinc
• Install time: About 1 hour
• Body modification: None

Fitment

• Jeep Wrangler JK 2007-2018

For stock axles only. Intended for wheels with 4.5in of backspacing or less; factory wheels need 2in wheel spacers.

In the Box

• Outboard shock mount brackets
• Spacers
• Hardware

Notes

• Hardware may be hex head or button head.
• Aftermarket axles with thicker brackets affect fitment.

MPN 7104
