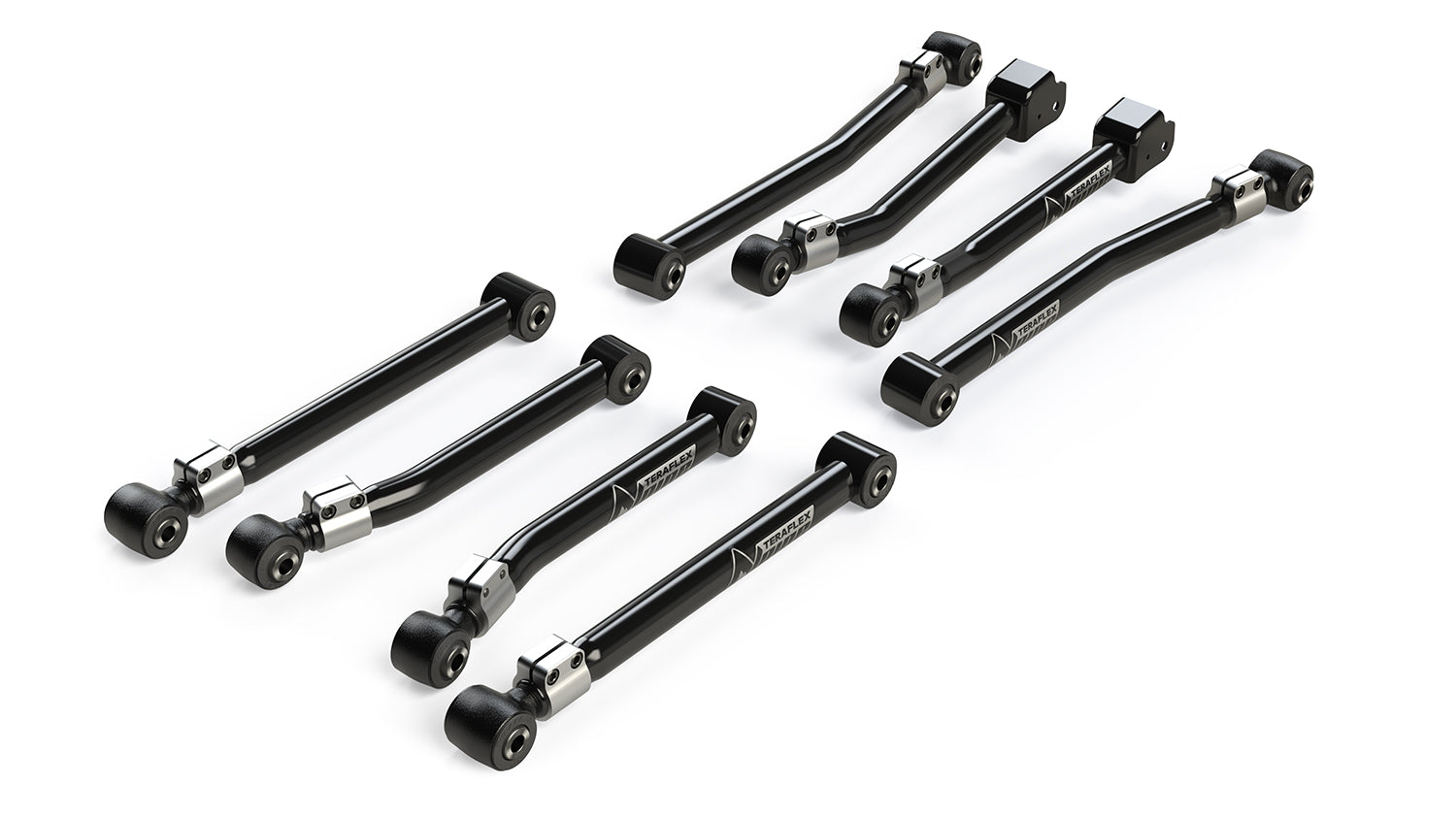

Jeep Wrangler JL 2018-2026, TeraFlex Alpine Short Arm Kit, 8-Arm, 0-4.5in Lift

A lifted Wrangler pulls the axles out of alignment, and the factory arms cannot adjust them back. The TeraFlex Alpine Short Arm Kit gives complete alignment adjustability with a full set of eight arms for 0-4.5 in lifts. The arms bolt to the factory control arm mounting brackets, and maintenance-free, factory-style bushings give good NVH damping and ride quality. The kit covers the front upper, front lower, rear upper and rear lower positions, so every arm is replaced at once. Bolt on the set, set the axles to alignment, and drive.

Key Features

• Complete alignment adjustability and dependability
• Bolts to the factory control arm mounting brackets
• Maintenance-free, factory-style bushings with NVH damping and ride quality
• Can be added to any existing suspension lift

Specifications

• Lift height: 0-4.5 in
• Arm tube: 42mm x 4mm
• Front upper (1416520): factory length 20.185 in, min 20 in, max 21 in; 12mm bolts; OEM axle bushing, frame bushing 611014
• Front lower (1416500): factory length 24 in, min 24 in, max 25-1/4 in; 16mm bolts; bushing 09-01-201-001
• Rear upper (1416560): factory length 17.425 in, min 17-3/8 in, max 18-1/2 in; 14mm bolts; bushing 611012
• Rear lower (1416540): factory length 19-3/4 in, min 19-13/16 in, max 21-1/16 in; 14mm bolts; bushing 611011

Fitment

• Jeep Wrangler JL 2018-2026 (2-door and 4-door)

In the Box

• Alpine Short Arm Pair, Front Upper (1416520)
• Alpine Short Arm Pair, Front Lower (1416500)
• Alpine Short Arm Pair, Rear Upper (1416560)
• Alpine Short Arm Pair, Rear Lower (1416540)

MPN 1416610 · UPC 843885046714
