Jeep Wrangler JL 2018-2026, TeraFlex Alpine Long Arm Kit, 8-Arm, 3-6in Lift

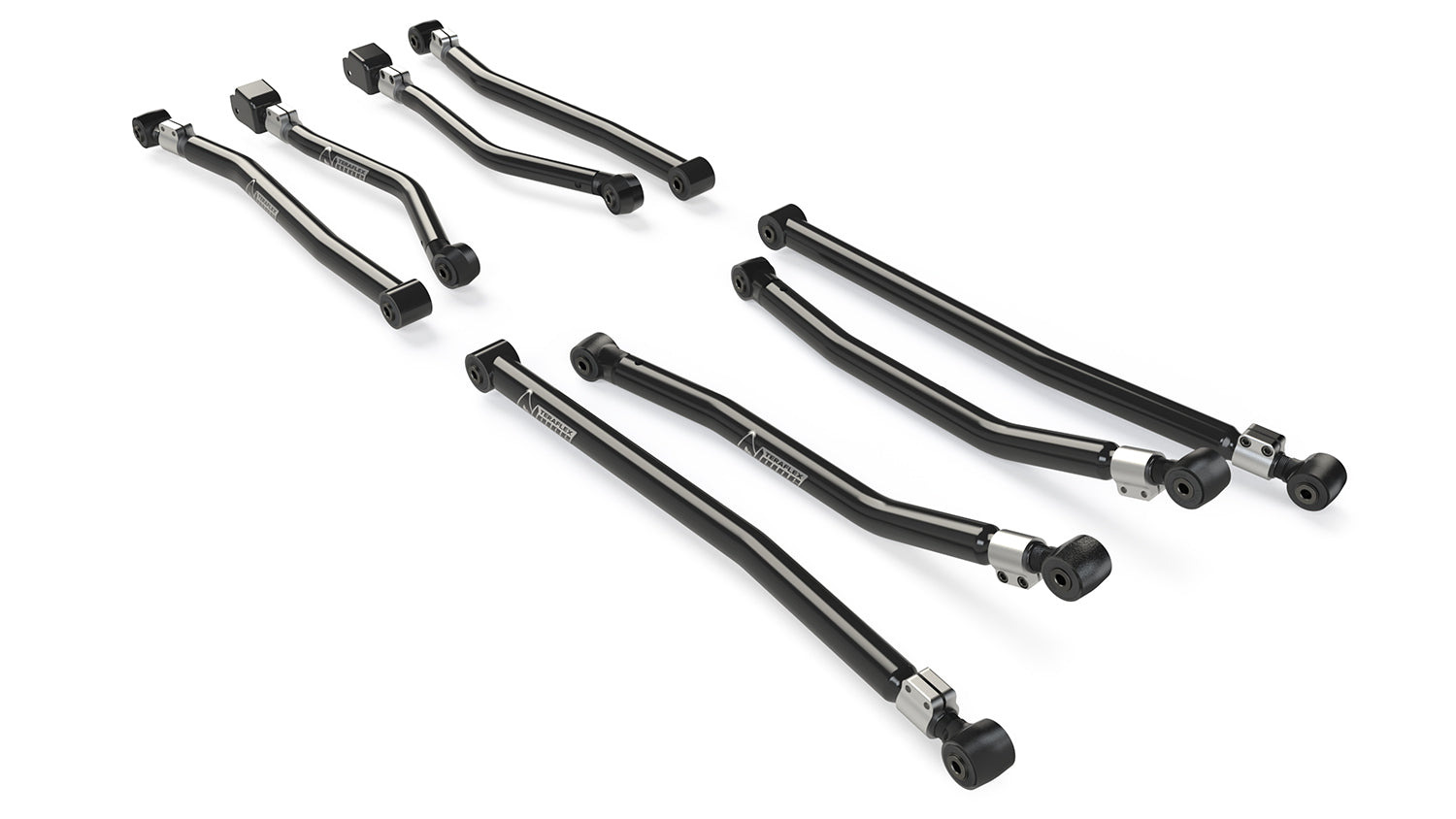

A lifted Jeep on stock-length arms loses alignment adjustment at every corner. The TeraFlex Alpine long arm kit replaces all eight control arms with adjustable long arms that have maintenance-free, factory-style bushings, which damp noise and vibration and keep ride quality up. The kit is four arm pairs: front upper, front lower, rear upper and rear lower. Pair it with the Long Arm Bracket Kit (JL 2-door 1958002, JL 4-door 1958000), sold separately, bolt in the arms and set alignment for the lift. It can be added to any existing suspension lift.

Key Features

• Complete alignment adjustability for 3-6in lifts
• Maintenance-free, factory-style bushings with NVH damping
• Four arm pairs for all eight control arm positions
• Can be added to any existing suspension lift

Specifications

• Lift height: 3-6in
• Front upper pair (1316520): tube 42 x 4mm; factory length 20-1/4in; minimum 27-3/4in; maximum 28-7/8in; axle bolt 12mm; frame bolt 14mm; axle bushing OEM; frame bushing 611012
• Front lower pair (1316500): tube 50 x 5mm; factory length 24in; minimum 30-7/8in; maximum 32in; bolts 16mm; bushings 09-01-201-001
• Rear upper pair (1316560): tube 50 x 5mm; factory length 17-3/8in; minimum 32-3/4in; maximum 33-3/4in; bolts 14mm; axle bushing 611012; frame bushing 611011
• Rear lower pair (1316540): tube 50 x 5mm; factory length 19-3/4in; minimum 36-1/4in; maximum 37-3/8in; bolts 14mm; bushings 611011

Fitment

• Jeep Wrangler JL 2018-2026 (2-door and Unlimited 4-door)

Does not fit the 4-door JL Wrangler Unlimited 4xe hybrid models.

In the Box

• Alpine long arm pair, front upper (1316520)
• Alpine long arm pair, front lower (1316500)
• Alpine long arm pair, rear upper (1316560)
• Alpine long arm pair, rear lower (1316540)

Notes

• Must be used with the Long Arm Bracket Kit (JL 2-door 1958002, JL 4-door 1958000), sold separately.

MPN 1316005 · UPC 843885051350
