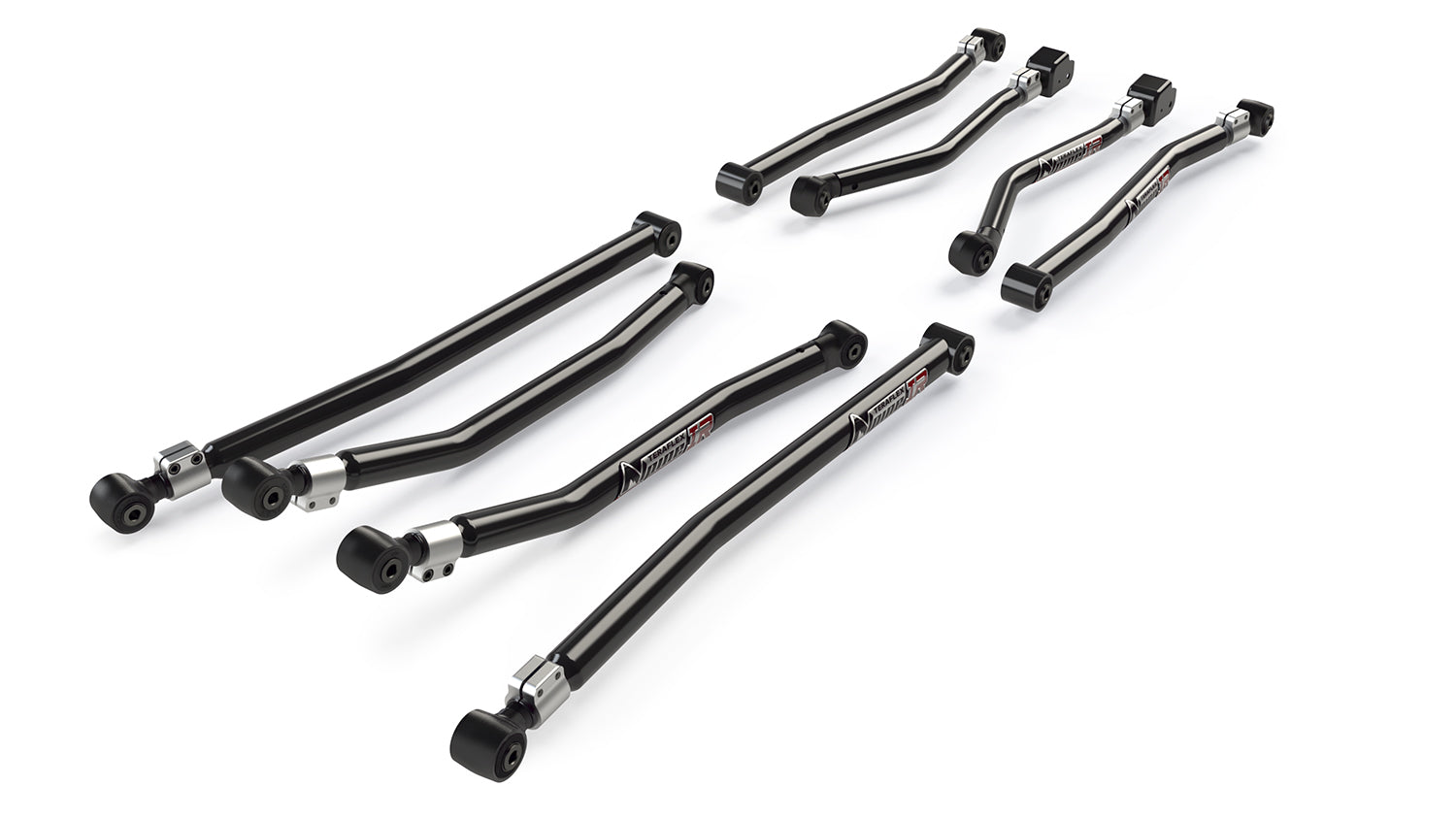

Jeep Wrangler JL 2018-2026, TeraFlex Alpine IR Long Arm Kit, 8-Arm, 3-6in Lift

A lifted Jeep on stock-length arms loses alignment adjustment at every corner, and bushings that bind at full droop make the ride harsh. The TeraFlex Alpine IR long arm kit replaces all eight control arms with adjustable long arms that use maintenance-free IR bushings, which rotate without restriction and damp noise and vibration. The kit is four arm pairs: front upper, front lower, rear upper and rear lower. Pair it with the Long Arm Bracket Kit (JL 2-door 1958002, JL 4-door 1958000), sold separately, bolt in the arms and set alignment for the lift.

Key Features

• Complete alignment adjustability for 3-6in lifts
• Maintenance-free IR bushings with unrestricted rotation and flex and NVH damping
• Four arm pairs for all eight control arm positions
• Can be added to any existing suspension lift

Specifications

• Lift height: 3-6in
• Front upper pair (1310520): tube 42 x 4mm; factory length 20-1/4in; minimum 27-3/4in; maximum 28-7/8in; axle bolt 12mm; frame bolt 14mm; IR bushings 611018 (axle) and 611016 (frame)
• Front lower pair (1310500): tube 50 x 5mm; factory length 24in; minimum 30-7/8in; maximum 32in; bolts 16mm; IR bushings 611020
• Rear upper pair (1310560): tube 50 x 5mm; factory length 17-3/8in; minimum 32-3/4in; maximum 33-3/4in; bolts 14mm; IR bushings 611015 (axle) and 611016 (frame)
• Rear lower pair (1310540): tube 50 x 5mm; factory length 19-3/4in; minimum 36-1/4in; maximum 37-3/8in; bolts 14mm; IR bushings 611015

Fitment

• Jeep Wrangler JL 2018-2026 (2-door and Unlimited 4-door)

Does not fit the 4-door JL Wrangler Unlimited 4xe hybrid models.

In the Box

• Alpine IR long arm pair, front upper (1310520)
• Alpine IR long arm pair, front lower (1310500)
• Alpine IR long arm pair, rear upper (1310560)
• Alpine IR long arm pair, rear lower (1310540)

Notes

• Must be used with the Long Arm Bracket Kit (JL 2-door 1958002, JL 4-door 1958000), sold separately.

MPN 1310505 · UPC 843885051343
