Jeep Wrangler JL 2-Door 2018-2026, TeraFlex Alpine RT4 4.5in Long Arm Suspension System, No Shocks

A 4.5 inch lift is a big change in geometry, and the factory arms, mounts and bushings were not made for it. The TeraFlex Alpine RT4 long arm system covers the highway, the desert and the rocks with bolt-on Alpine IR long control arms and brackets, HD forged adjustable track bars and track bar brackets that allow full adjustment. Independent Rotation bushings remove bushing bind through full travel, the long arm brackets restore near-factory mounting orientation to reduce bushing stress on higher lifts, and SpeedBump bump stops smooth out unexpected hits.

Install the springs, arms, brackets, track bars and bump stops, set the alignment, and add Falcon shocks. The Jeep rides quietly and flexes freely.

Key Features

• Alpine IR long control arms and brackets with Independent Rotation (IR) bushings remove bushing bind during full suspension travel
• Long arm brackets reposition the frame-end mounting points to restore near-factory orientation and reduce bushing stress on higher lifts
• Front and rear HD forged adjustable track bars and track bar brackets improve steering response, center the axles and reduce body roll
• SpeedBump bump stops smooth out unexpected trail hits
• Restores front and rear roll axis angles to minimize brake dive and acceleration squat
• Reduced noise, vibration and harshness

Specifications

• Lift height: 4.5in
• Max tire, Sport/Sahara fenders: 35in (with 3in front and 2.5in rear bump stops, strike pad extensions and shims)
• Max tire, Sport/Sahara fenders: 37in (with 3.5in front and 4in rear bump stops, strike pad extensions and shims)
• Max tire, Rubicon fenders: 37in (with 2.5in front and 3in rear bump stops, strike pad extensions and shims)
• Max tire, aftermarket high fenders: 39in and larger (varies)

Fitment

• Jeep Wrangler JL 2018-2026 (2-door)

Shocks are not included. TeraFlex recommends Falcon Performance Shocks, sold separately.

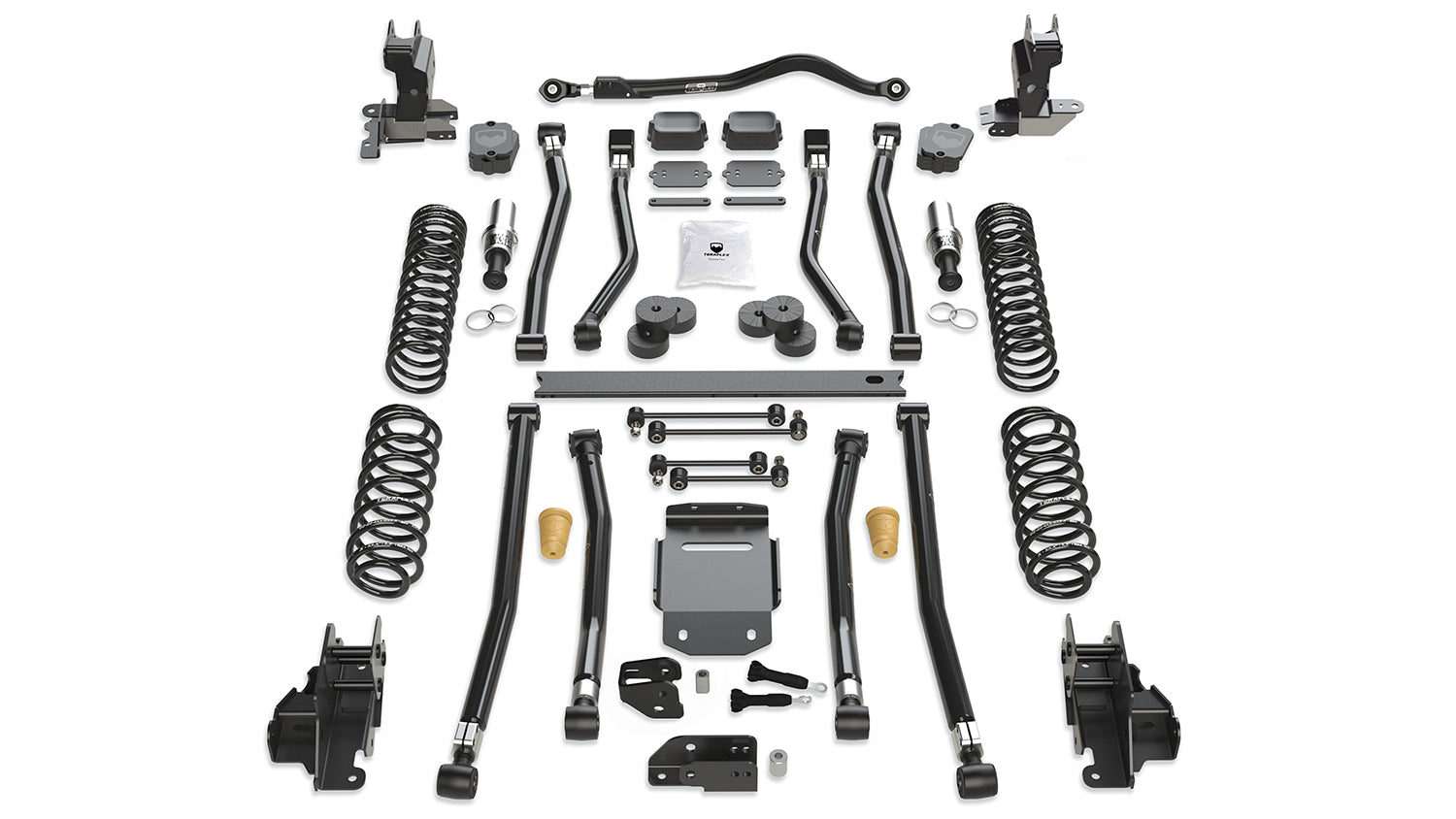

In the Box

• 4.5in lift coil spring pair (JL2 front 1864402, rear 1864302)
• Alpine IR long control arm and bracket kit with crossmember, 8-arm, 3-6in lift (JL2 1310512)
• HD forged adjustable track bars, 0-6in lift (front 1753420, rear 1754420)
• Track bar bracket kit (front lower 4.5in lift 1953500; rear lower 2.5-4.5in lift 1953600)
• SpeedBump and progressive bump stop kit, front and rear, 0-4.5in lift (1958350)
• 2in bump stop strike pad extension kit, front and rear (1959500)
• 0.5in bump stop strike pad shim kit, front and rear (1959300)
• Front sway bar quick disconnect kit, 0-4.5in lift (1764000)
• Rear sway bar link kit (1764300)
• RockGuard transmission skid plate / long arm crossmember reinforcement (4609100)
• Front brake line anchor kit (1101255)
• All necessary hardware, and more

Warranty

Backed by a lifetime warranty.

Notes

• Complete lift system; TeraFlex recommends Falcon Performance Shocks, sold separately
• Falcon shocks and TeraFlex lift coil springs are engineered together to improve compression and rebound

MPN 1534200 · UPC 843885049128
