Jeep Wrangler JL 2-Door 2018-2026, TeraFlex Alpine RT3 3.5in Long Arm Suspension System, No Shocks

A 3.5 inch lift is one of the most versatile heights, and it still pushes the axles away from where the factory arms put them. The TeraFlex Alpine RT3 long arm system brings Alpine IR long control arms and brackets, HD forged adjustable track bars and track bar brackets for full adjustability. Independent Rotation bushings remove bushing bind through full travel, the long arm brackets restore near-factory mounting orientation to reduce bushing stress, and SpeedBump bump stops smooth out unexpected hits.

Install the springs, arms, brackets, track bars and bump stops, set the alignment, and add Falcon shocks. The Jeep drives like a different vehicle on and off the road.

Key Features

• Alpine IR long control arms and brackets with Independent Rotation (IR) bushings remove bushing bind during full suspension travel
• Long arm brackets reposition the frame-end mounting points to restore near-factory orientation and reduce bushing stress
• Front and rear HD forged adjustable track bars and track bar brackets improve steering response, center the axles and reduce body roll
• SpeedBump bump stops smooth out unexpected trail hits
• Restores front and rear roll axis angles to minimize brake dive and acceleration squat
• Reduced noise, vibration and harshness

Specifications

• Lift height: 3.5in
• Max tire, Sport/Sahara fenders: 35in (with 3in front and 2.5in rear bump stops, strike pad extensions and shims)
• Max tire, Rubicon fenders: 35in (with 2in front and 2in rear bump stops and strike pad extensions)
• Max tire, Rubicon fenders: 37in (with 2.5in front and 3in rear bump stops, strike pad extensions and shims)

Fitment

• Jeep Wrangler JL 2018-2026 (2-door)

Shocks are not included. TeraFlex recommends Falcon Performance Shocks, sold separately.

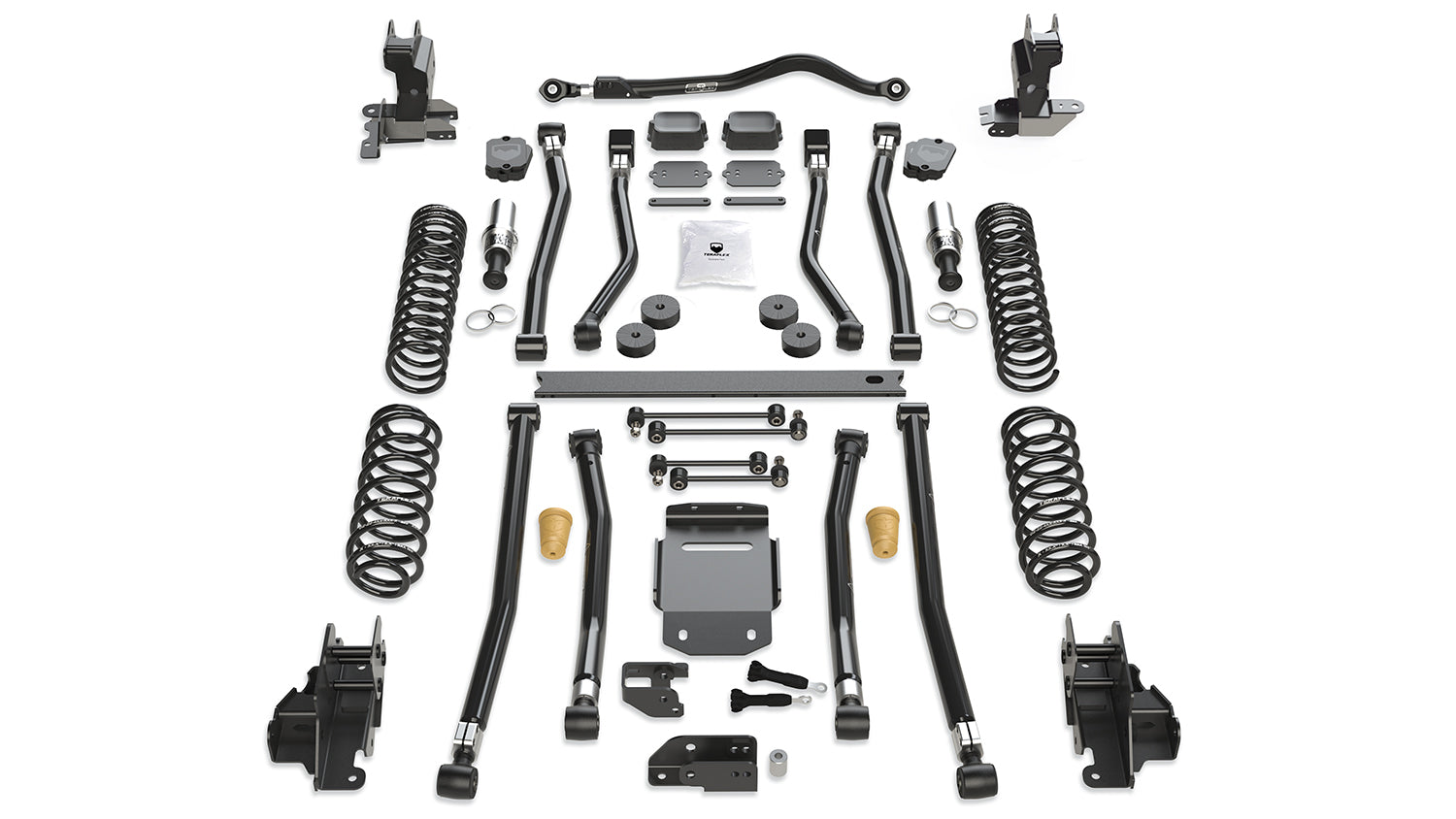

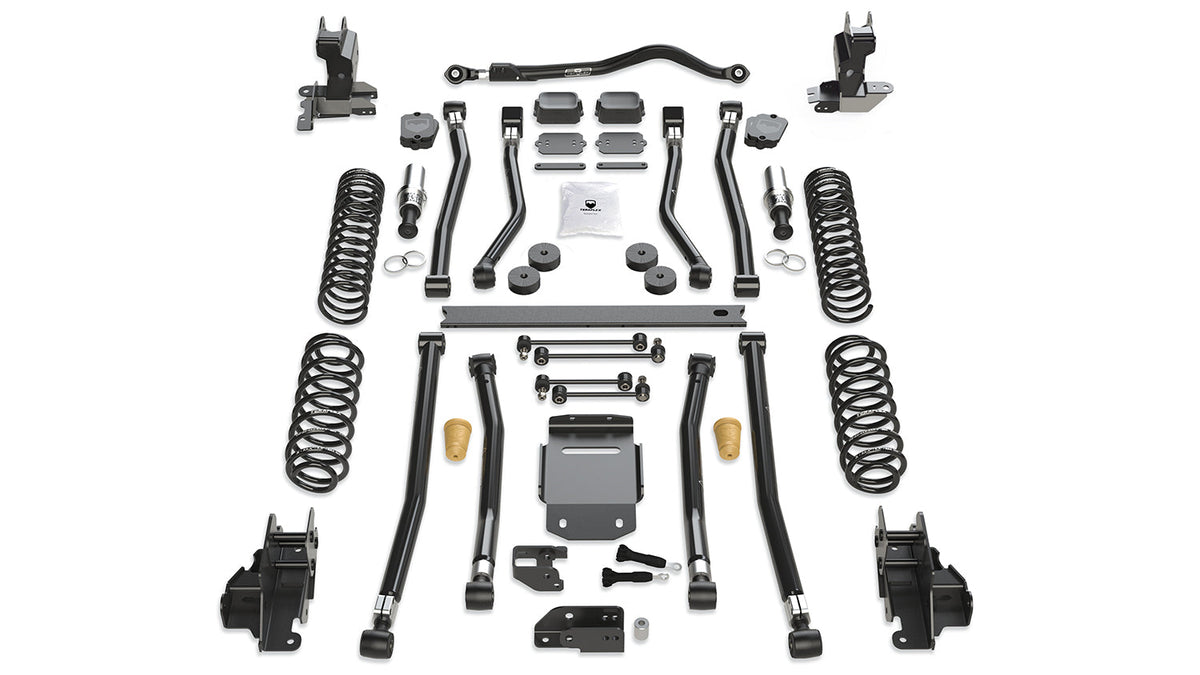

In the Box

• 3.5in lift coil spring pair (JL2 front 1863002, rear 1863102)
• Alpine IR long control arm and bracket kit with crossmember, 8-arm, 3-6in lift (JL2 1310512)
• HD forged adjustable track bars, 0-6in lift (front 1753420, rear 1754420)
• Track bar bracket kit (front lower 2.5-3.5in lift 1953250; rear lower 2.5-4.5in lift 1953600)
• SpeedBump and progressive bump stop kit, front and rear, 0-4.5in lift (1958350)
• 2in bump stop strike pad extension kit, front and rear (1959500)
• 0.5in bump stop strike pad shim kit, front and rear (1959300)
• Front sway bar quick disconnect kit, 0-4.5in lift (1764000)
• Rear sway bar link kit (1764300)
• RockGuard transmission skid plate / long arm crossmember reinforcement (4609100)
• Front brake line anchor kit (1101255)
• All necessary hardware, and more

Notes

• Complete lift system; TeraFlex recommends Falcon Performance Shocks, sold separately
• Falcon shocks and TeraFlex lift coil springs are engineered together to improve compression and rebound

MPN 1533100 · UPC 843885049081
