Jeep Wrangler JL 2-Door 2018-2026, TeraFlex Alpine CT3 3.5in Short Arm Suspension System, No Shocks

A 3.5 inch suspension opens up larger tire sizes and more trail, and it also moves the axles away from where the factory geometry expects them. The TeraFlex Alpine CT3 short arm system answers with adjustable Alpine short arms, a front HD forged adjustable track bar and track bar brackets for tunability. The arms balance front caster and pinion angles and optimize rear pinion angle, anti-squat geometry and tire position, and the track bar centers the front axle and reduces body roll.

Install the springs, arms, track bar and bump stops, set the alignment, and add Falcon shocks. The Jeep is ready for bigger tires and keeps its highway manners.

Key Features

• Adjustable Alpine short arms balance front caster and pinion angles on 0-4.5in lifts
• Optimizes rear pinion angle, anti-squat geometry and tire position
• Front HD forged adjustable track bar centers the front axle and reduces body roll
• Restores front and rear roll axis angles to minimize brake dive and acceleration squat
• Includes a front brake line anchor kit
• Reduced noise, vibration and harshness

Specifications

• Lift height: 3.5in
• Max tire, Sport/Sahara fenders: 35in (with 3in front and 2.5in rear bump stops, strike pad extensions and shims)
• Max tire, Rubicon fenders: 35in (with 2in front and 2in rear bump stops and strike pad extensions)
• Max tire, Rubicon fenders: 37in (with 2.5in front and 3in rear bump stops, strike pad extensions and shims)

Fitment

• Jeep Wrangler JL 2018-2026 (2-door)

Shocks are not included. TeraFlex recommends Falcon Performance Shocks.

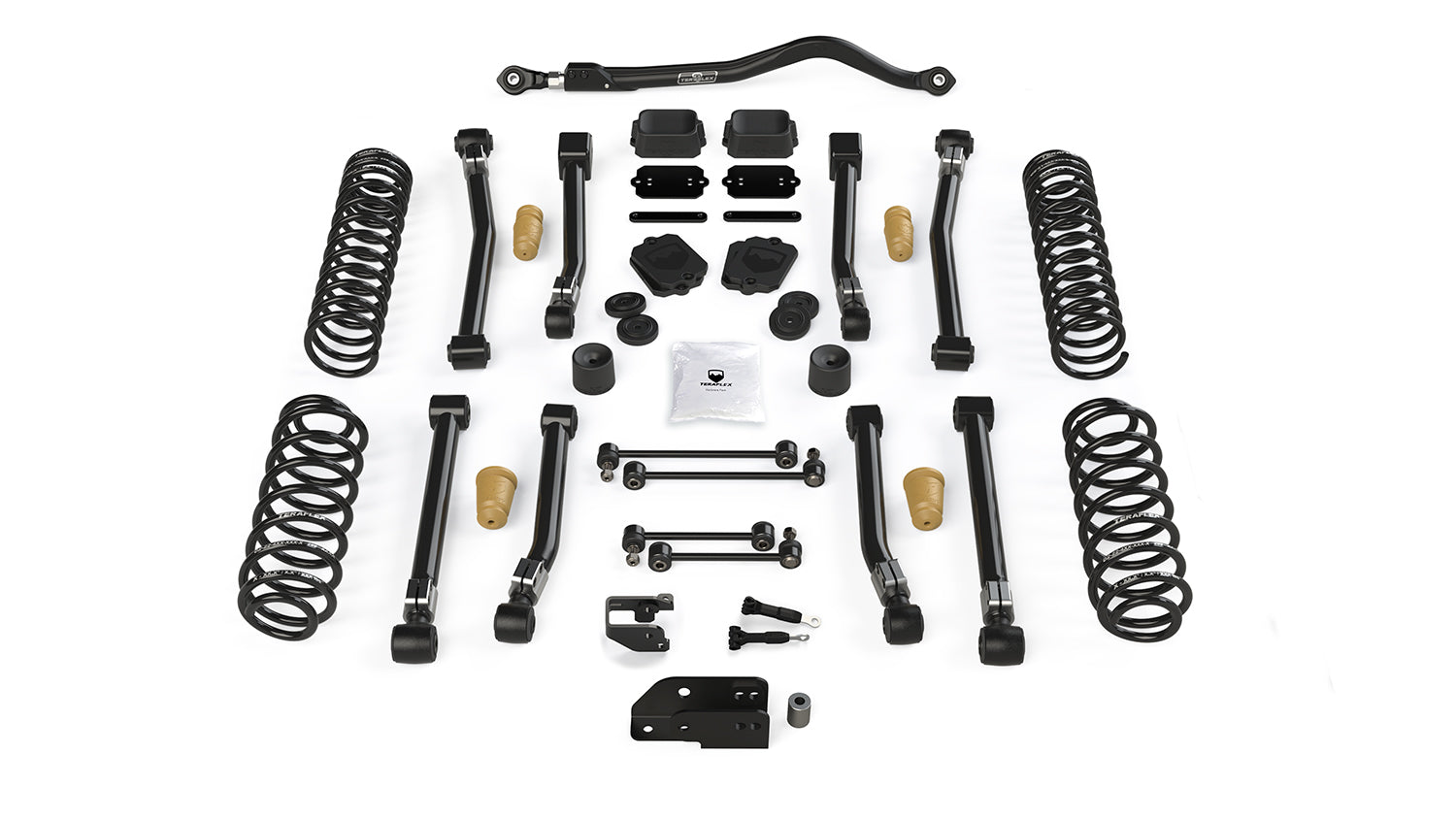

In the Box

• 3.5in lift coil spring pair (JL2 front 1863002, rear 1863102)
• Alpine short arm kit, 8-arm, 0-4.5in lift (1416610)
• HD forged adjustable track bar, front, 0-6in lift (1753420)
• Track bar bracket kit (front lower 4.5in lift 1953500; rear lower 2.5-4.5in lift 1953600)
• Progressive bump stop kit, front and rear, 0-4.5in lift (1959200)
• 2in bump stop strike pad extension kit, front and rear (1959500)
• 0.5in bump stop strike pad shim kit, front and rear (1959300)
• Front sway bar quick disconnect kit, 0-4.5in lift (1764000)
• Rear sway bar link kit (1764300)
• Front brake line anchor kit (1101255)
• All necessary hardware, and more

Notes

• Complete lift system; TeraFlex recommends Falcon Performance Shocks, sold separately
• Falcon shocks and TeraFlex lift coil springs are engineered together to improve compression and rebound

MPN 1523200 · UPC 843885047209
