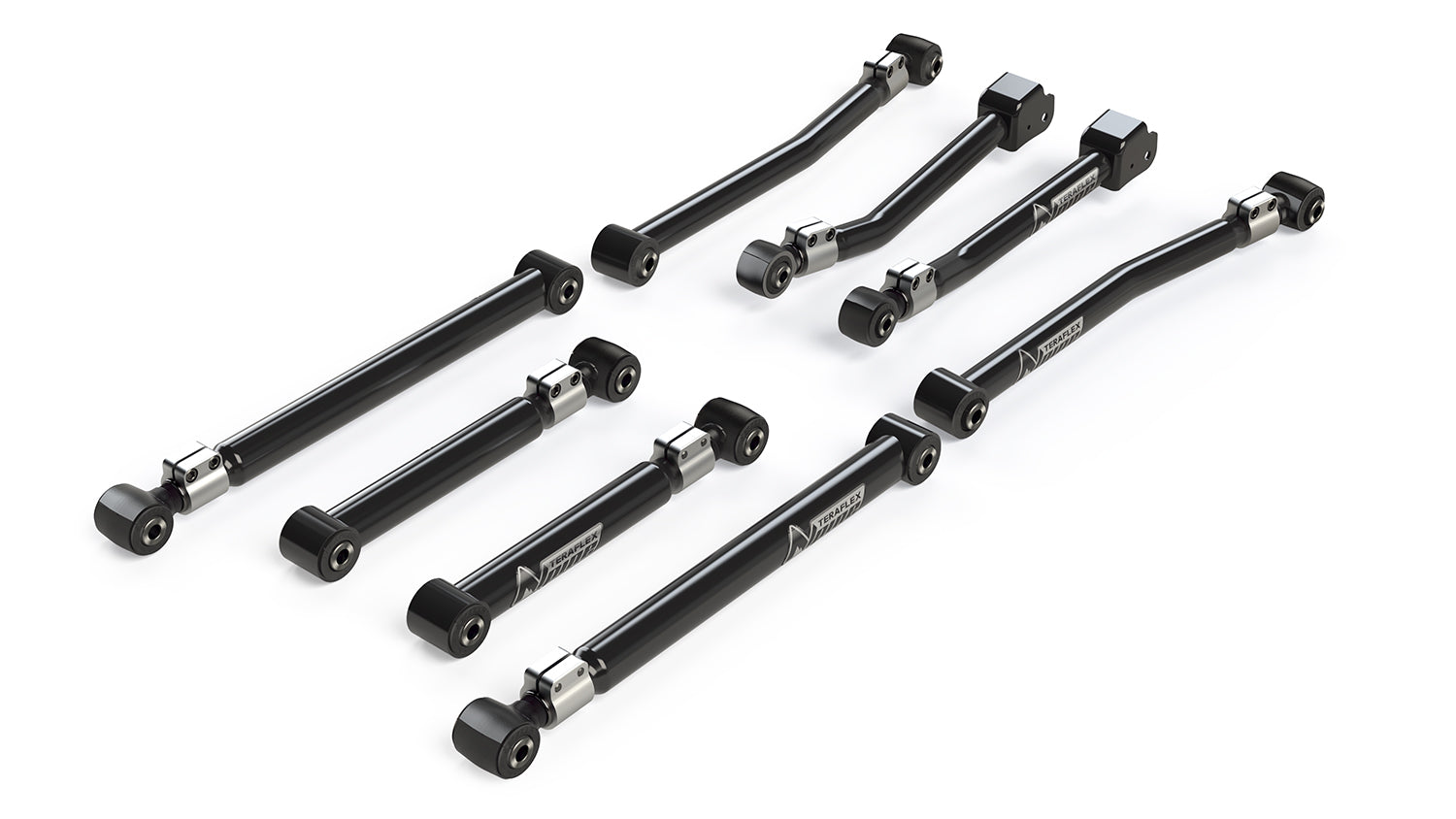

Jeep Gladiator JT 2020-2026, TeraFlex Alpine Short Arm Kit, 8-Arm, 0-4.5in Lift

Adding lift to a Gladiator moves the axles away from where the factory control arms expect them. Without adjustable arms, caster and pinion angle drift, and the Jeep tracks and rides worse for it.

The TeraFlex Alpine Short Arm Kit gives all eight arms adjustability, built from 42mm x 4mm tube with maintenance-free, factory-style bushings that damp NVH and keep the ride comfortable. The arms bolt to the factory control arm mounting brackets and can be added to any existing suspension lift.

Swap the four arm pairs, set the lengths for your alignment, and drive.

Key Features

• Eight adjustable short arms: front upper, front lower, rear upper and rear lower pairs
• Maintenance-free, factory-style bushings
• Bolts to the factory control arm mounting brackets
• Can be added to any existing suspension lift

Specifications

• Lift height: 0-4.5in
• Tube diameter and wall: 42mm x 4mm
• Front upper (1416520): factory length 20.185in, adjustable 20-21in, 12mm bolt
• Front lower (1416500): factory length 24in, adjustable 24-25-1/4in, 16mm bolt
• Rear upper (1417530): factory length 16-3/8in, adjustable 16-1/8-17-3/8in, 16mm bolt
• Rear lower (1417540): factory length 23-3/4in, adjustable 23-1/2-24-3/4in, 16mm bolt

Fitment

• Jeep Gladiator JT 2020-2026

In the Box

• Alpine short arm pair, front upper (1416520)
• Alpine short arm pair, front lower (1416500)
• Alpine short arm pair, rear upper (1417530)
• Alpine short arm pair, rear lower (1417540)

MPN 1417500 · UPC 843885050667
