Jeep Gladiator JT 2020-2026, TeraFlex Alpine IR Short Arm Kit, 8-Arm, 0-4.5in Lift

A lifted Gladiator changes the angles on every control arm, and fixed factory arms cannot bring caster, pinion angle and axle position back where they belong. The result is vague handling and uneven tire wear.

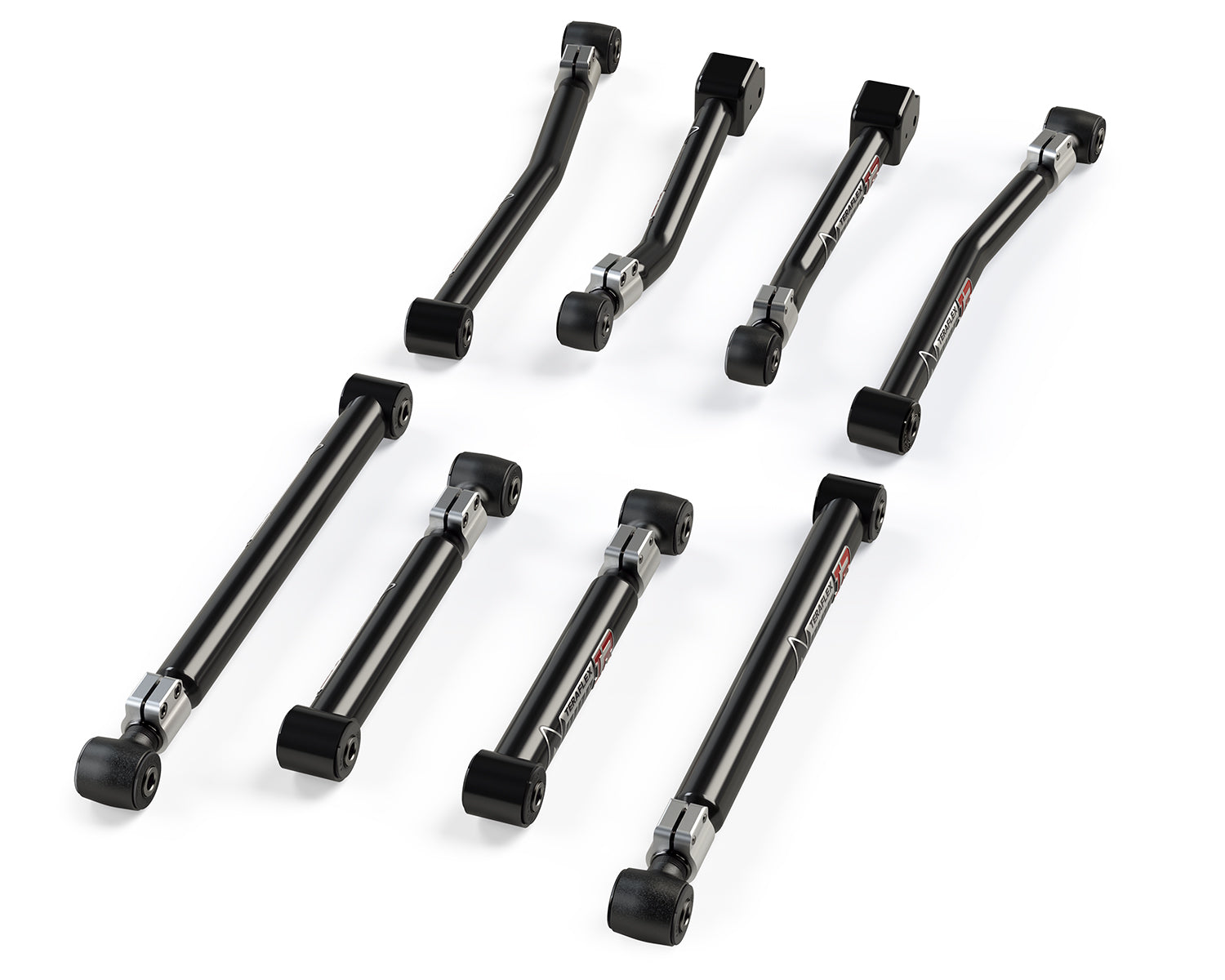

The TeraFlex Alpine IR Short Arm Kit replaces all eight arms with adjustable units made from 42mm x 4mm tube. Independent Rotation bushings are maintenance-free and give unrestricted rotation and flex, with good NVH damping. The arms bolt to the factory control arm mounting brackets and work with any existing suspension lift.

Install the four arm pairs, set the length for your alignment, and drive. Handling and ride quality stay predictable on the road and on the trail at 0-4.5in of lift.

Key Features

• Eight adjustable short arms: front upper, front lower, rear upper and rear lower pairs
• Maintenance-free IR bushings for unrestricted rotation and flex
• Bolts to the factory control arm mounting brackets
• Can be added to any existing suspension lift

Specifications

• Lift height: 0-4.5in
• Tube diameter and wall: 42mm x 4mm
• Front upper (1416530): factory length 20.185in, adjustable 20-21in, 12mm bolt
• Front lower (1416550): factory length 24in, adjustable 24-25-1/4in, 16mm bolt
• Rear upper (1417580): factory length 16-3/8in, adjustable 16-1/8-17-3/8in, 16mm bolt
• Rear lower (1417590): factory length 23-3/4in, adjustable 23-1/2-24-3/4in, 16mm bolt

Fitment

• Jeep Gladiator JT 2020-2026

In the Box

• Alpine IR short arm pair, front upper (1416530)
• Alpine IR short arm pair, front lower (1416550)
• Alpine IR short arm pair, rear upper (1417580)
• Alpine IR short arm pair, rear lower (1417590)

MPN 1417550 · UPC 843885050674
