Jeep Gladiator JT 2020-2026, TeraFlex 3.5in Coil Spring Base Lift Kit, No Shocks

A coil spring lift is the simplest way to fit bigger tires. It also leaves the control arms and track bar the way they were, so geometry has to be corrected.

The TeraFlex 3.5in Coil Spring Base Lift Kit includes the basic lift components only: front and rear lift coil springs, a front lower track bar bracket, bump stop extensions and shims, and front and rear sway bar links. It does not have the drivability of a full suspension system, so longer front lower control arms, front control arm Sport Frame Brackets, adjustable control arms or adjustable track bars are needed to correct geometry.

Install the springs and hardware, add Falcon shocks and the geometry parts, and align.

Key Features

• 3.5in lift coil spring pair, front and rear
• Front lower track bar bracket (2.5-3.5in lift)
• Bump stop strike pad extensions and shims, front and rear
• 11.5in front and 13in rear sway bar link kits (2.5-4.5in lift)
• Basic lift components only

Specifications

• Lift height: 3.5in
• Max tire diameter:
• Sport/Overland fenders: 33in (2in front and 1in rear bump stops/strike pad extensions/shims), 35in (3in front and 2.5in rear)
• Rubicon/Mojave fenders: 35in (2in front and 1in rear), 37in (2in front and 2.5in rear)

Fitment

• Jeep Gladiator JT 2020-2026

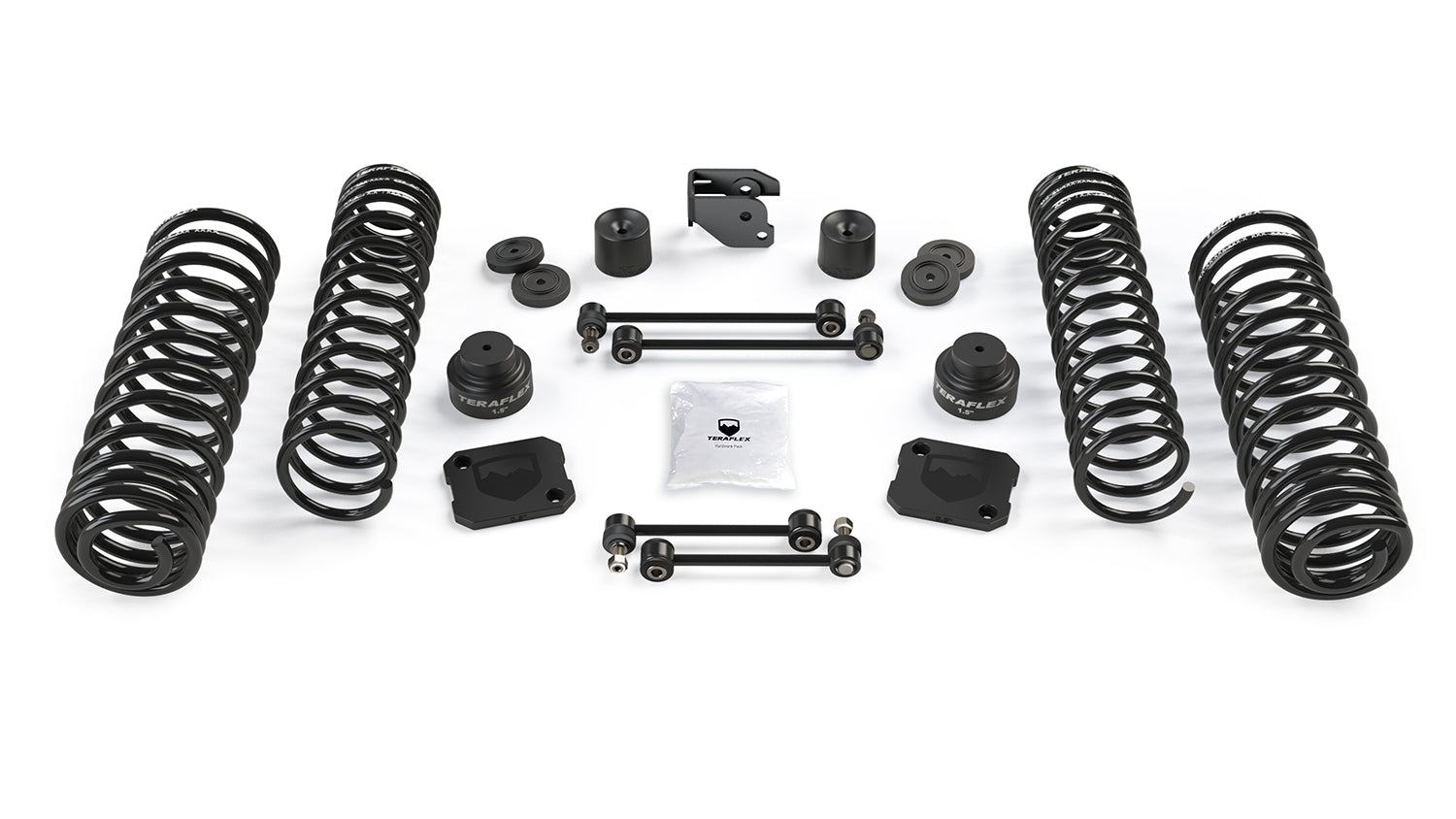

In the Box

• 3.5in lift coil spring pair (front 1873000, rear 1873100)
• Track bar bracket, front lower (1953250)
• 2in bump stop strike pad extensions, front lower (x2)
• 0.5in bump stop strike pad shims, front lower (x4)
• 1.5in bump stop extension kit, rear upper (x2)
• 0.5in bump stop shim kit, rear upper
• 0.5in bump stop strike pad shim kit, rear lower
• 11.5in sway bar link kit, front
• 13in sway bar link kit, rear
• All necessary hardware

Notes

• Does not include shocks. Falcon Performance Shocks are sold separately.
• Requires longer front lower control arms, or front control arm Sport Frame Brackets, or adjustable control arms, and/or adjustable track bars to correct suspension geometry.

MPN 1365000 · UPC 843885052166
