Jeep Gladiator JT 2020-2026, TeraFlex 2.5in Alpine RT2 Short Arm Suspension System, No Shocks

A 2.5 in lift is the first step toward bigger tires, but a lift alone leaves the caster and pinion angles off and the control arms binding. The truck rides harsher, wanders on the highway and wears out the first set of bushings.

The Alpine RT2 pairs Alpine IR short arms, whose Independent Rotation bushings remove bushing bind through full travel, with front and rear HD forged adjustable track bars and front SpeedBump bump stops. The arms adjust to balance front caster and pinion angles and to set rear pinion angle and anti-squat geometry on vehicles with 0-4.5 in of lift.

Install the kit, add shocks of your choice, and set the alignment. The rig sits taller, centers the axles under the body and rides quietly on the road and the trail.

Key Features

• Alpine IR short arms with Independent Rotation bushings
• Front and rear HD forged adjustable track bars
• Front SpeedBump bump stops
• Adjusts caster, pinion angle, rear anti-squat geometry and tire position for vehicles with 0-4.5 in of lift
• Does not include shocks

Specifications

• Lift height: 2.5 in
• Max tire diameter, Sport/Overland fenders: 33 in with 2 in front and 1 in rear bump stops, strike pad extensions and shims
• Max tire diameter, Rubicon/Mojave fenders: 35 in with 2 in front and 1 in rear bump stops, strike pad extensions and shims

Fitment

• Jeep Gladiator JT 2020-2026 (pickup)

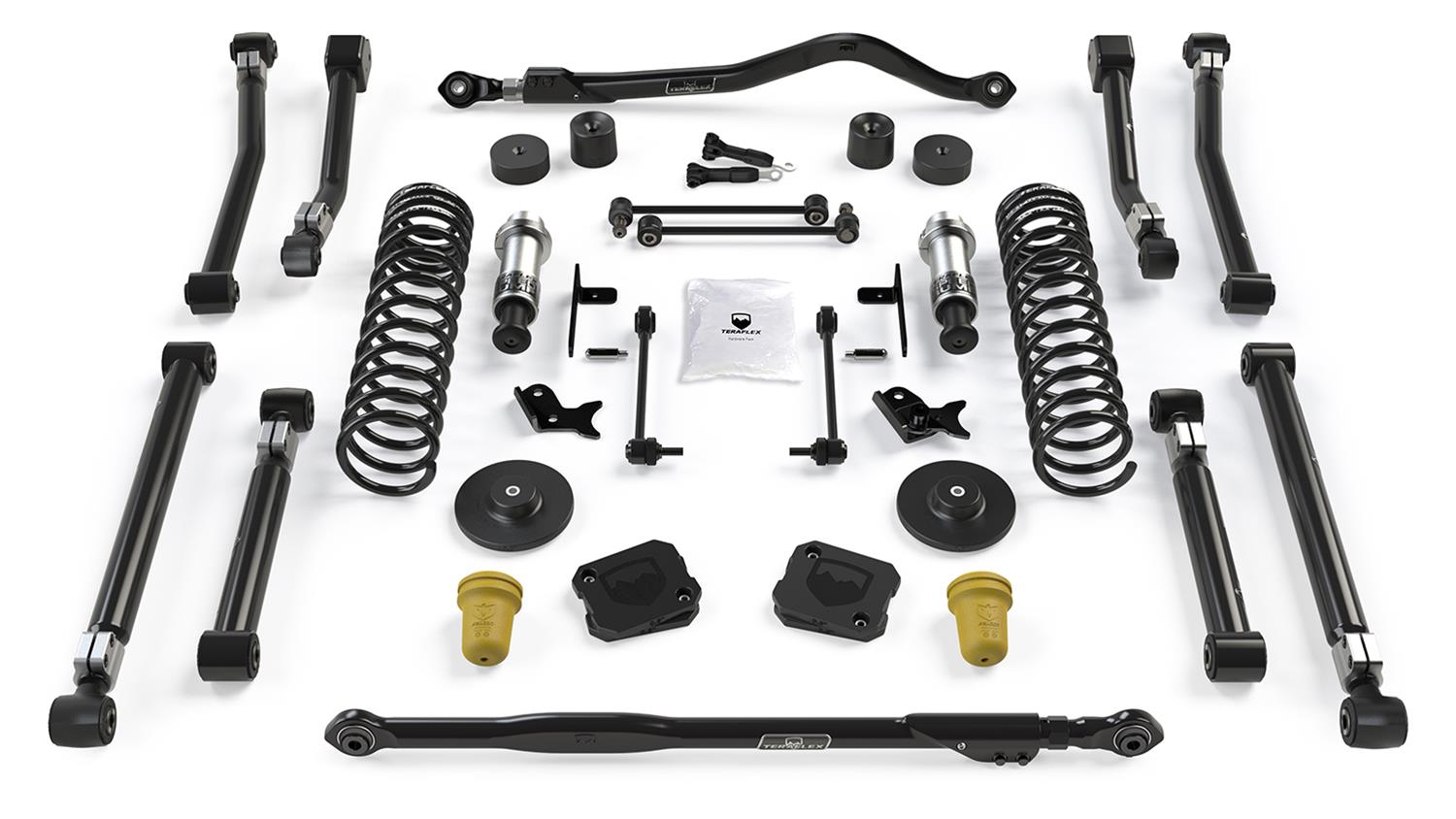

In the Box

• 2.5 in lift coil spring pair, front
• 0.5 in lift coil spring spacers, rear (2)
• Alpine IR short arm kit, 8-arm (0-4.5 in lift)
• HD forged adjustable track bars, front and rear
• SpeedBump and progressive bump stop kit, front and rear (2.5-3.5 in lift)
• Front sway bar quick disconnect kit
• 13 in rear sway bar link kit
• Front brake line anchor kit
• All necessary hardware

Notes

• Falcon shocks are sold separately.

MPN 2032000 · UPC 843885051626
