Jeep Wrangler JK 4-Door 2007-2018, TeraFlex 6in Alpine RT6 Long Arm Suspension System, No Shocks
Jeep Wrangler JK 4-Door 2007-2018, TeraFlex 6in Alpine RT6 Long Arm Suspension System, No Shocks
Click to open expanded view

Jeep Wrangler JK 4-Door 2007-2018, TeraFlex 6in Alpine RT6 Long Arm Suspension System, No Shocks

Fits Jeep Wrangler JK 4-Door 2007-2018

SKU: 1336000
In stock and ready for shipping
Price
$6,330.92
Free shipping on orders of $70 or more to the lower 48 states (oversize items may carry a surcharge). Tracking emailed when it ships. 60-day returns on new, uninstalled parts in original packaging. RMA required, some items excluded.
Fitment questions? Call 800-300-6715 or email sales@trailrecon.com
Add To Wishlist
Vehicle Fitment
Install Instructions
Warning: California Residents

Share this product

Share Post Pin E-mail

Jeep Wrangler JK 4-Door 2007-2018, TeraFlex 6in Alpine RT6 Long Arm Suspension System, No Shocks Info & Specs

A 6 in lift tests everything on a JK: the steering geometry, the control arm angles and the frame. Pieced together, it can leave the Jeep with shimmy and bushing wear.

The TeraFlex Alpine RT6 pairs Alpine IR long control arms and brackets with front and rear HD forged adjustable track bars. It adds an HD drag link flip kit with a front track bar drop bracket and frame brace kit to correct steering geometry, eliminate front end shimmy and reinforce the frame. Independent Rotation bushings remove bushing bind through full travel, and the brackets move the frame-end mounts toward the factory orientation to reduce bushing stress during extreme droop.

Install the system, add shocks and align. It carries a lifetime warranty and clears 38 in tires.

Key Features

  • Alpine IR long control arms and brackets with Independent Rotation bushings
  • HD drag link flip kit with front track bar drop bracket and frame brace kit
  • Front and rear HD forged adjustable track bars
  • SpeedBump and progressive bump stop kit
  • Stainless steel braided brake lines, front and rear
  • Does not include shocks

Specifications

  • Lift height: 6 in
  • Max tire diameter: 38 in

Fitment

  • Jeep Wrangler JK Unlimited 4-Door 2007-2018

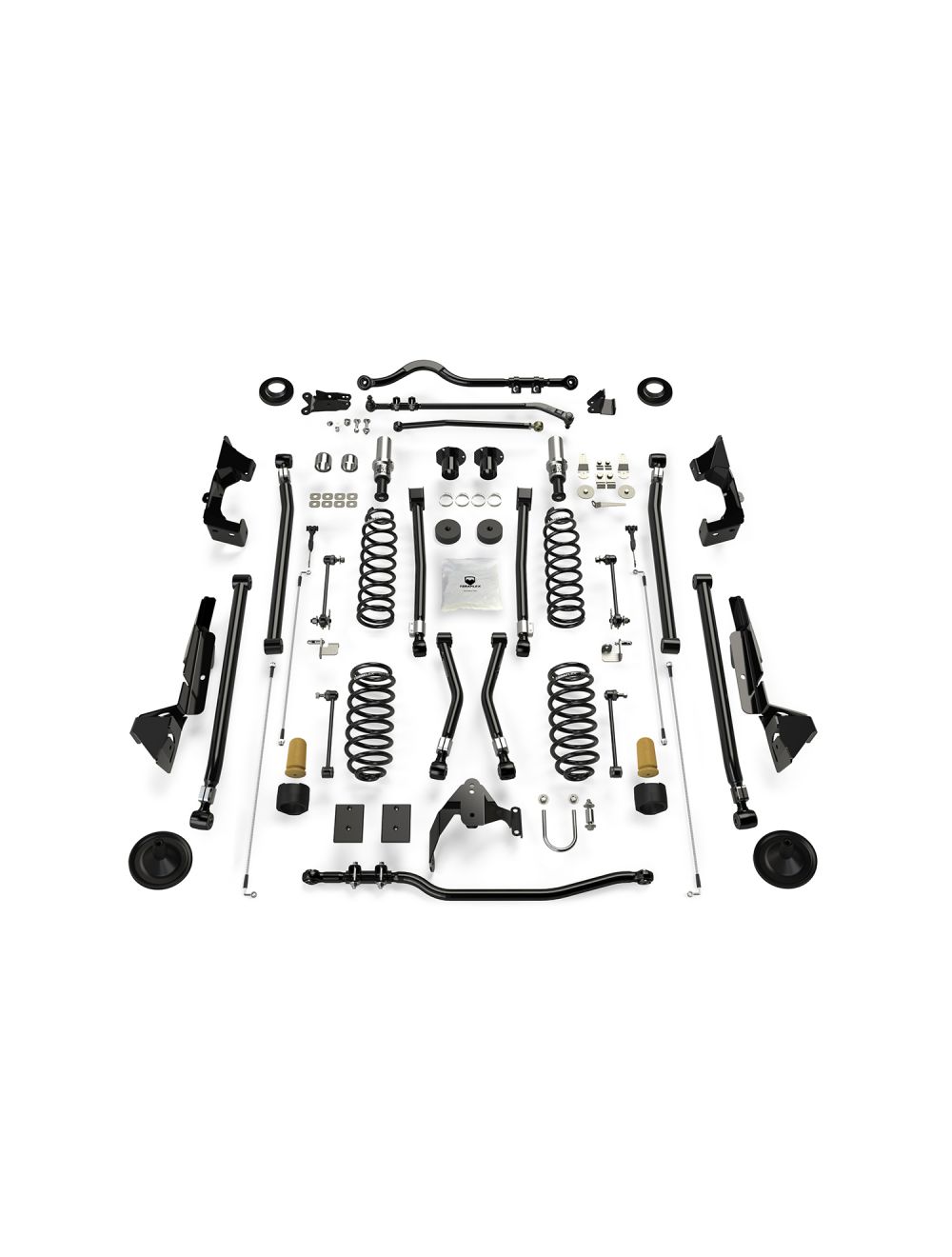

In the Box

  • 6 in lift coil spring kits, front and rear
  • 0.5 in lift coil spring spacers, front (2) and rear (2)
  • Alpine IR long control arm and bracket kit, 8-arm (3-6 in lift)
  • HD forged adjustable track bar, front (0-6 in lift)
  • HD forged adjustable track bar, rear (0-6 in lift)
  • HD drag link flip kit with front track bar drop bracket and frame brace kit
  • Front track bar bracket gusset
  • Rear track bar axle bracket kit (3-6 in lift)
  • SpeedBump and progressive bump stop kit, front and rear
  • 1.25 in SpeedBump bump stop strike pad kit, front lower
  • 0.75 in SpeedBump bump stop strike pad kit, rear lower
  • 12.25 in front sway bar quick disconnect kit (6 in lift)
  • 14.75 in rear sway bar link kit (6 in lift)
  • 26 in stainless steel braided brake line kit, front
  • 30 in stainless steel braided brake line kit, rear
  • Front brake line anchor kit
  • Exhaust spacer kit
  • All necessary hardware

Warranty

TeraFlex suspension systems carry a lifetime warranty.

Notes

  • Falcon shocks are sold separately.


MPN 1336000 · UPC 843885051466
