Jeep Wrangler JK 4-Door 2007-2018, TeraFlex 4in Alpine RT4 Long Arm Suspension System, No Shocks

Trails, rocks and highway miles all load the same suspension. A 4 in lift with the wrong geometry gives you one of those and costs you the other two.

The TeraFlex Alpine RT4 pairs Alpine IR long control arms and brackets with front and rear HD forged adjustable track bars for full suspension adjustability. The arms balance front caster and pinion angles and optimize rear pinion angle, anti-squat geometry and tire position at 3-6 in of lift. The Independent Rotation bushings remove bushing bind through full travel, and the brackets move the frame-end mounts back toward the factory orientation to reduce bushing stress during extreme droop.

SpeedBump stops, sway bar disconnects, braided brake lines and an exhaust spacer kit come with the system. Add shocks, align the axles and head out.

Key Features

• Alpine IR long control arms and brackets
• Independent Rotation bushings remove bushing bind through full suspension travel
• Front and rear HD forged adjustable track bars with rear track bar axle bracket
• SpeedBump and progressive bump stop kit
• Stainless steel braided brake lines, front and rear
• Does not include shocks

Specifications

• Lift height: 4 in
• Max tire diameter: 37 in

Fitment

• Jeep Wrangler JK Unlimited 4-Door 2007-2018

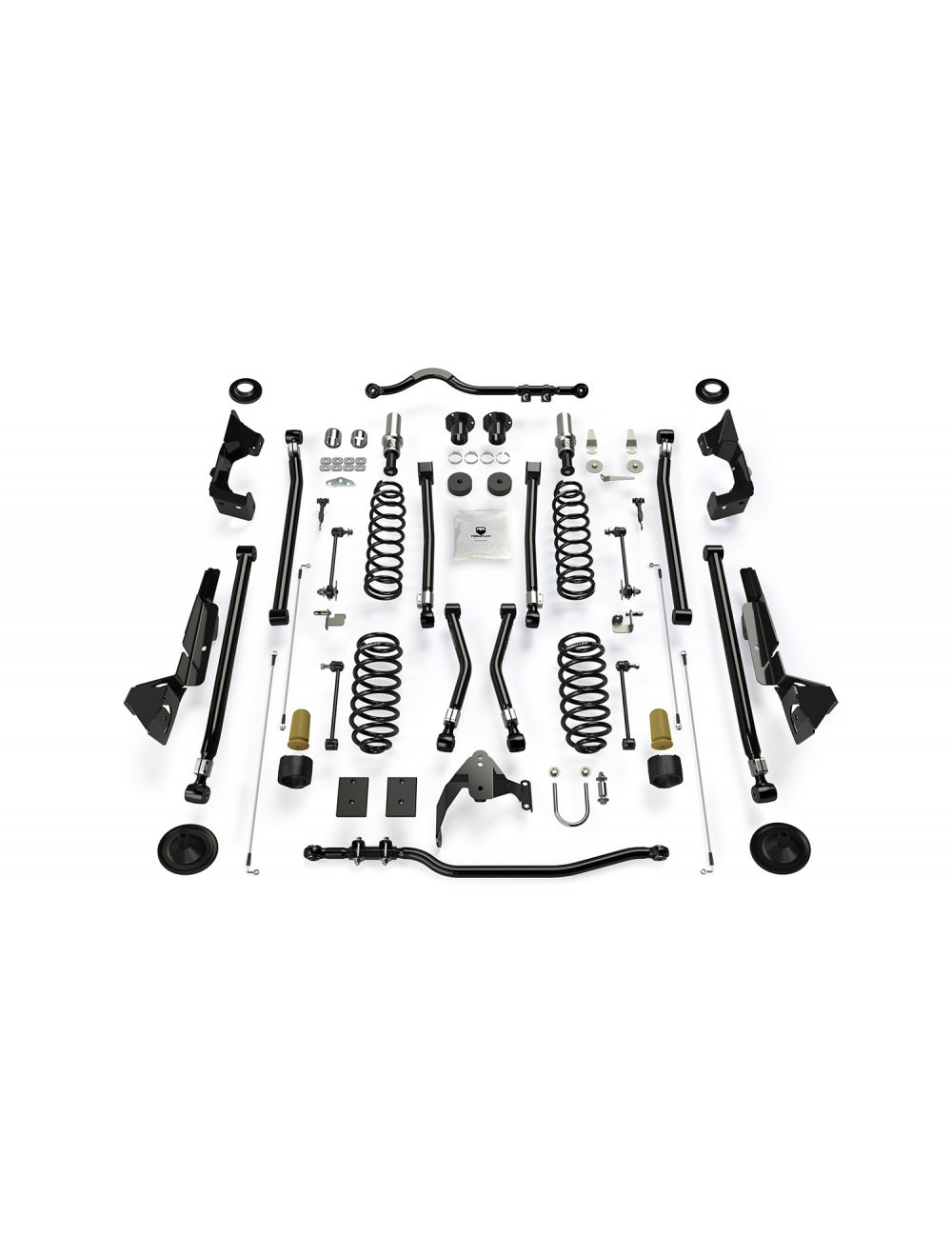

In the Box

• 4 in lift coil spring kits, front and rear
• 0.5 in lift coil spring spacers, front (2) and rear (2)
• Alpine IR long control arm and bracket kit, 8-arm (3-6 in lift)
• HD forged adjustable track bar, front (0-6 in lift)
• HD forged adjustable track bar, rear (0-6 in lift)
• Front track bar bracket gusset
• Rear track bar axle bracket kit (3-6 in lift)
• SpeedBump and progressive bump stop kit, front and rear
• 1.25 in SpeedBump bump stop strike pad kit, front lower
• 0.75 in SpeedBump bump stop strike pad kit, rear lower (3)
• 10 in front sway bar quick disconnect kit (3-4 in lift)
• 12.25 in rear sway bar link kit (3-4 in lift)
• 26 in stainless steel braided brake line kit, front
• 30 in stainless steel braided brake line kit, rear
• Front brake line anchor kit
• Exhaust spacer kit
• All necessary hardware

Notes

• Falcon shocks are sold separately.

MPN 1334000 · UPC 843885051428
