Jeep Wrangler JK 4-Door 2007-2018, TeraFlex 3in Alpine RT3 Short Arm Suspension System, No Shocks

A JK that does the commute on Monday and the rocks on Saturday has to ride quietly on one and flex freely on the other. Binding control arm bushings work against both. The TeraFlex 3in Alpine RT3 uses Alpine IR Short Control Arms with Independent Rotation bushings that remove bind through full travel, plus front SpeedBump bump stops for hard hits. HD forged adjustable track bars and a rear bracket correct axle position. Coil spring retainers, brake line anchors and an exhaust spacer round out the kit. Install it, add shocks, and the 4-door runs 35in tires with a smoother, quieter ride.

Key Features

• Alpine IR Short Control Arms (8-arm kit) with Independent Rotation (IR) bushings that remove bushing bind
• Front SpeedBump bump stops
• HD forged adjustable front track bar and rear track bar axle bracket
• Front sway bar quick disconnects and rear sway bar links
• Coil spring retainers, brake line anchor and relocation kits, exhaust spacer

Specifications

• Lift height: 3in
• Max tire diameter: 35in
• Shocks not included

Fitment

• Jeep Wrangler JK Unlimited 2007-2018 (4-door)

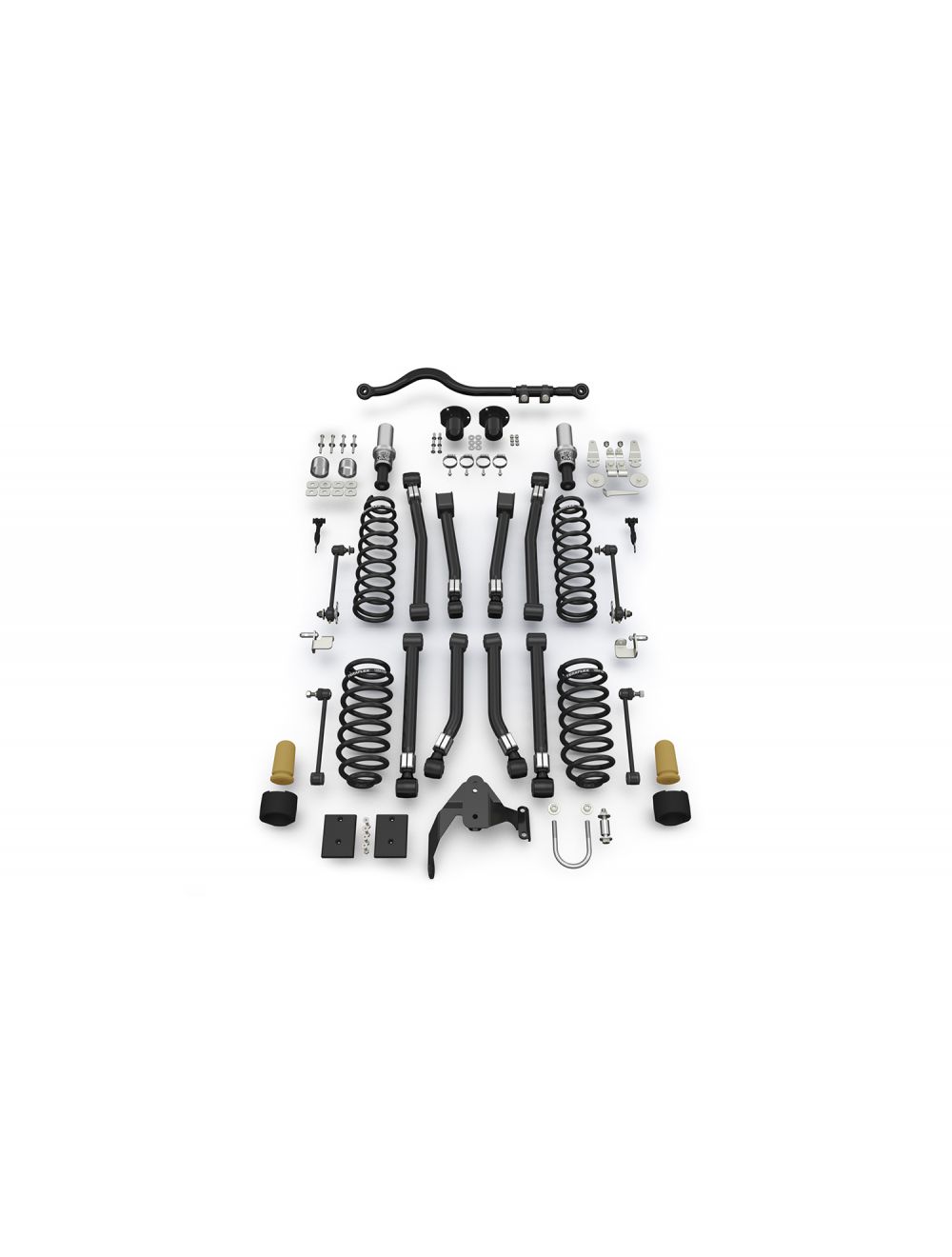

In the Box

• 3in lift coil spring kits, front and rear
• Alpine IR Short Control Arm Kit, 8-arm (2-4in lift)
• HD forged adjustable track bar, front (0-6in lift)
• Rear track bar axle bracket kit (2.5in lift)
• SpeedBump and progressive bump stop kit, front and rear
• 10in front sway bar quick disconnect kit
• 12.25in rear sway bar link kit
• Coil spring retainer kits, rear upper and rear lower
• Front brake line anchor kit
• Rear brake line relocation kit
• Exhaust spacer kit
• All necessary hardware

MPN 1333000 · UPC 843885051374
