Jeep Wrangler JK 4-Door 2007-2018, TeraFlex 3in Alpine CT3 Outback Overland Short Arm Suspension System, No Shocks

Expedition-style overland travel puts heavy gear on a JK, and ordinary lift springs sag under the load. The TeraFlex 3in Alpine CT3 Outback Overland builds on the standard Alpine CT3 with custom load-enhanced, heavy-duty rate Outback Lift Coil Springs that hold the lift height when the Jeep is loaded. A full set of adjustable Alpine Short Arms, HD forged adjustable track bars and a rear lower track bar bracket restore geometry. Falcon shocks are sold separately. Install the kit, add shocks, and the Unlimited runs 35in tires with a full load.

Key Features

• Custom load-enhanced, heavy-duty rate Outback Lift Coil Springs maintain lift height with heavy gear
• Adjustable Alpine Short Arms (8-arm kit, 2-4in lift)
• HD forged adjustable front track bar and rear lower track bar bracket
• SpeedBump and progressive bump stop kit, front and rear

Specifications

• Lift height: 3in
• Max tire diameter: 35in
• Shocks not included

Fitment

• Jeep Wrangler JK Unlimited 2007-2018 (4-door)

Falcon Series 3.3 Fast Adjust Piggyback Shocks and the Falcon Nexus EF 2.1 Fast Adjust Steering Stabilizer are available separately.

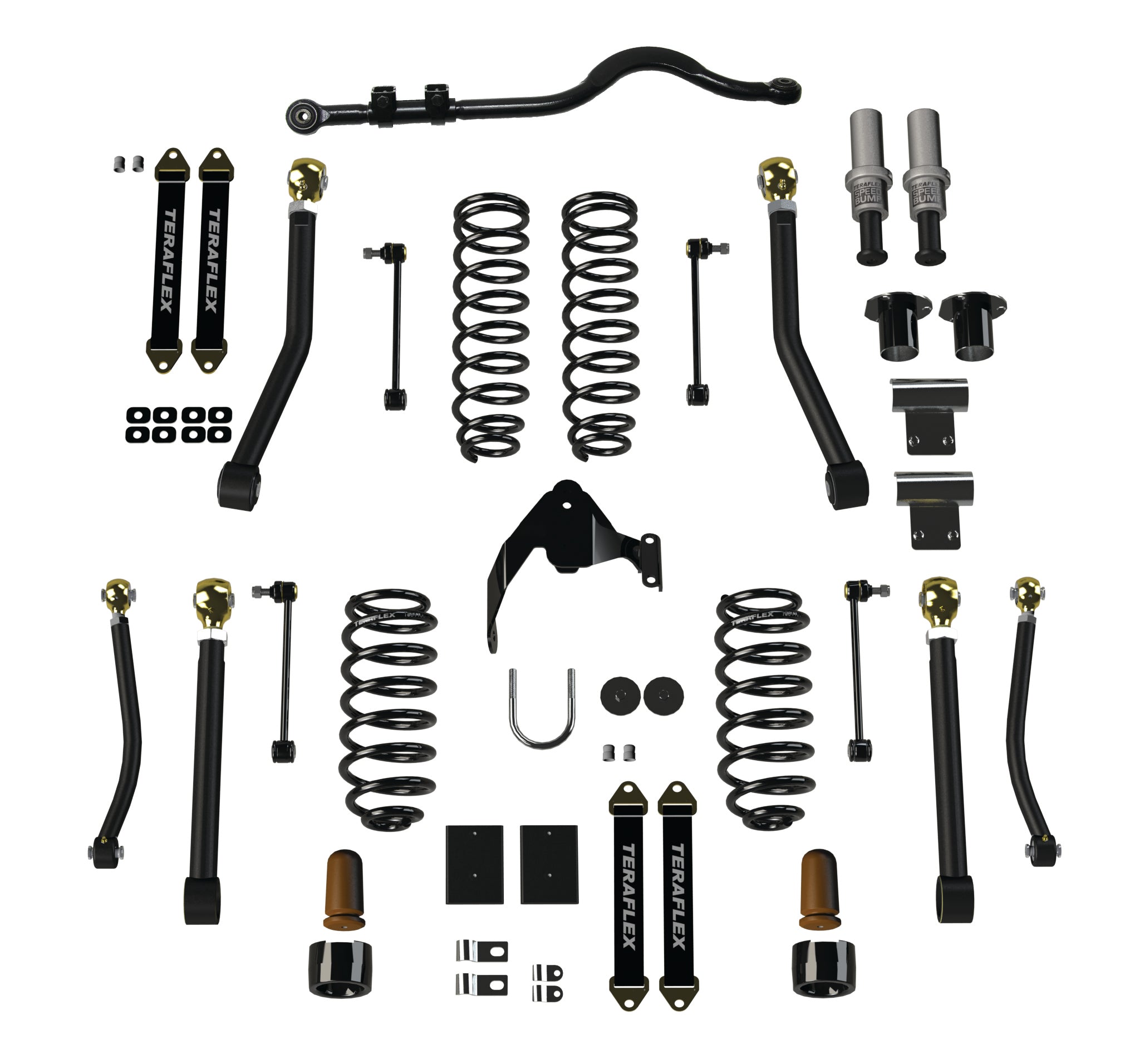

In the Box

• 3in lift Outback coil spring pair (JK4 front 1863202 and rear 1864202)
• Alpine Short Arm Kit, 8-arm (2-4in lift)
• HD forged adjustable track bar, front (0-6in lift)
• Track bar bracket kit, rear lower (2.5in lift)
• SpeedBump and progressive bump stop kit, front and rear
• 10in front sway bar quick disconnect kit
• 12.25in rear sway bar link kit
• Coil spring retainer kits, rear upper and rear lower
• Front brake line anchor kit
• Rear brake line relocation kit
• Exhaust spacer kit
• All necessary hardware

MPN 1167204 · UPC 843885032908
