Jeep Wrangler JK 2-Door 2007-2018, TeraFlex 4in Suspension System with 8 Alpine Short Control Arms, No Shocks

A 4 in lift pushes the control arms out of their working angles. A 2-door JK going after hard trails needs arms that can be adjusted back into position.

The TeraFlex 4 in Suspension System with 8 Alpine Short Control Arms brings 4 in coil springs, a complete set of adjustable Alpine short arms for 2-4 in of lift, an HD forged adjustable front track bar and a rear track bar axle bracket to optimize geometry. TeraFlex tunes roll center and load so the factory stability controls stay functional. An adjustable rear track bar is recommended.

Install the system, add shocks, and align the axles.

Key Features

• Complete set of eight adjustable Alpine short control arms
• HD forged adjustable front track bar
• Rear track bar axle bracket kit
• Stainless steel braided brake lines, front and rear
• Does not include shocks

Specifications

• Lift height: 4 in

Fitment

• Jeep Wrangler JK 2-Door 2007-2018

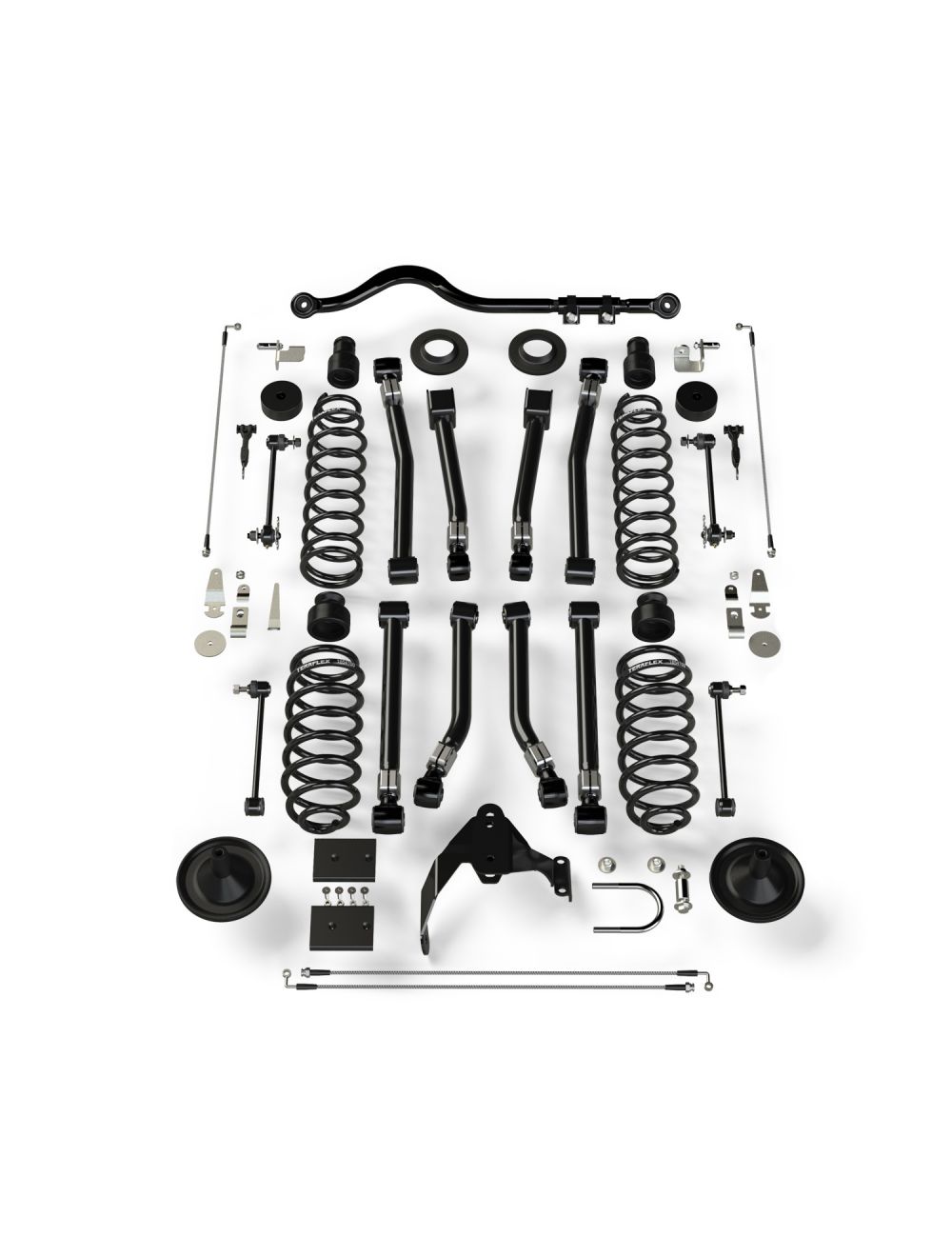

In the Box

• 4 in lift coil springs, front and rear
• 0.5 in lift coil spring spacers, front (2) and rear (2)
• Alpine short control arm kit, 8-arm (2-4 in lift)
• HD forged adjustable front track bar (0-6 in lift)
• Front track bar bracket gusset
• Rear track bar axle bracket kit (3-6 in lift)
• 2.75 in bump stop extension kit, front upper
• 1.25 in SpeedBump bump stop strike pad kit, front lower
• 2 in bump stop extension kit, rear upper (4-6 in lift)
• 0.75 in SpeedBump bump stop strike pad kit, rear lower
• 10 in front sway bar quick disconnect kit (3-4 in lift)
• 12.25 in rear sway bar link kit (3-4 in lift)
• Coil spring retainer kit, rear lower
• 26 in stainless steel braided brake line kit, front
• 30 in stainless steel braided brake line kit, rear
• Front brake line anchor kit
• Exhaust spacer kit
• All necessary hardware

Notes

• An adjustable rear track bar is recommended.
• Falcon shocks are sold separately.

MPN 1156403 · UPC 843885044284
