Jeep Wrangler JK 2-Door 2007-2018, TeraFlex 3in Alpine CT3 Outback Overland Short Arm Suspension System, No Shocks

Expedition-style travel loads a Jeep with fuel, water and gear for weeks. Standard springs sag under that weight, and the lift height disappears.

The TeraFlex Alpine CT3 Outback Overland adds custom load-enhanced heavy-duty rate lift coil springs to the Alpine CT3, which maintain the lift height when the Jeep is loaded. Adjustable Alpine short control arms balance front caster and pinion angles and optimize rear pinion angle, anti-squat geometry and tire position at 2-4 in of lift. An HD forged front track bar and a rear track bar axle bracket center the axles.

The system comes without shocks. Add shocks, align the axles and load up.

Key Features

• Load-enhanced heavy-duty rate lift coil springs maintain lift height with heavy gear
• Alpine short control arm kit, 8-arm
• HD forged adjustable front track bar and rear track bar axle bracket
• SpeedBump and progressive bump stop kit
• Does not include shocks

Specifications

• Lift height: 3 in
• Max tire diameter: 35 in

Fitment

• Jeep Wrangler JK 2-Door 2007-2018

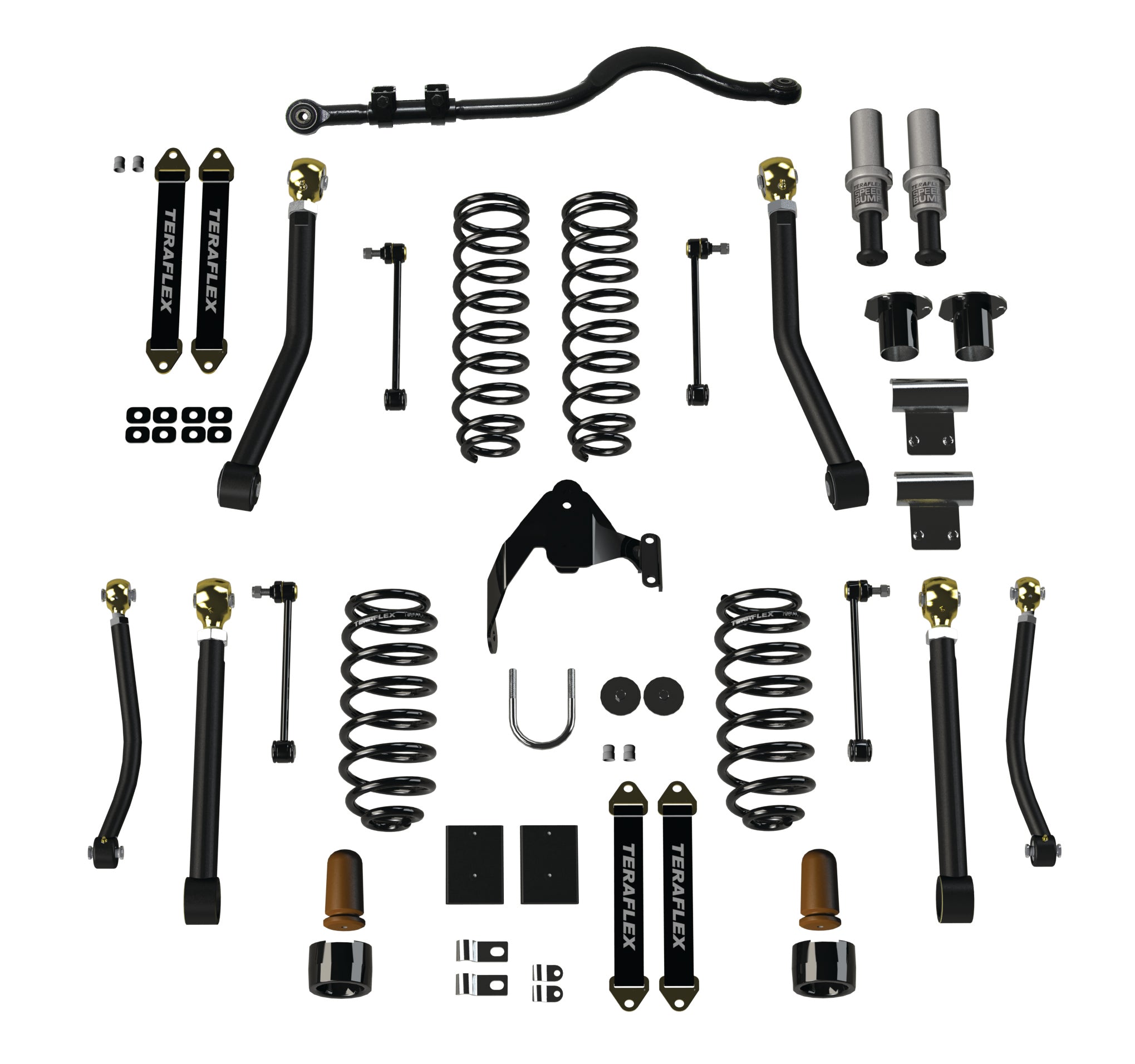

In the Box

• 3 in lift load-enhanced heavy-duty rate coil spring kits, front and rear
• Alpine short control arm kit, 8-arm (2-4 in lift)
• HD forged adjustable track bar, front (0-6 in lift)
• Rear track bar axle bracket kit (2.5 in lift)
• SpeedBump and progressive bump stop kit, front and rear
• 10 in front sway bar quick disconnect kit (3-4 in lift)
• 12.25 in rear sway bar link kit (3-4 in lift)
• Coil spring retainer kits, rear upper and rear lower
• Front brake line anchor kit
• Rear brake line relocation kit
• Exhaust spacer kit
• All necessary hardware

Notes

• Offered by TeraFlex without shocks. Falcon Series 3.3 Fast Adjust Piggyback shocks are sold separately.

MPN 1167202 · UPC 843885032748
