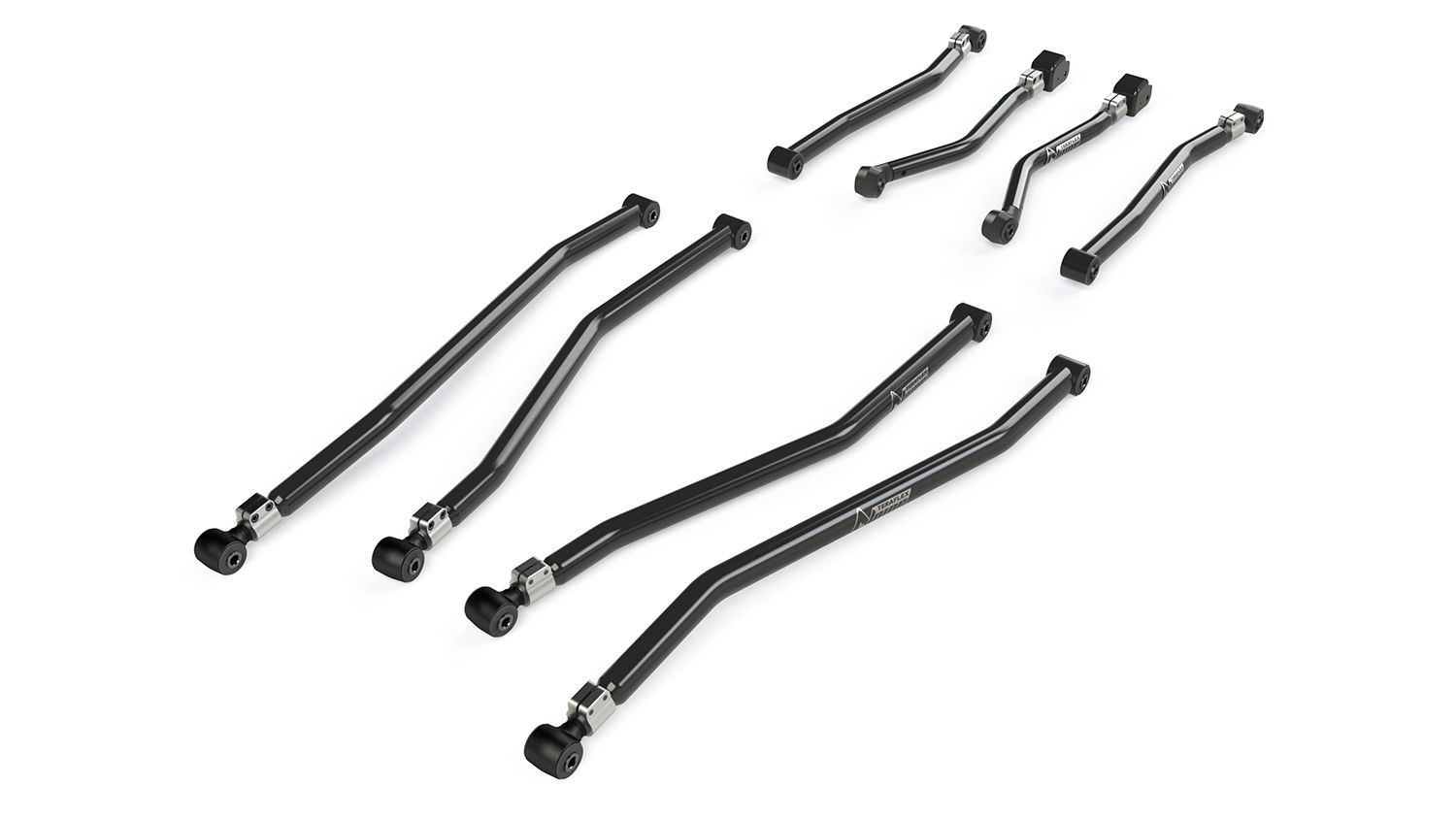

Jeep Gladiator JT 2020-2026, TeraFlex Alpine Long Arm Kit, 8-Arm, 3-6in Lift

A lifted Gladiator on stock-length arms loses alignment adjustment at every corner. The TeraFlex Alpine long arm kit replaces all eight control arms with adjustable long arms that have maintenance-free, factory-style bushings, which damp noise and vibration and keep ride quality up. The kit is four arm pairs: front upper, front lower, rear upper and rear lower. Pair it with the Long Arm Bracket Kit (JT 1968000, sold separately), bolt in the arms, and set alignment for the lift. It can be added to any existing suspension lift.

Key Features

• Complete alignment adjustability for 3-6in lifts
• Maintenance-free, factory-style bushings with NVH damping
• Four arm pairs for all eight control arm positions
• Can be added to any existing suspension lift

Specifications

• Lift height: 3-6in
• Front upper pair (1316520): tube 42 x 4mm; factory length 20-1/4in; minimum 27-3/4in; maximum 28-7/8in; axle bolt 12mm; frame bolt 14mm; axle bushing OEM; frame bushing 611012
• Front lower pair (1316500): tube 50 x 5mm; factory length 24in; minimum 30-7/8in; maximum 32in; bolts 16mm; bushings 09-01-201-001
• Rear upper pair (1417570): tube 50 x 5mm; factory length 16-3/8in; minimum 43-1/2in; maximum 44-5/8in; bolts 16mm; bushings 09-01-201-001
• Rear lower pair (1417560): tube 50 x 5mm; factory length 23-3/4in; minimum 47-3/4in; maximum 49in; bolts 16mm; bushings 09-01-201-001

Fitment

• Jeep Gladiator JT 2020-2026 (pickup)

In the Box

• Alpine long arm pair, front upper (1316520)
• Alpine long arm pair, front lower (1316500)
• Alpine long arm pair, rear upper (1417570)
• Alpine long arm pair, rear lower (1417560)

Notes

• Must be used with the Long Arm Bracket Kit (JT 1968000), sold separately.

MPN 1317005 · UPC 843885056485
