Jeep Gladiator JT 2020-2026, TeraFlex 4.5in Alpine CT4 Long Arm Extended-Travel Suspension System, No Shocks

Some Gladiator owners want an off-road suspension with room to adjust, flex and droop, and one that is still quiet on the highway. The details matter at 4.5in, where angles and travel limits get tight.

The TeraFlex 4.5in Alpine CT4 Long Arm Extended-Travel Suspension System is an all-inclusive package that starts with adjustable Alpine long arms and brackets and adds a rear extended-travel system. The arms balance caster, pinion angle, anti-squat geometry and tire position for 3-6in lifts, brackets restore near factory arm orientation to cut bushing stress during droop, and the extended-travel components safely provide 16in of rear travel.

Install the system, add Falcon Performance Shocks, and set the adjustable parts for trail work and the drive home.

Key Features

• Adjustable Alpine long arms and brackets with crossmember, 8-arm
• Front HD forged adjustable track bar with track bar brackets
• Forged ST rear sway bar and driveshaft lowering kit
• Extended-travel components for 16in of rear suspension travel
• Shocks not included

Specifications

• Lift height: 4.5in
• Rear suspension travel: 16in
• Max tire diameter, Sport and Overland fenders: 33in (with 2in front and 1in rear bump stops, strike pad extensions and shims)
• Max tire diameter, Sport and Overland fenders: 35in (with 3in front and 2.5in rear)
• Max tire diameter, Sport and Overland fenders: 37in (with 4in front and 3.5in rear)
• Max tire diameter, Rubicon and Mojave fenders: 35in (with 2in front and 1in rear)
• Max tire diameter, Rubicon and Mojave fenders: 37in (with 2in front and 2.5in rear)
• Max tire diameter, Rubicon and Mojave fenders: 39in (with 4in front and 3in rear)

Fitment

• Jeep Gladiator JT 2020-2026

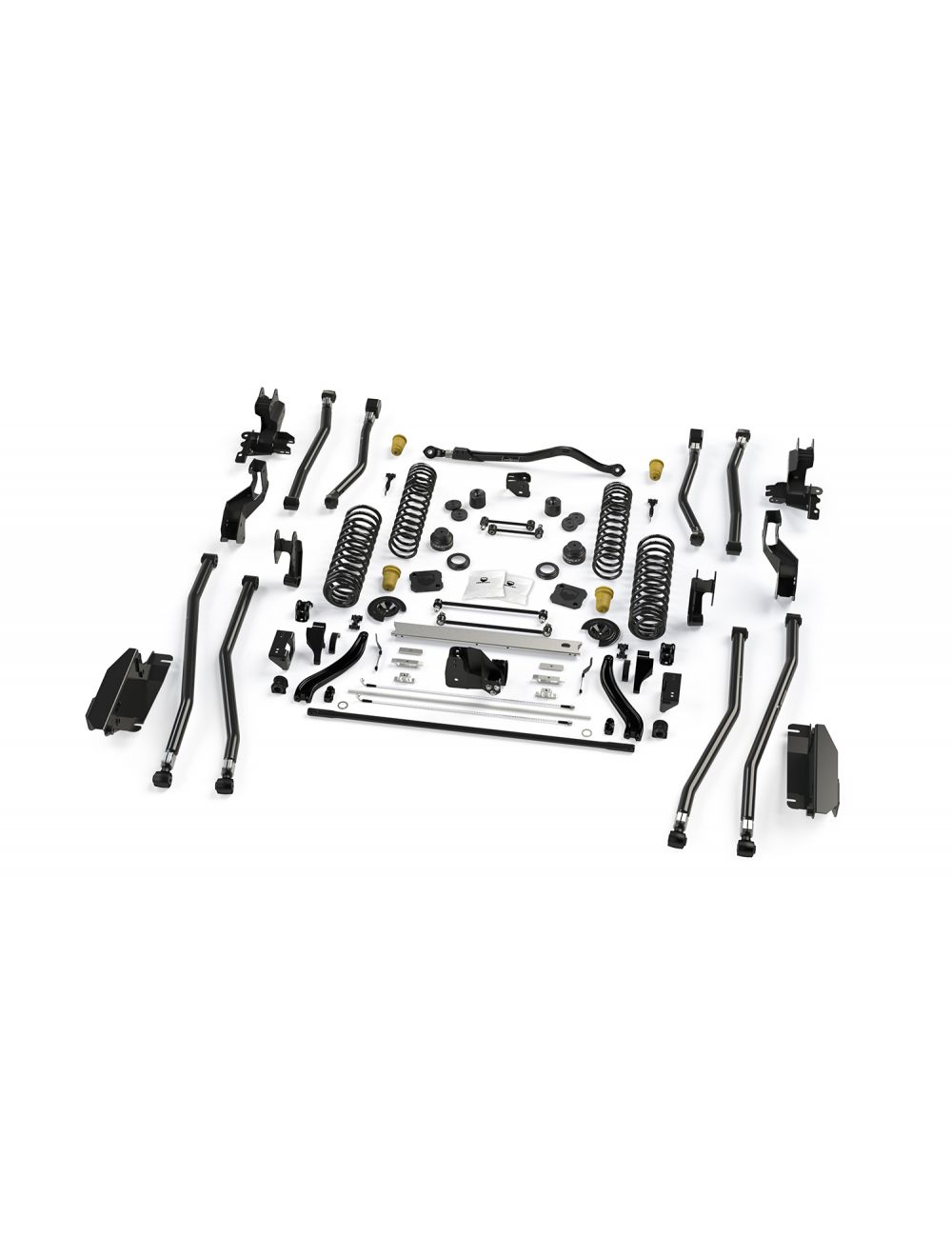

In the Box

• 4.5in lift coil spring pair (front 1874300, rear 1874400)
• Alpine long arm and bracket kit with crossmember, 8-arm, 3-6in lift (1317010)
• HD forged adjustable track bar, front, 0-6in lift (1753420)
• Track bar bracket kit (front lower 1953500, rear lower 1963600)
• Progressive bump stop kit, front and rear, 0-4.5in lift (1969200)
• 2in bump stop strike pad extension, front lower x 2 (12-01-109-200)
• 0.5in bump stop strike pad shim, front lower x 4 (12-02-109-050)
• 1.5in bump stop extension kit, rear upper x 2 (1969300)
• 0.5in bump stop shim kit, rear upper (1969400)
• 0.5in bump stop strike pad shim kit, rear lower (1969100)
• Front sway bar quick disconnect kit, 0-4.5in lift (1764000)
• Forged ST sway bar kit, rear, 2in or more lift (1774700)
• 1.5in driveshaft lowering kit, rear (4801000)
• Extended-travel accessory kit, rear, 3.5in or more lift (4834100)
• Coil spring retainer kit, rear upper and rear lower (4954000)
• Brake line anchor kit (front 1101255, rear 1101455)
• All necessary hardware

MPN 2024020 · UPC 843885070283
