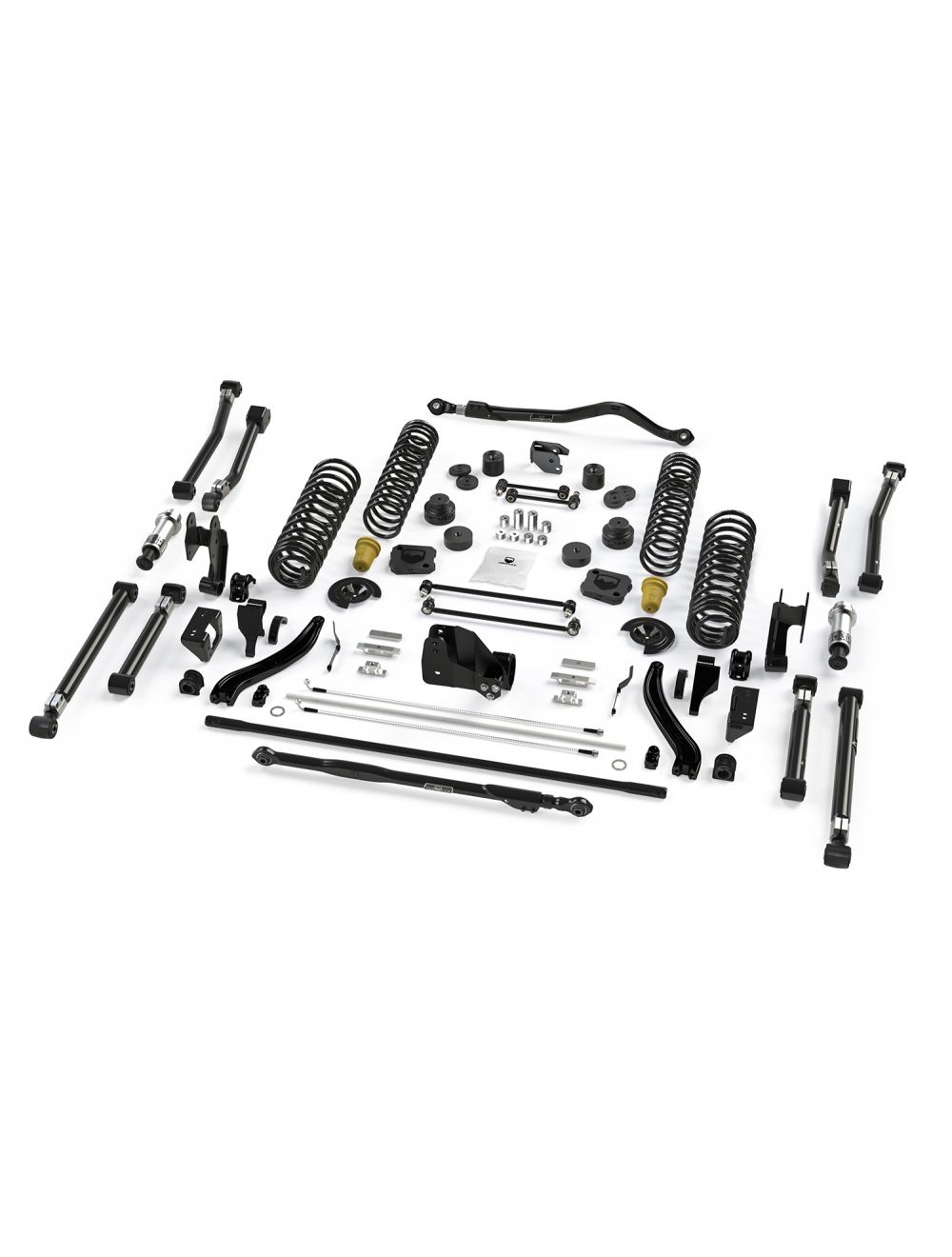

Jeep Gladiator JT 2020-2026, TeraFlex 3.5in Alpine RT3 Short Arm Extended-Travel Suspension System, No Shocks

A Gladiator at 3.5in of lift still needs the geometry corrected, and extra rear travel makes it a better trail truck. Getting both from separate parts means a long list and a risk of mismatched pieces.

The TeraFlex 3.5in Alpine RT3 Short Arm Extended-Travel Suspension System combines Alpine IR short arms with HD forged adjustable track bars and track bar brackets. The adjustable arms balance caster and pinion angle and optimize anti-squat geometry and tire position for lifts of 0-4.5in, IR bushings remove bind through full travel, and the components safely provide 16in of rear suspension travel.

Install the system, add Falcon Performance Shocks, set the adjustable parts, and the truck gains travel without giving up its street manners.

Key Features

• Alpine IR short arms, 8-arm
• HD forged adjustable front and rear track bars with track bar brackets
• SpeedBump and progressive bump stops, front and rear
• Extended-travel axle bracket kit for the rear upper control arms
• Shocks not included

Specifications

• Lift height: 3.5in
• Rear suspension travel: 16in
• Max tire diameter, Sport and Overland fenders: 33in (with 2in front and 1in rear bump stops, strike pad extensions and shims)
• Max tire diameter, Sport and Overland fenders: 35in (with 3in front and 2.5in rear)
• Max tire diameter, Rubicon and Mojave fenders: 35in (with 2in front and 1in rear)
• Max tire diameter, Rubicon and Mojave fenders: 37in (with 2in front and 2.5in rear)

Fitment

• Jeep Gladiator JT 2020-2026

In the Box

• 3.5in lift coil spring pair (front 1873000, rear 1873100)
• Alpine IR short arm kit, 8-arm, 0-4.5in lift (1417550)
• Extended-travel axle bracket kit, rear upper control arms, 1in or more lift (1938225)
• HD forged adjustable track bar, 0-6in lift (front 1753420, rear 1764420)
• Track bar bracket kit (front lower 1953250, rear lower 1963600)
• SpeedBump and progressive bump stop kit, front and rear, 2.5-3.5in lift (1968352)
• Front sway bar quick disconnect kit, 0-4.5in lift (1764000)
• Forged ST sway bar kit, rear, 2in or more lift (1774700)
• 1.5in driveshaft lowering kit, rear (4801000)
• Extended-travel accessory kit, rear, 3.5in or more lift (4834100)
• Coil spring retainer kit, rear upper and rear lower (4954000)
• Brake line anchor kit (front 1101255, rear 1101455)
• All necessary hardware

MPN 2033020 · UPC 843885070269
