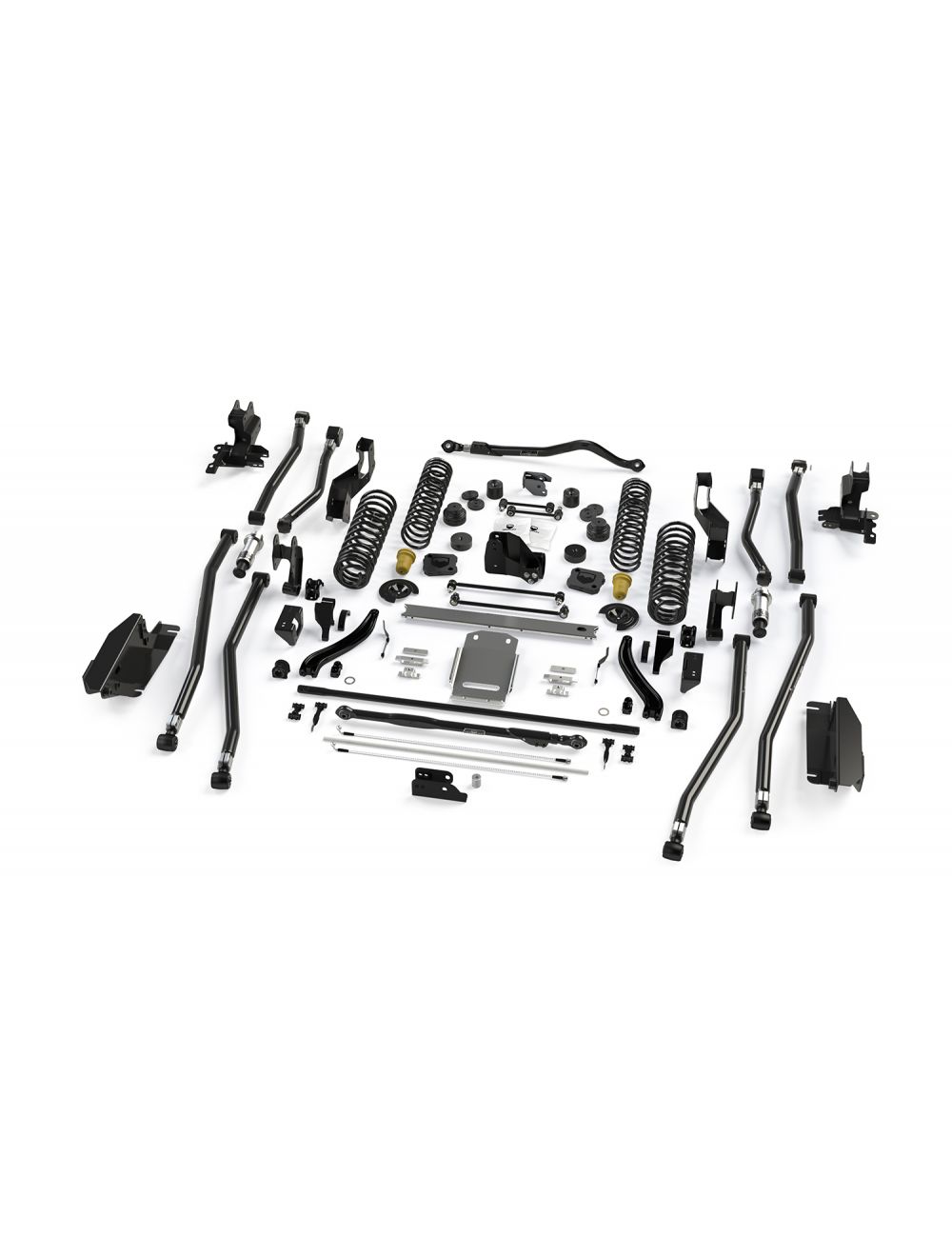

Jeep Gladiator JT 2020-2026, TeraFlex 3.5in Alpine RT3 Long Arm Extended-Travel Suspension System, No Shocks

A Gladiator that sees desert whoops and slow rock in the same weekend needs a suspension that handles both. A 3.5in lift only works if the arms, track bars and travel components were designed to go together.

The TeraFlex 3.5in Alpine RT3 Long Arm Extended-Travel Suspension System combines Alpine IR long arms and brackets with HD forged adjustable track bars and track bar brackets. The adjustable arms balance caster, pinion angle, anti-squat geometry and tire position, and the IR bushings remove bind through full travel. The extended-travel components safely provide 16in of rear suspension travel.

Bolt the system on, add Falcon Performance Shocks, set the adjustable parts, and the truck has the travel and the manners for both kinds of trips.

Key Features

• Alpine IR long arms and brackets with crossmember, 8-arm
• HD forged adjustable front and rear track bars with track bar brackets
• SpeedBump and progressive bump stops, front and rear
• Extended-travel components for 16in of rear suspension travel
• Shocks not included

Specifications

• Lift height: 3.5in
• Rear suspension travel: 16in
• Max tire diameter, Sport and Overland fenders: 33in (with 2in front and 1in rear bump stops, strike pad extensions and shims)
• Max tire diameter, Sport and Overland fenders: 35in (with 3in front and 2.5in rear)
• Max tire diameter, Rubicon and Mojave fenders: 35in (with 2in front and 1in rear)
• Max tire diameter, Rubicon and Mojave fenders: 37in (with 2in front and 2.5in rear)

Fitment

• Jeep Gladiator JT 2020-2026

In the Box

• 3.5in lift coil spring pair (front 1873000, rear 1873100)
• Alpine IR long arm and bracket kit with crossmember, 8-arm, 0-4.5in lift (1318010)
• HD forged adjustable track bar, 0-6in lift (front 1753420, rear 1764420)
• Track bar bracket kit (front lower 1953250, rear lower 1963600)
• SpeedBump and progressive bump stop kit, front and rear, 2.5-3.5in lift (1968352)
• Front sway bar quick disconnect kit, 0-4.5in lift (1764000)
• RockGuard transmission skid plate and long arm crossmember reinforcement (4609100)
• Forged ST sway bar kit, rear, 2in or more lift (1774700)
• 1.5in driveshaft lowering kit, rear (4801000)
• Extended-travel accessory kit, rear, 3.5in or more lift (4834100)
• Coil spring retainer kit, rear upper and rear lower (4954000)
• Brake line anchor kit (front 1101255, rear 1101455)
• All necessary hardware

MPN 2033120 · UPC 843885070252
