Jeep Gladiator JT 2020-2026, TeraFlex 3.5in Alpine CT3 Short Arm Extended-Travel Suspension System, No Shocks

A 3.5in lift opens a new world of tire sizes, and a Gladiator with more rear travel works better on the trail. Short arms keep the install straightforward while still letting the geometry be set.

The TeraFlex 3.5in Alpine CT3 Short Arm Extended-Travel Suspension System combines Alpine short arms, a front HD forged adjustable track bar and front and rear track bar brackets with extended-travel components. The adjustable arms balance caster and pinion angle and optimize anti-squat geometry and tire position for lifts of 0-4.5in, and the extended-travel parts safely provide 16in of rear suspension travel.

Install the system, add Falcon Performance Shocks, set the adjustable parts, and the truck rides comfortably during the week and works on the weekend.

Key Features

• Adjustable Alpine short arms, 8-arm
• Front HD forged adjustable track bar with front and rear track bar brackets
• Extended-travel axle bracket kit for the rear upper control arms
• Forged ST rear sway bar and driveshaft lowering kit
• Shocks not included

Specifications

• Lift height: 3.5in
• Rear suspension travel: 16in
• Max tire diameter, Sport and Overland fenders: 33in (with 2in front and 1in rear bump stops, strike pad extensions and shims)
• Max tire diameter, Sport and Overland fenders: 35in (with 3in front and 2.5in rear)
• Max tire diameter, Rubicon and Mojave fenders: 35in (with 2in front and 1in rear)
• Max tire diameter, Rubicon and Mojave fenders: 37in (with 2in front and 2.5in rear)

Fitment

• Jeep Gladiator JT 2020-2026

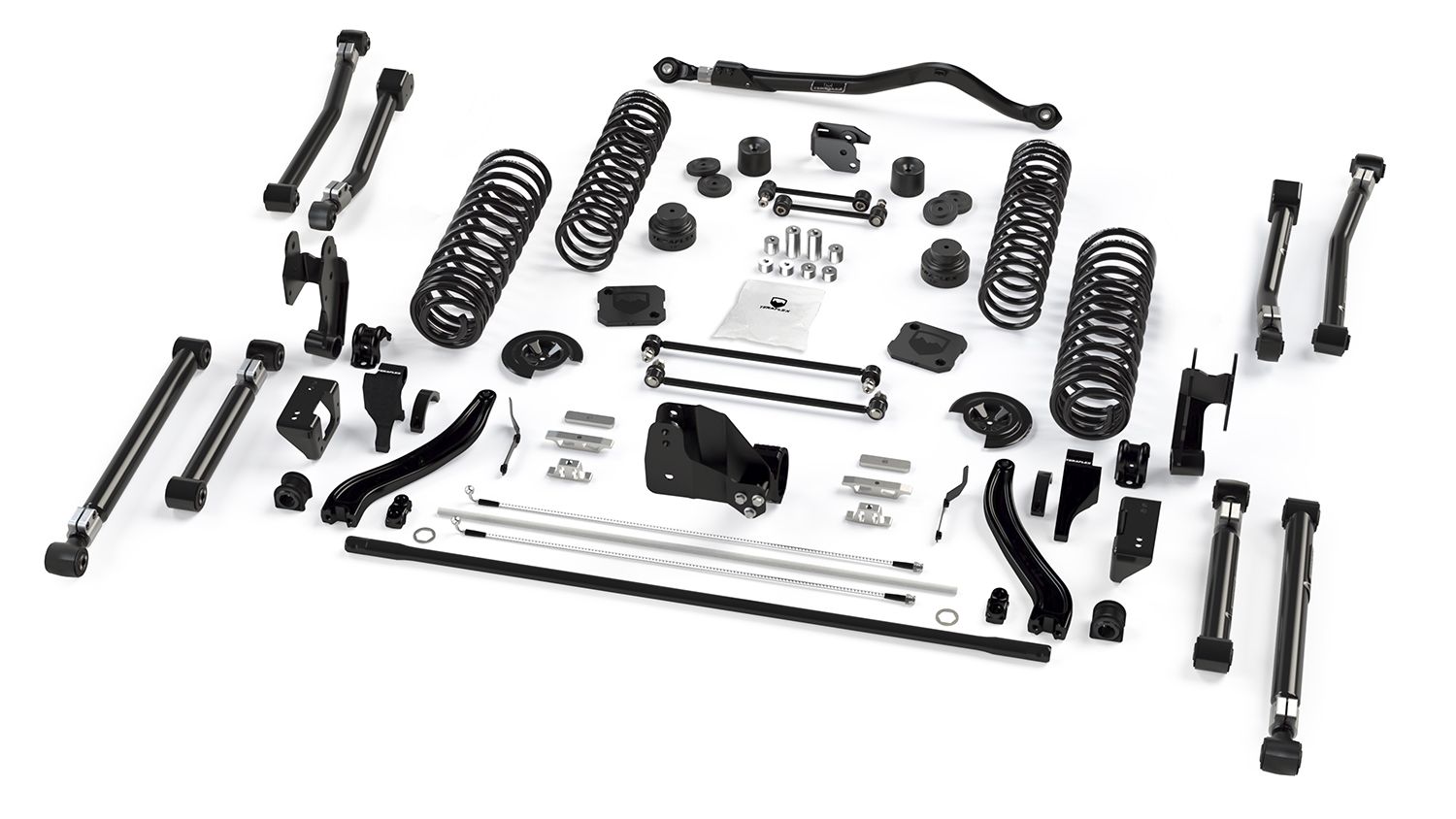

In the Box

• 3.5in lift coil spring pair (front 1873000, rear 1873100)
• Alpine short arm kit, 8-arm, 0-4.5in lift (1417500)
• Extended-travel axle bracket kit, rear upper control arms, 1in or more lift (1938225)
• HD forged adjustable track bar, front, 0-6in lift (1753420)
• Track bar bracket kit (front lower 1953250, rear lower 1963600)
• Progressive bump stop kit, front and rear, 0-4.5in lift (1969200)
• 2in bump stop strike pad extension, front lower x 2 (12-01-109-200)
• 0.5in bump stop strike pad shim, front lower x 4 (12-02-109-050)
• 1.5in bump stop extension kit, rear upper x 2 (1969300)
• 0.5in bump stop shim kit, rear upper (1969400)
• 0.5in bump stop strike pad shim kit, rear lower (1969100)
• Front sway bar quick disconnect kit, 0-4.5in lift (1764000)
• Forged ST sway bar kit, rear, 2in or more lift (1774700)
• 1.5in driveshaft lowering kit, rear (4801000)
• Extended-travel accessory kit, rear, 3.5in or more lift (4834100)
• Coil spring retainer kit, rear upper and rear lower (4954000)
• Brake line anchor kit (front 1101255, rear 1101455)
• All necessary hardware

MPN 2023020 · UPC 843885070313
