Jeep Gladiator JT 2020-2026, TeraFlex 2.5in Alpine CT2 Short Arm Suspension System, No Shocks

Owners who like to tune their suspension want more than a bolt-in lift. Caster, pinion angle and axle position all move with lift height, and fixed arms cannot follow.

The TeraFlex 2.5in Alpine CT2 Short Arm Suspension System was designed for the enthusiast who wants to fine-tune. Zero-maintenance Alpine short arms allow tuning of caster and pinion angle, centering of the axles in the wheel wells and wheelbase adjustment, and the front HD forged adjustable track bar improves steering response and reduces body roll.

Install the system, add Falcon Performance Shocks, set the adjustable parts, and the Gladiator is ready for the street and the trail.

Key Features

• Zero-maintenance adjustable Alpine short arms, 8-arm
• Front HD forged adjustable track bar
• Progressive bump stops and front sway bar quick disconnects
• Shocks not included; Falcon Performance Shocks are sold separately

Specifications

• Lift height: 2.5in
• Max tire diameter, Sport and Overland fenders: 33in (with 2in front and 1in rear bump stops, strike pad extensions and shims)

Fitment

• Jeep Gladiator JT 2020-2026

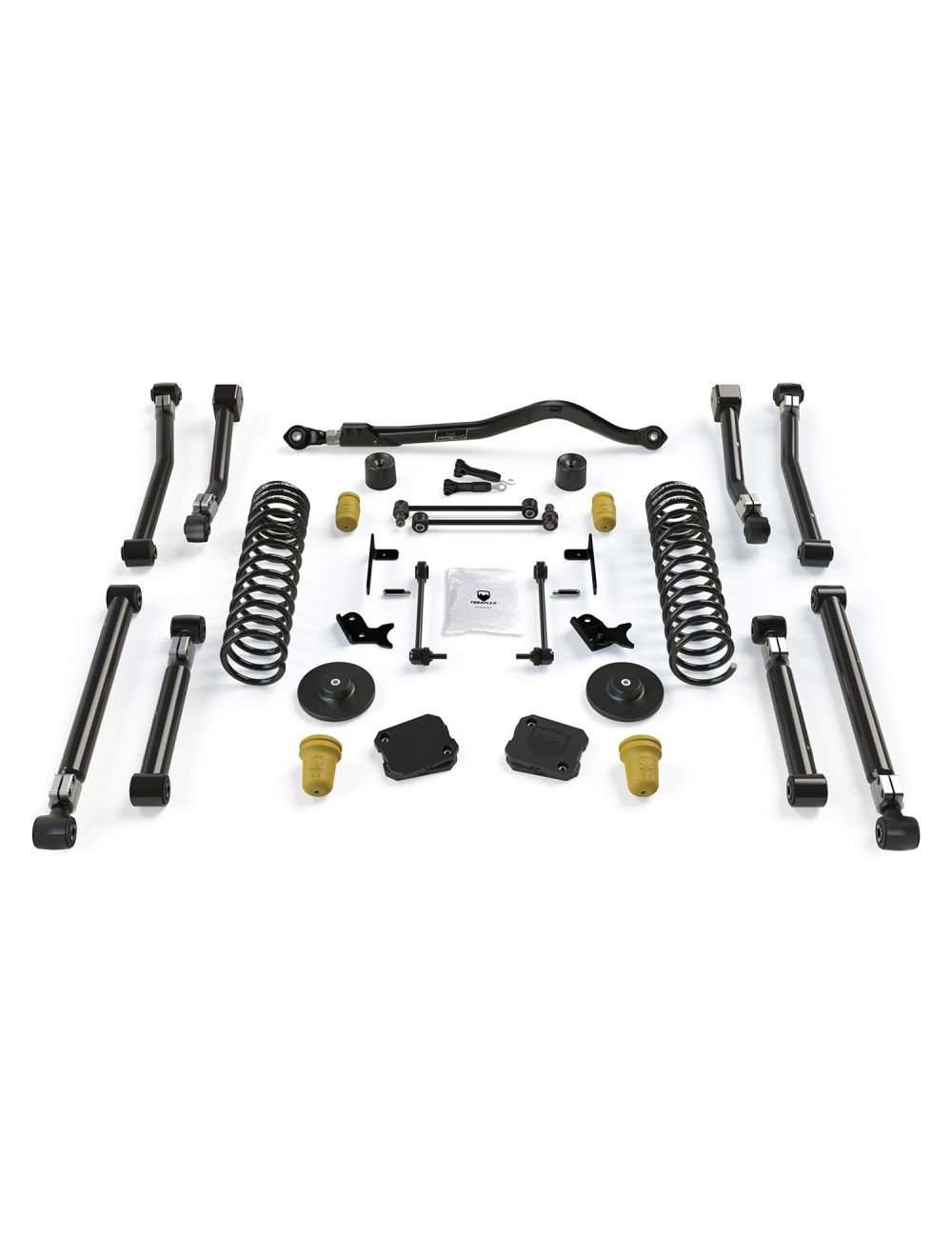

In the Box

• 2.5in lift coil spring pair, front (1872100)
• 0.5in lift coil spring spacer, rear x 2 (05-01-309-050)
• Alpine short arm kit, 8-arm, 0-4.5in lift (1417500)
• HD forged adjustable track bar, front, 0-6in lift (1753420)
• Progressive bump stop kit, front and rear, 0-4.5in lift (1969200)
• 2in bump stop strike pad extension, front lower x 2 (12-01-109-200)
• 0.5in bump stop strike pad shim kit, rear lower x 2 (1969100)
• Front sway bar quick disconnect kit, 0-4.5in lift (1764000)
• 13in rear sway bar link kit, 2.5-4.5in lift (1774300)
• Front brake line anchor kit (1101255)
• All necessary hardware

MPN 2022020 · UPC 843885070337
