Jeep Gladiator JT 2020-2026, MetalCloak DuroSpring Replacement Bump Stops, Full Set

A loaded Gladiator dropping off a ledge or hitting a washout can slam through its travel onto the factory bump stops, and that hit carries into the frame and the cab.

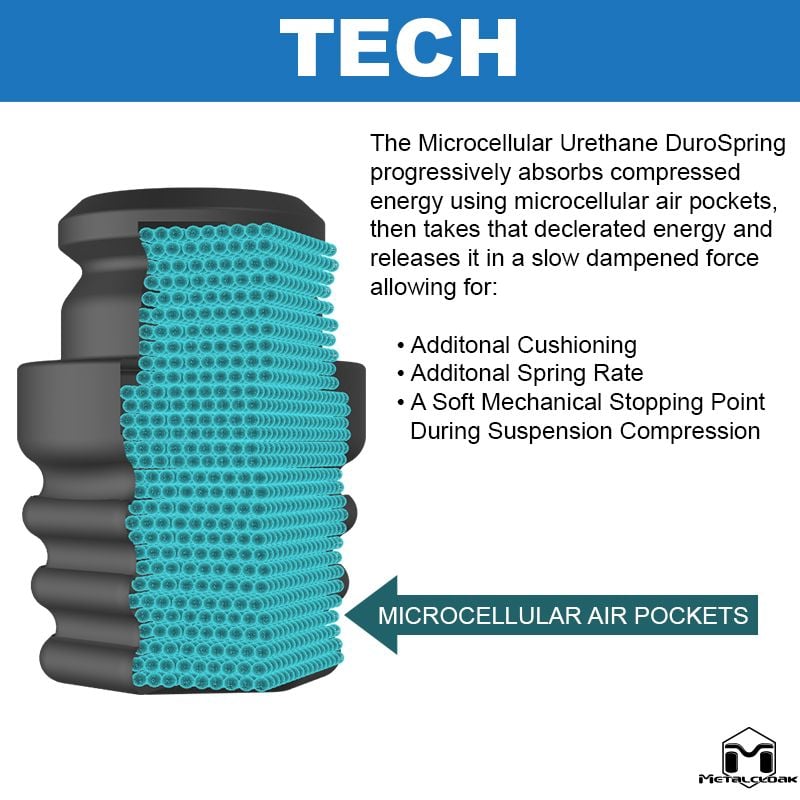

MetalCloak DuroSpring Replacement Bump Stops swap all four upper stops for micro-cellular urethane that cushions compression, adds spring rate at the end of travel and returns with a dampened rebound. With no fluids, gas charge or sliding parts, there is nothing to maintain. Fit them in the factory jounce locations and the bottom of the stroke becomes a controlled stop instead of a jolt.

Key Features

• Full set: two upper front and two upper rear bump stops
• Micro-cellular urethane adds dampening and spring rate
• Soft mechanical stop at full compression
• No maintenance, no fluids or gas to service
• Installs in the factory jounce locations

Specifications

• Material: Micro-cellular urethane
• Height: About 2in taller than stock, compresses to 3/4in under impact
• Install difficulty: Easy
• Install time: 1 hour
• Body modification: None

Fitment

• Jeep Gladiator JT 2020-2026

In the Box

• Upper front DuroSpring bump stops (2)
• Upper rear DuroSpring bump stops (2)

Notes

• Works from stock height up through lifted builds.
• On the Gladiator Mojave the rear stops fit, but the front stops do not because the Mojave front hydraulic bump stops use a different mount.
• MetalCloak recommends a suspension specialist align the Jeep after MetalCloak suspension is installed.

MPN 7225 · UPC 810191171812
