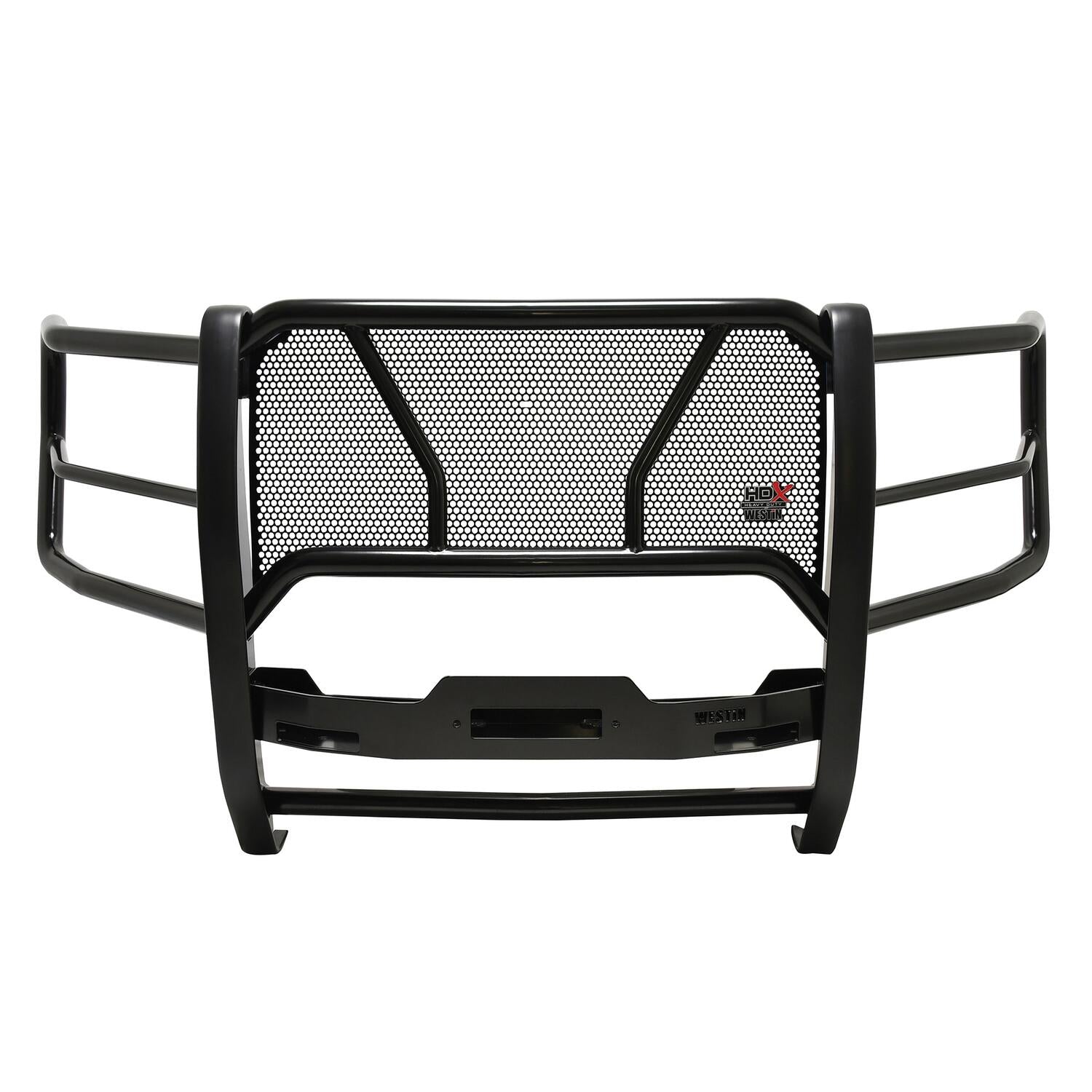

Ford F-250/F-350 Super Duty 2020-2022, Westin HDX Winch Mount Grille Guard, Black

A winch on the front of an F-250 or F-350 is only as good as the mount that holds it. A mount that flexes under load makes a recovery a gamble. The Westin HDX Winch Mount Grille Guard pairs a 1-piece grille guard with a pre-drilled winch tray. The tray brackets mount directly to the vehicle frame, and the winch trays are tested to a minimum straight line pull of 16,500 lbs. It takes most medium frame winches of 8,000 to 12,000 lbs, up to 10.25in tall. Mount the tray, set the winch and the Super Duty is ready for a recovery.

Key Features

• Pre-drilled winch tray with a low profile MAX winch tray faceplate where applicable
• Tray brackets mount directly to the vehicle frame
• Winch trays tested to a minimum straight line pull of 16,500 lbs
• Fits most medium frame 8,000 to 12,000 lbs winches, up to 10.25in tall
• 1-piece grille guard with welded headlight guards
• 2in tube full wraparound wings
• Full punch plate grille
• Mount kit and hardware included

Specifications

• Material: Steel
• Finish: Black powder coat
• Winch depth: 6.5in
• Motor length: 7in
• Line pull rating: Up to 12,000 lbs

Fitment

• Ford F-250 Super Duty 2020-2022
• Ford F-350 Super Duty 2020-2022

Front mount, 6.5in winch depth and 7in motor length.

In the Box

• Grille guard shell (57-94015A)
• MAX winch tray (46-23905)
• Mount kit and hardware

Notes

• Factory tow hooks cannot be reused
• Requires minor trimming of the tow hook pockets
• Requires trimming the second air dam or bumper valance
• Not compatible with the Ford Performance by WARN Super Duty Winch Kit
• Will interfere with the camera and parking sensor if equipped
• A set of 2 light clamps is sold separately

MPN 57-94015 · UPC 00707742100240
