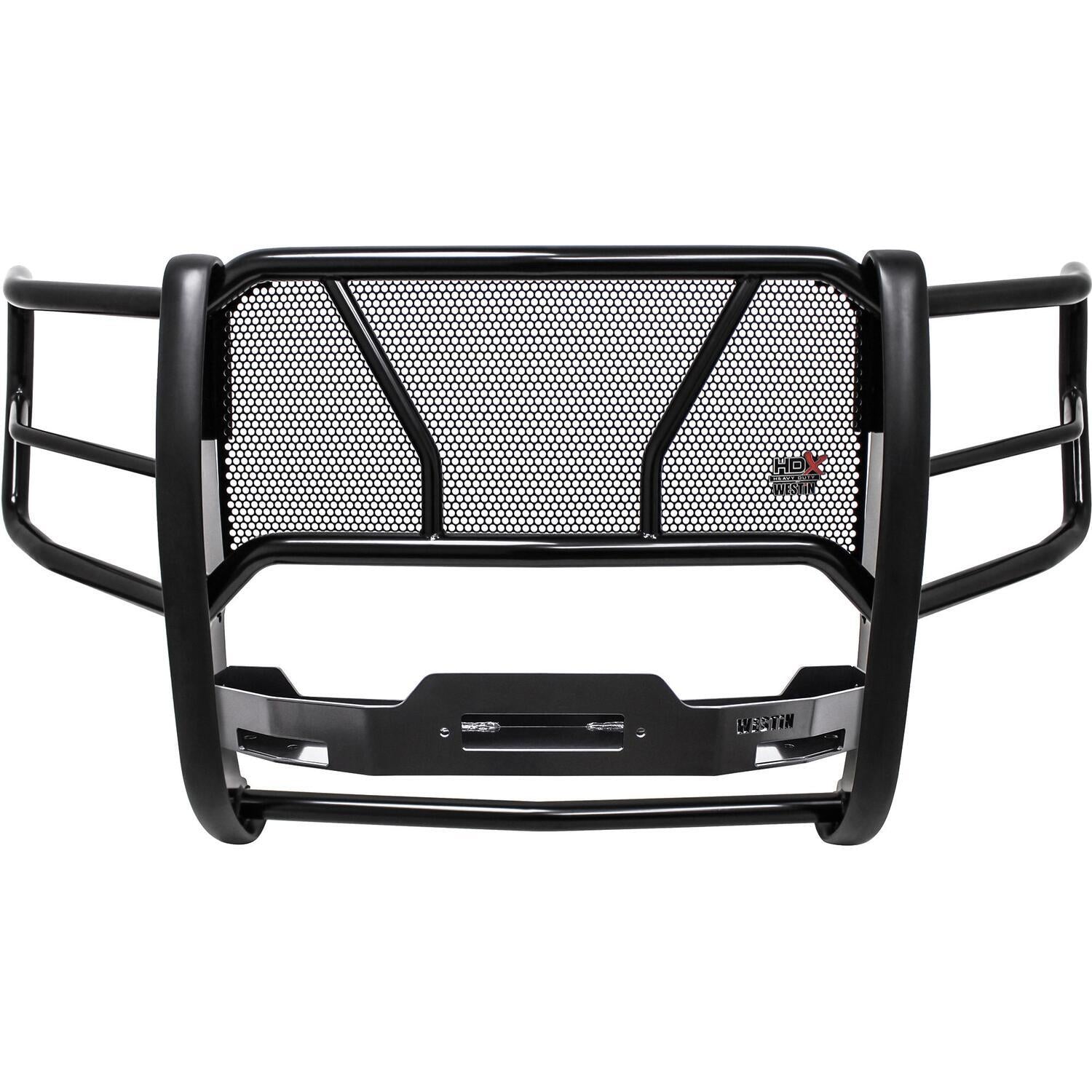

Ford F-250/F-350 Super Duty 2017-2019, Westin HDX Winch Mount Grille Guard, Black

Recovery gear belongs at the front of the Ford F-250 or F-350 Super Duty, where a winch can pull straight. A bare bumper offers neither a mounting point for the winch nor protection for the grille and headlights. The Westin HDX Winch Mount Grille Guard is a 1-piece welded steel guard with wrap-around wings of 2in tube, welded headlight guards and a full punch plate grille. The Max Winch Tray is included, and its brackets mount directly to the vehicle frame. The mount kit and hardware are supplied. Fit the tray to the frame, set the guard in place, mount the winch and tighten everything down. Winch mount and front end protection come in one setup, so the Ford F-250 or F-350 Super Duty is ready when a recovery is needed.

Key Features

• 1-piece welded steel grille guard with welded headlight guards
• Full wrap-around wings of 2in diameter tube
• Full punch plate grille
• Max Winch Tray included, with tray brackets that mount directly to the vehicle frame
• Mount kit and hardware included

Specifications

• Material: Steel
• Finish: Black powder coat
• Winch depth: 6.5in
• Motor length: 7in
• Tube diameter: 2in
• Position: Front

Fitment

• Ford F-250 Super Duty 2017-2019
• Ford F-350 Super Duty 2017-2019

In the Box

• Grille guard shell (57-93905A)
• Max Winch Tray (46-23905)
• Mount kit and hardware

Notes

• Factory tow hooks cannot be reused
• Requires minor trimming of the tow hook pockets, trimming of the lower grille and trimming of the second air dam or bumper valance
• May interfere with adaptive cruise control, cameras, parking sensors and forward collision warning systems with grille mounted laser control sensors if equipped

MPN 57-93905 · UPC 00707742072837
