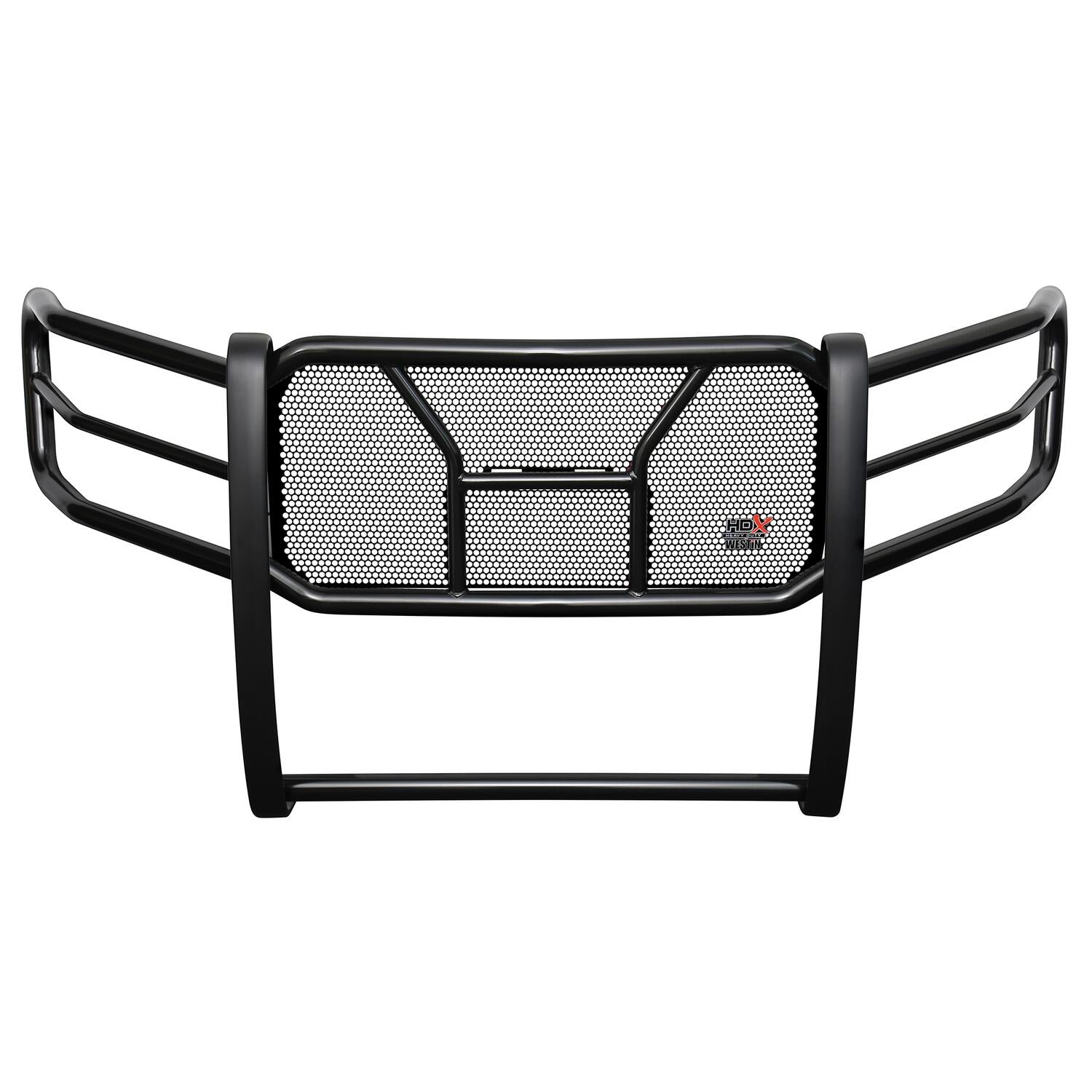

Ford F-150 2015-2020 With Front Camera, Westin HDX Modular Grille Guard, 3-Piece, Black

A camera-equipped F-150 still needs protection at the front end, and the guard has to fit around the factory parts. The Westin HDX Modular Grille Guard is a three-piece steel design with bolt-on headlight guards, a full punch plate grille and 2in tube wraparound wings, with rubber push pad strips on the uprights. Mount kit and hardware are included. Pull the factory tow hooks if equipped, trim the tow hook pockets, and the guard bolts to the frame. The truck keeps its front end covered through hauling and trail days.

Key Features

• Three-piece design with bolt-on headlight guards
• Full punch plate grille
• 2in tube full wraparound wings
• 1 1/4in tube support wings on some applications
• 2 3/4in wide rubber push pad strips on the uprights
• Electrostatic base coat under the black powder coat
• Set of 2 optional light clamps sold separately

Specifications

• Material: Steel
• Color: Semi gloss black
• Finish: Powder coated
• Tube outside diameter: 2in
• Construction: 3-piece, modular

Fitment

• Ford F-150 2015-2020 (King Ranch, Lariat, Limited, Police Responder, Raptor, SSV, XL, XLT, with front camera)

In the Box

• Grille guard, 3-piece
• Mount kit and hardware

Notes

• Excludes vehicles with forward collision warning systems that feature grille mounted laser control sensors.
• Factory tow hooks cannot be reused. Requires minor trimming of the tow hook pockets and removal of the tow hooks if equipped.
• Will interfere with adaptive cruise (speed) control and with sensors if equipped.

MPN 57-23935 · UPC 00707742112878
