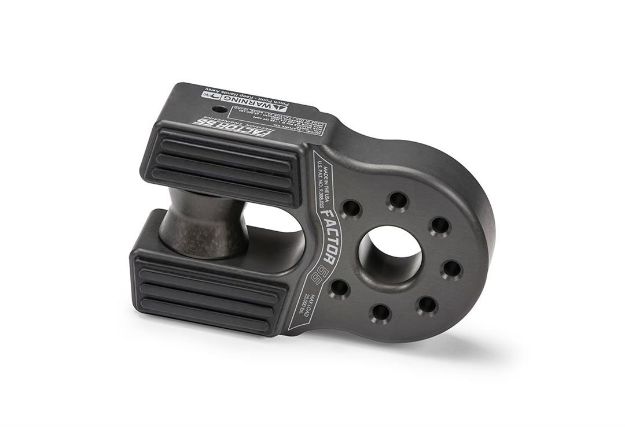

Factor 55 FlatLink XXL Shackle Mount Info & Specs
FlatLink is Factor 55’s original folding winch shackle bracket. Features include a precision shackle mounting hole and a folding design giving you a lower profile, and allowing for a better approach angle than ProLink. FlatLink doesn’t require splicing and is compatible with steel or synthetic ropes. It attaches with a super-strong aerospace-grade double-shear titanium pin and snap ring, which is easily installed in minutes. The EPDM rubber guards protect alloy fairleads, prevents rattling, and is securely attached to the FlatLink with four barbed tips.
Features:
• Made in USA
• Replace conventional winch hooks with a safer more secure shackle/D-ring
• Safer recoveries through the practice of Closed System Winching
• Lightweight – Precision CNC machined 6000 series Military Grade Aluminum
• No splicing required – double shear pin design
• Designed for both steel cable and synthetic winch rope eyes
• Equipped with a shear pin load centering spool for wire rope applications
• Foldable and stows rattle free against fairleads
• Integrated EPDM rubber pads for fairlead protection
• Fits common 7/8 and 1” screw pin shackle sizes (1.0 and 1.125 pin diameters)
• For synthetic rope diameters up to 5/8 and wire rope up to 1”
• Available in the Military Specification Hard Anodizing (Mil-A-8625 F Type III) Gray
• 7/8” diameter double shear pin
• Max Rated Load: 26,000 pounds
• Ultimate Strength: 68,000 pounds
• Weight: 51oz
Dimensions:
- 7.5 × 5 × 3in
- 3.4lbs
