Diode Dynamics D-Switch 8-Channel Switch Panel

A rig with a bumper bar, rock lights and a light bar usually ends up with a row of switches, each doing one job. The Diode Dynamics D-Switch replaces them with an 8-channel solid-state switch panel that groups and configures multiple outputs per button, with a dedicated backlight channel and strobe and dimming functions on each channel.

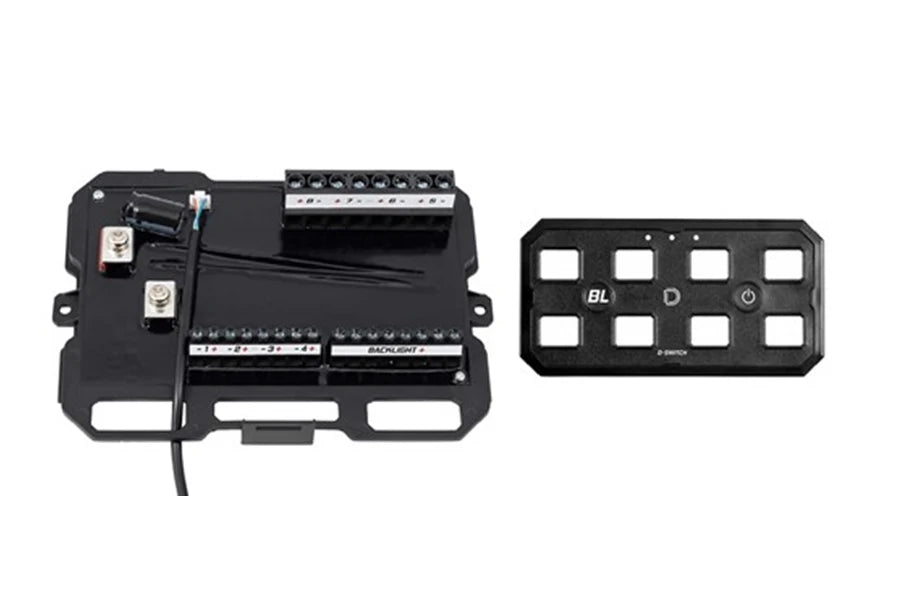

The hub sits in an IP67-rated aluminum housing and has four 30A outputs and four 15A outputs with resettable fuses. A Bluetooth app for iOS and Android programs the panel, and three trigger wires and a night mode sensor tie it to the vehicle's own signals.

Mount the hub and controller, connect the outputs, and set up the buttons in the app. One panel then runs the whole lighting setup.

Key Features

• 8-channel solid-state switch panel
• Group and control multiple outputs with a single button
• Dedicated backlight channel for accent lighting
• Strobe and dimming functions per channel
• Bluetooth app for iOS and Android
• Four 30A outputs and four 15A outputs with resettable fuses
• Three trigger wires for OEM-like control through vehicle signals
• Night mode sensor
• Solid-state, fully encapsulated design

Specifications

• Housing material: Aluminum
• Illuminated: Yes
• Operating voltage: 9-16 V
• Ingress rating: IP67 Weatherproof
• Operating temperature: -40C to 120C (-40F to 250F)
• Switch type: Push
• Wiring harness included: Yes
• Shipping weight: 5.6 lb
• Shipping carton: 14 x 11 x 4 in

In the Box

• 1 switch panel hub
• 1 switch panel controller
• 1 controller universal mounting bracket
• 1 10-foot controller wiring harness
• 1 trigger wires and night mode wiring harness
• 1 3-foot 4AWG battery cable
• 1 3-foot 4AWG ground cable
• 2 sets of button stickers
• 5 T-taps
• 6 zip ties
• Double-sided tape
• Installation hardware
• Installation and programming guide

Warranty

3-year warranty.

MPN DD8373 · UPC 195995139153
