Chevrolet Silverado 1500 2016-2026 & Ram 1500 2009-2024, Westin Sportsman X Grille Guard LED Light Bar Kit, Black

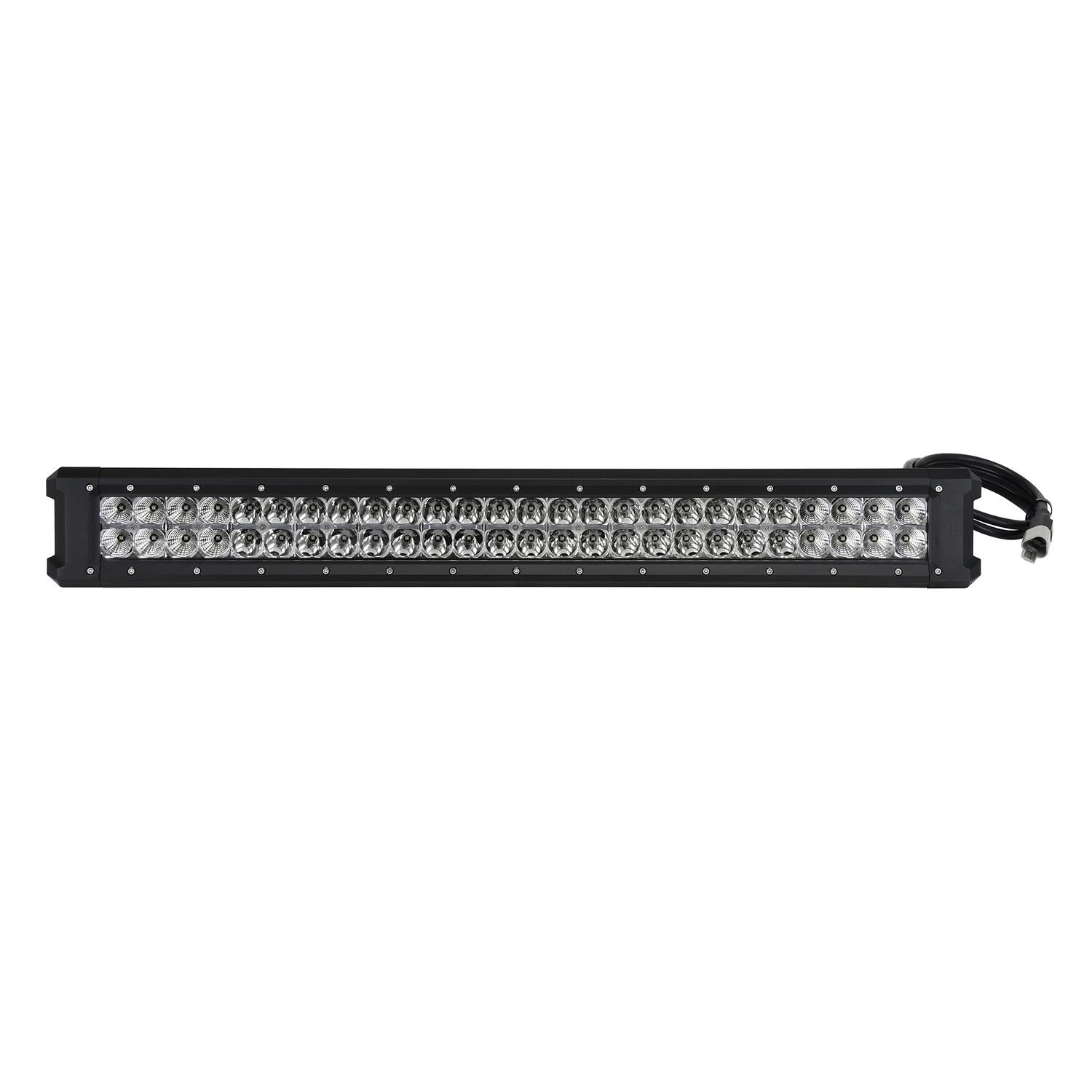

Dark trails and back roads ask for more light than factory headlamps throw, and a grille guard with no place to mount a light bar leaves the front of a Silverado or Ram doing less than it could. The Westin Sportsman X Grille Guard LED Light Bar Kit is a double row LED bar made for the center opening of the Sportsman X guard. Spot and flood reflectors share one housing, and daytime running lights are built in. The kit includes the wiring harness with connector, switch, relay and in-line fuse, plus the mounting hardware. Mount the bar, run the harness, wire the switch and the road ahead is lit.

Key Features

• Low profile double row LED light bar with daytime running lights
• Combo beam provides both spot and flood beam reflectors
• Dust and moisture resistant lens
• Extruded aluminum housing
• 3W LED chips
• Includes wiring harness with connector, switch, relay and in-line fuse and mounting hardware

Specifications

• Power output: 156 Watts
• Raw lumens: 14,040
• Housing: Extruded aluminum
• Color: Black
• Finish: Powder coated

Fitment

• Chevrolet Silverado 1500 2016-2026 (excludes 2022 and newer trucks with the new front end, non-LTD, that have block heaters or fog lights; requires minor trimming of the tow hook pockets, and trimming of the lower valance area for 2022 and newer; will interfere with the block heater plug)
• Chevrolet Silverado 1500 LD 2019
• Chevrolet Silverado 1500 LTD 2022 (will interfere with the block heater plug)
• Chevrolet Silverado 2500 HD 2020-2023 (requires trimming of the lower bumper trim)
• Chevrolet Silverado 3500 HD 2020-2023 (requires trimming of the lower bumper trim)
• Dodge Ram 1500 2009-2010 (Laramie, SLT, ST, Sport, TRX and TRX4; requires minor trimming of the tow hook pockets and lower bumper trim, and removal of the tow hooks if equipped)
• Ram 1500 2011-2024 (Big Horn, Express, HFE, Laramie, Laramie Limited and Laramie Longhorn; requires minor trimming of the tow hook pockets and lower bumper trim, and removal of the tow hooks if equipped; some applications exclude ECO Diesel, cannot reuse the factory tow hooks and will interfere with adaptive cruise control and grille mounted forward collision warning sensors if equipped)
• Ram 1500 Classic 2019-2024 (Big Horn, Express, Laramie, Lone Star, SLT, Special Service, Tradesman and Warlock; requires minor trimming of the tow hook pockets and lower bumper trim, and removal of the tow hooks if equipped)
• Ram 2500 2019-2024 (factory tow hooks cannot be reused; requires minor trimming of the tow hook pockets; will interfere with sensors)
• Ram 3500 2019-2024 (factory tow hooks cannot be reused; requires minor trimming of the tow hook pockets; will interfere with sensors)

In the Box

• Light bar
• Wiring harness with connector, switch, relay and in-line fuse
• Mounting hardware

Notes

• The Sportsman X Grille Guard is sold separately.

MPN 40-23005 · UPC 00707742095232
