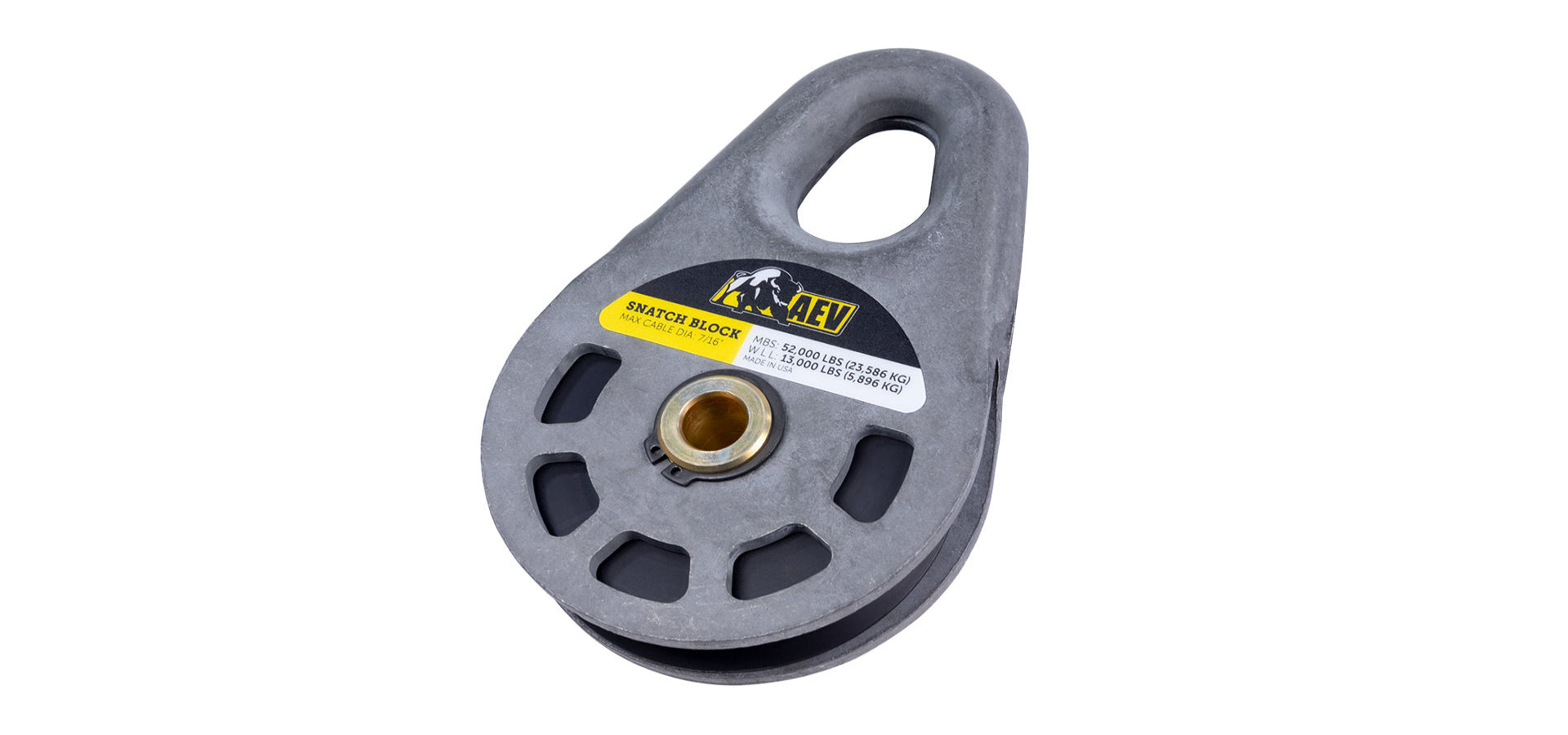

AEV Recovery Snatch Block Info & Specs

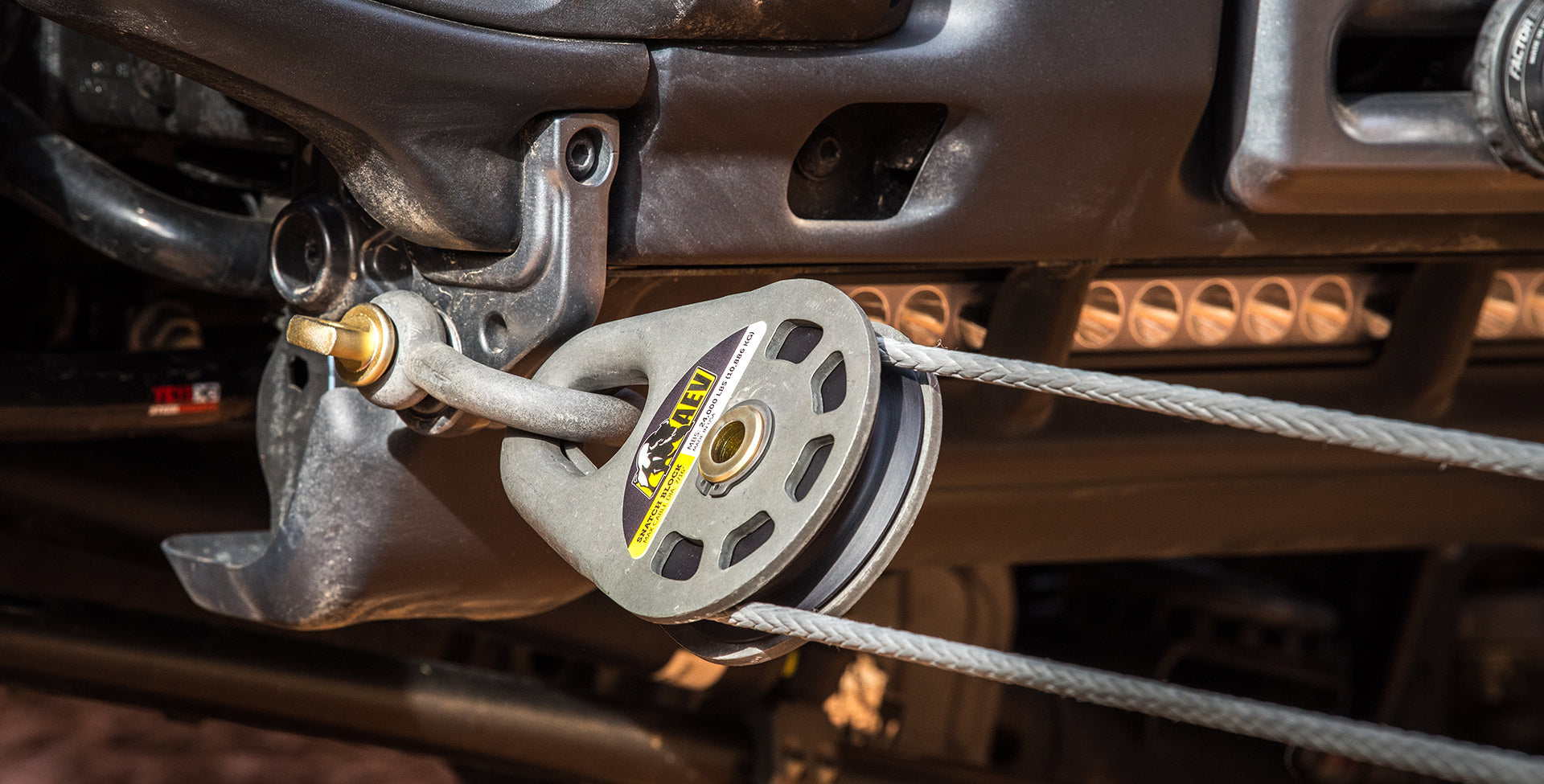

Sooner or later a rig gets stuck badly enough that the load is more than the winch can pull on a single line. The AEV Recovery Snatch Block lets the winch run a double-line pull, which doubles its pulling power and halves the line speed for a slower, more controlled recovery. It carries an ArmorGalv coating, a self-lubricating Oilite bushing with a polymer pulley, and an inward-rolled eyelet that engages ropes and soft shackles cleanly. Rig it to an anchor, run the line back to the vehicle, and winch out at a controlled pace.
Key Features
- Doubles winch pulling power on a double-line pull, at half the line speed
- ArmorGalv coating
- Self-lubricating Oilite bushing with polymer pulley
- Inward-rolled eyelet for ropes and soft shackles
- Works with steel winch cable or synthetic winch line
- Marked with minimum breaking strength and working load limit
- Made in the USA
Specifications
- Pulley diameter: 5in
- Side plates: 6.4mm stamped steel
- Maximum cable diameter: 7/16in
- Working load limit: 13,000 lb
- Minimum breaking strength: 52,000 lb
- Coating: ArmorGalv
- Bushing: Oilite
- Pulley material: Polymer
MPN 80808011AA · UPC 810092170013
